Overview

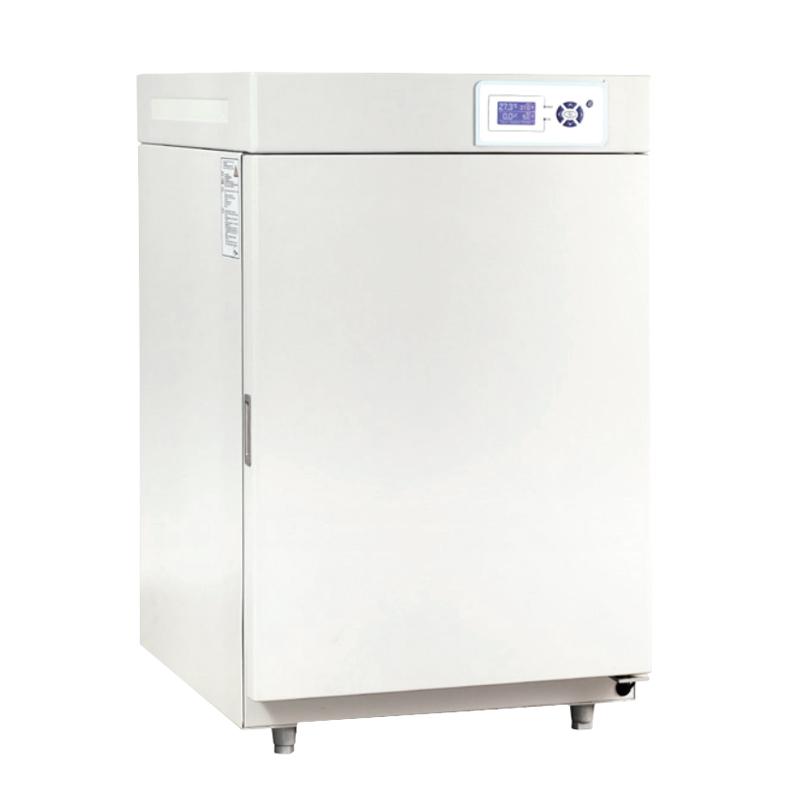

The new generation BPN series Co2 incubator is an upgraded product of the original HH · CP series, using infrared CO2 Sensor, the control accuracy is accurate and stable, and it is not affected by temperature and Humidity. The product model is BPN-80CH (UV), the volume is 80L, and it is suitable for experimental environments such as cell foster.
Features
1. Humanized design: stackable placement (two layers), microcomputer LCD controller, stainless steel liner and shelf, four corners and half arc transition, shelf bracket free loading and unloading, easy to clean.
2. Infrared Sensor: The monitoring speed of CO2 gas is fast, and it is not affected by the fluctuation of external temperature and Humidity, and keeps the CO2 concentration in the box stable and uniform.
3. Microbial Effective Filter: The CO2 inlet is equipped with a Filter, which has a penetrating efficiency of 99.99% for particles with a diameter of ≥ 0.3 μm, effectively penetrating bacteria and dust.
4. Automatic control of circulating fan speed: The fan speed is automatically adjusted, and the wind speed is reduced when thermostatic to avoid sample volatilization.
5. Door heating system: Glass door heating inside the box door to prevent condensation and microbial contamination.
6. Safety function: independent temperature limit alarm system (optional), low temperature, high temperature, over-temperature alarm and door opening time is too long alarm.
7. UV sterilization system: The UV sterilization lamp is located at the top and back of the box, which is regularly disinfected to kill circulating air and humidifying pan water steam floating bacteria to prevent pollution.
Principle
Infrared CO2 Sensor is used to monitor the carbon dioxide concentration in the box with high control accuracy and is not affected by temperature Humidity. The circulating fan speed is automatically adjusted to reduce the wind speed in the thermostatic state to protect the sample. The door heating system prevents the condensation of the Glass door, and the ultraviolet sterilization system regularly disinfects the internal environment to ensure the stability of the fostering process and prevent pollution.
Applications
Cell fostering, microbial experiments, biomedical research
Steps
1. Connect the power supply and turn on the device.
2. Set the temperature (Temperature range RT + 5~ 55 ℃) and CO2 concentration (control range 0~ 20%).
3. Install or adjust shelves as needed.
4. Start the UV sterilization system for regular disinfection.
5. Monitor the operation of the equipment and pay attention to the alarm function.
Notice
• Ambient Temperature should be kept at + 5~ 30 ℃, Humidity natural evaporation ≥ 90%.
• Avoid opening doors frequently to maintain stable CO2 concentration (recovery time open for 30 seconds to 5% ≤ 3 minutes).
• Regularly check the Microbial Filter and UV Sterilization System to ensure effective operation.
• When using optional accessories such as independent temperature limiting controllers, pay attention to safety settings.
• When cleaning the liner, remove the shelf bracket to avoid damage to the equipment.
