Overview

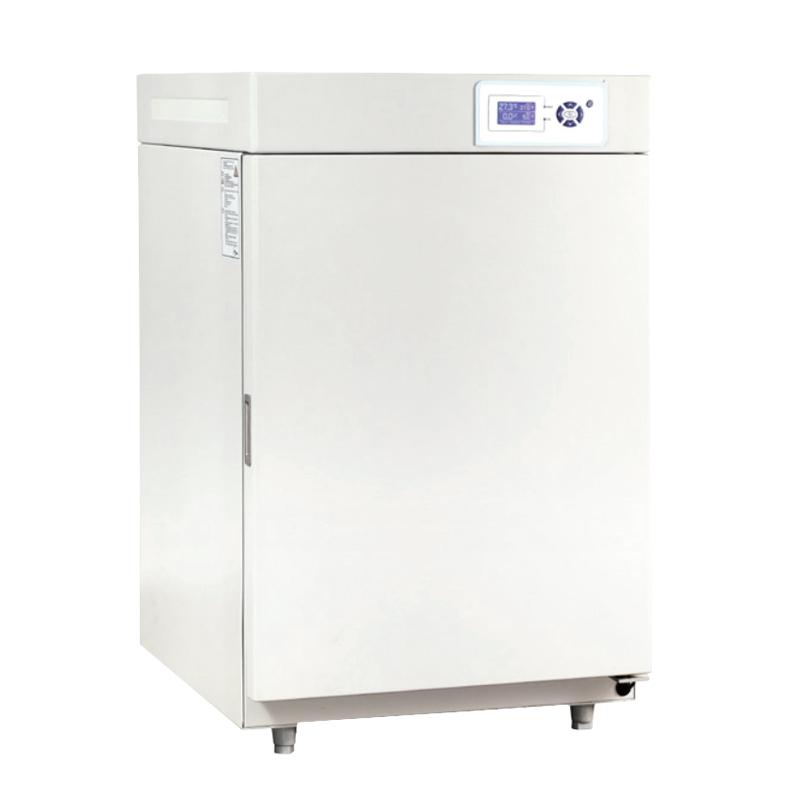

The new generation BPN series Co2 incubator is an upgraded product of the original HH · CP series. It adopts infrared CO2 Sensor, and the control accuracy is accurate and stable, and it is not affected by temperature and Humidity. It is suitable for experimental environments such as cell foster.
Features
1. Humanized design: stackable placement (two layers), microcomputer LCD controller, stainless steel liner and shelf, four corners and half arc transition, shelf bracket can be freely loaded and unloaded, easy to clean.
2. Infrared Sensor: monitors CO2 gas at a fast speed, is not affected by external temperature Humidity fluctuations, and keeps the CO2 concentration in the box stable and uniform.
3. Microbial Effective Filter: The CO2 air inlet is equipped with a Filter, which has a 99.99% filtration efficiency for particles with a diameter of ≥ 0.3 μm, effectively penetrating bacteria and dust particles.
4. Automatic control of circulating fan speed: The fan speed is automatically adjusted, and the wind speed is reduced when thermostatic to avoid sample volatilization.
5. Door heating system: The box door is heated to the inner Glass door to prevent condensation and microbial contamination.
6. Safety function: independent temperature limit alarm system (optional), low temperature, high temperature, over-temperature alarm and long door opening time alarm.
7. Ultraviolet sterilization system: The ultraviolet sterilization lamp is located at the top and back of the box, and is regularly disinfected to kill the floating bacteria of circulating air and humidifying pan water vapor to prevent pollution.
Principle
The infrared CO2 Sensor is used to monitor the carbon dioxide concentration in the box, with high control accuracy and stability, and is not affected by temperature Humidity. The circulating fan speed is automatically adjusted to reduce the wind speed in the thermostatic state and avoid sample volatilization. The door heating system prevents the condensation of the Glass door, and the ultraviolet sterilization system regularly disinfects the internal environment to ensure the Stability and safety of cell fostering.
Applications
Cell fostering, microbial experiments, biomedical research
Notice
● Ambient Temperature should be kept at + 5~ 30 ℃.
● Environmental humidity needs to be evaporated naturally ≥ 90%.
● Regularly use an ultraviolet sterilization system for disinfection.
● Avoid opening doors frequently to prevent fluctuations in CO2 concentration.
Optional independent temperature limit alarm system to enhance safety.
