Overview

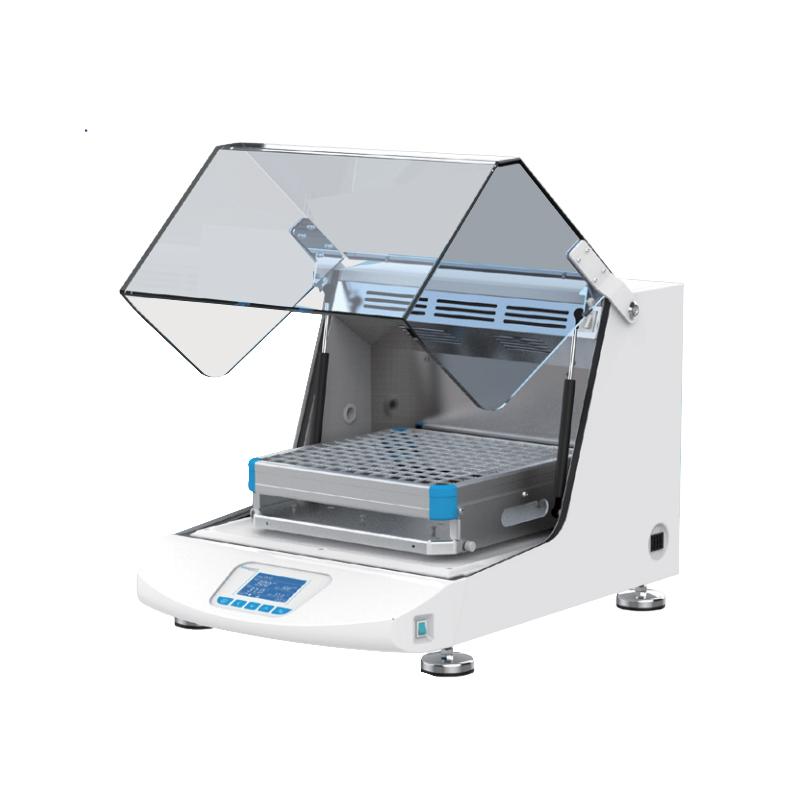

YIHENG THZ-103B thermostatic foster Shaker integrates more than ten years of design and manufacturing experience, introduces and digests foreign technologies, and continuously innovates with user request-oriented technology. The product integrates incubator and Shaker, and is widely used in the fields of cell fostering, fermentation, hybridization, biochemistry and cell tissue research that require high temperature and Oscillation Frequency. It can exercise or statically foster microbial cells and various strains.
Features
1. Humanized design: Incubator and Shaker in one, small footprint; Large LCD screen real-time display temperature, Rotation speed and Working time, Menu Operating interface is easy to understand; Fluorine-free environmental protection design; Large observation window, stainless steel liner and Shaker Table surface for easy cleaning
2. Quality assurance: Microcomputer control temperature and Oscillation Frequency, with timing function; built-in power-off protection can automatically resume operation; brand Compressor and circulating fan, environmentally friendly without fluorine refrigerant
3. Continuous operation guarantee: low heat dissipation brushless DC motor with large starting torque, wide speed regulation, maintenance-free, and can run continuously for a long time
4. Safety functions: door switch design, automatic stop operation when opening the door; unique control Rotation speed circuit to ensure smooth start; independent temperature limit alarm system to automatically cut off heating; automatic control of circulating fan speed; optional RS-485 and USB interface to connect to computer monitoring
Principle
The product precisely controls the temperature and Oscillation Frequency through a microcomputer Control system, uses a brushless DC motor to drive the Shaker Table to achieve smooth oscillation, and maintains a thermostatic environment through a Compressor refrigeration system and heating system to provide stable temperature and oscillation conditions for cell fostering and biological experiments.
Applications
Cell fostering, fermentation, hybridization, biochemical research, cell tissue research
Steps
1. Connect the AC220V power supply
2. Set Required Temperature, Oscillation Frequency and Working time via LCD
3. Place the sample on the Shaker Table and secure it with a spring clamp
4. Close the box door to start the device
5. Parameters can be monitored in real time through the display screen during the operation of the equipment
6. Remove the sample and clean the equipment after the run
Notice
• Power supply voltage AC220V 50HZ before use
• When the box door is opened, the device automatically stops running, and can continue to work after closing
• Avoid liquid splashing and damage to the instrument
• Regularly clean stainless steel liner and Shaker Table
• When the temperature exceeds the limit, the heating will be automatically cut off
• Please disconnect the power supply when not in use for a long time
• The optional interface needs to be connected to the computer correctly according to the instructions.
