Overview

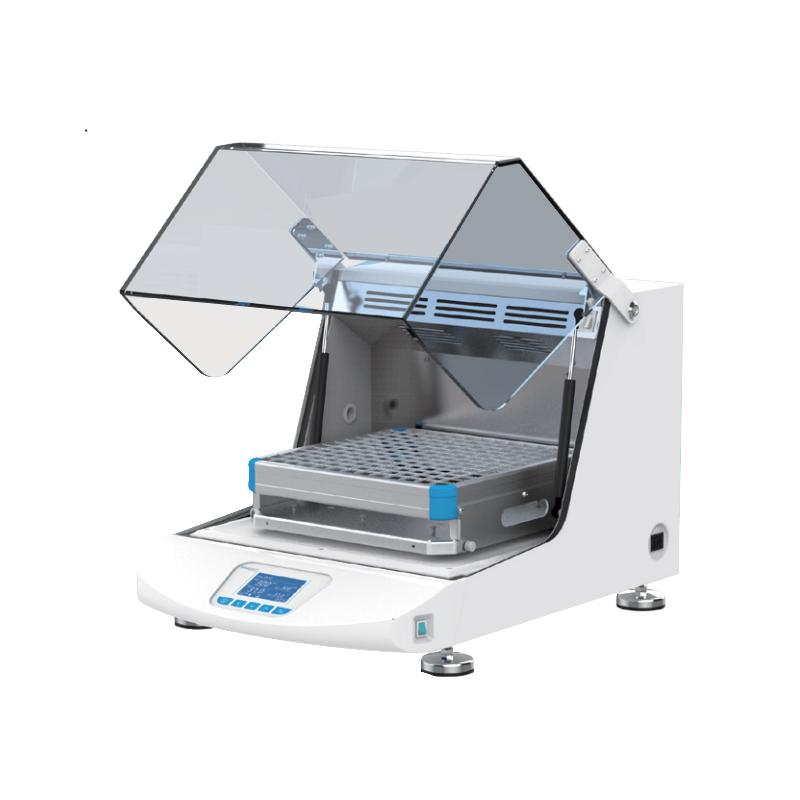

Thermostatic foster Shaker THZ-100 is a product developed by YIHENG brand with more than ten years of design and manufacturing experience and the introduction and digestion of foreign technology. It is guided by user request and is widely used in the fields of cell fostering, fermentation, hybridization, biochemistry and cell tissue research with high requirements for temperature and Oscillation Frequency. It can exercise or statically foster microbial cells and various strains.
Features
1. Humanized design: set incubator and Shaker in one, small footprint, large screen LCD display real-time data, menu Operating interface is easy to understand, fluorine-free environmental protection design, large observation window and stainless steel liner for easy cleaning
2. Quality Assurance: Microcomputer Control Temperature and Oscillation Frequency with Timing Function, Built-in Power-off Protection Automatic Recovery, Brand Compressor and Fan Parts
3. Continuous operation guarantee: low heat dissipation brushless DC motor with large starting torque, wide speed regulation and maintenance-free, and can run continuously for a long time
4. Safety functions: the door switch automatically stops running, the unique circuit ensures a smooth start to prevent liquid splashing, the independent temperature limit alarm system automatically cuts off the heating, the circulating fan speed is automatically controlled to prevent sample volatilization, optional RS-485 and USB interface connection computer monitoring
Principle
The Microcomputer Control system precisely controls the temperature and Oscillation Frequency, and combines the brushless DC motor to drive the Shaker to run smoothly to realize the foster and oscillation functions in the thermostatic environment. Safety protection mechanisms such as door switches and temperature limit alarms are built in to ensure that the equipment works safely and stably under set parameters.
Applications
Cell fostering, fermentation, hybridization, biochemical research, cell tissue research
Standards
Fluorine-free environmental protection design
Steps
1. Connect power supply AC220V 50HZ
2. Set Temperature (RT + 5~ 65 ℃), Oscillation Frequency (40~ 300rpm) and Timing (0~ 599min) by LCD Controller
3. Place the sample on the tray and secure it with a spring clip
4. Start the device and monitor the screen display parameters
5. Turn off the power after running
Notice
● When the box door is opened, it will automatically stop running, please do not force it to operate.
● Avoid liquid splashing to prevent damage to the instrument
● If the temperature exceeds the limit, the heating will be automatically cut off, and the alarm system needs to be checked regularly
Automatic control of circulating fan speed without manual intervention
● Use a soft cloth to wipe the stainless steel liner and countertop when cleaning
● The optional interface needs to be connected to the computer according to the instructions.
