Overview

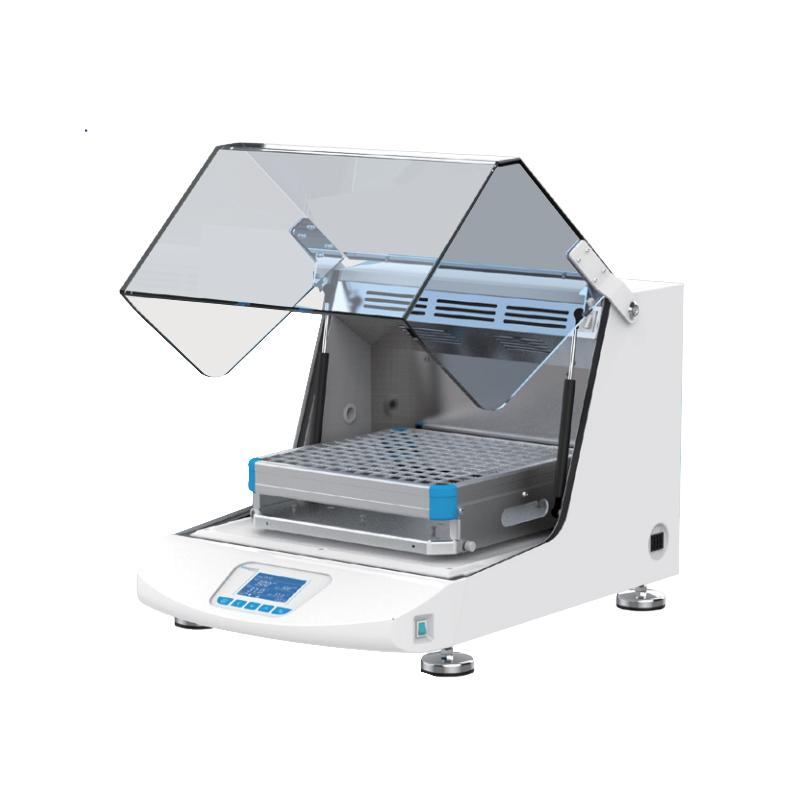

Thermostatic foster Shaker THZ-100B is a product developed by YIHENG brand with more than ten years of design and manufacturing experience and the introduction and digestion of foreign technology. It is guided by user request and is widely used in the fields of cell fostering, fermentation, hybridization, biochemistry and cell tissue research that have high requirements for temperature and Oscillation Frequency. It can exercise or statically foster microbial cells and various strains.
Features
1. Humanized design: Set incubator and Shaker in one, small footprint; Large LCD display real-time display temperature, Rotation speed and Working time, Menu Operating interface is easy to understand; Fluorine-free environmental protection design; Large observation window, stainless steel liner and Shaker Table surface for easy cleaning.
2. Quality assurance: Microcomputer control temperature and Oscillation Frequency, with timing function; built-in power-off protection, automatic operation after power recovery; key components use brand products, environmentally friendly without fluorine refrigerant.
3. Continuous operation guarantee: low heat dissipation brushless DC motor, large starting torque, wide speed regulation, maintenance-free, can run continuously for a long time.
4. Safety functions: door switch design, automatic stop breeze circulation, heating and Shaker when the box door is opened; unique control Rotation speed circuit to ensure smooth start and prevent liquid splashing; independent temperature limit alarm system, automatic cutting off heating over temperature; automatic control of circulating fan speed to avoid sample volatilization; optional RS-485 and USB interface to connect to computer monitoring parameters.
Principle
The Thermostatic Foster Shaker precisely adjusts the temperature and Oscillation Frequency through a microcomputer Control system to achieve a thermostatic environment and uniform oscillation. It combines incubator and Shaker functions, uses a brushless DC motor to drive the Shaker Table, and cooperates with an environmentally friendly fluorine-free refrigeration system and heating elements to maintain the set Temperature range. Stability and safety of the foster process are ensured by real-time monitoring and adjustment of parameters through an LCD controller.
Applications
Cell fostering, fermentation, hybridization, biochemical research, cell tissue research
Standards
Fluorine-free environmental protection design
Steps
1. Connect the power supply and ensure that the voltage is AC220V 50Hz.
2. Set the required temperature, Oscillation Frequency and Working time through the LCD menu.
3. Place the sample on the tray and fix it with a multi-functional spring clip.
4. Start the device and monitor the real-time parameters on the display.
5. After use, turn off the power and clean the stainless steel liner and countertop.
Notice
● Power supply voltage meets AC220V 50HZ requirements to avoid voltage instability.
When the box door is opened, the device automatically stops running and resumes after closing the door.
Avoid running in an over-temperature state and pay attention to the independent temperature limit alarm system prompt.
Clean stainless steel parts promptly after use to maintain hygiene.
When running continuously for a long time, check the heat dissipation of the equipment.
● When using the optional interface, connect the computer monitoring data according to the instructions.
