Overview

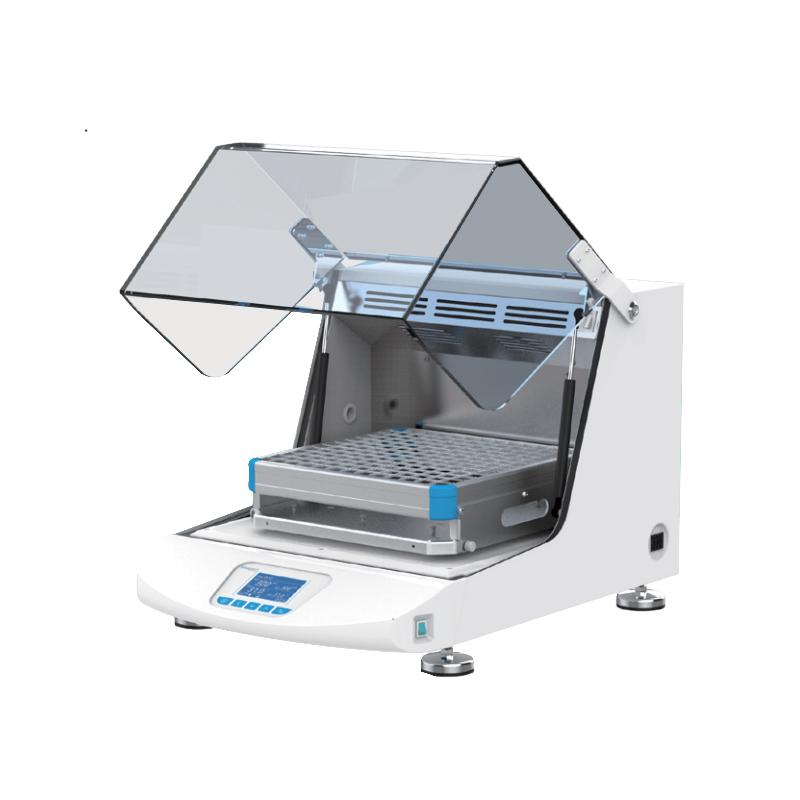

Thermostatic foster Shaker THZ-300 integrates more than ten years of design and manufacturing experience, introduces and digests foreign technologies, and continuously innovates with user request as the guide. It is widely used in cell fostering, fermentation, hybridization, biochemistry and cell tissue research that have high requirements for temperature and Oscillation Frequency. It can move and statically foster microbial cells and various strains.
Features
1. Humanized design: set incubator and Shaker in one, small footprint; large LCD screen real-time display temperature, Rotation speed and Working time; Menu Operating interface is easy to understand; Fluorine-free environmental protection design; large observation window and stainless steel liner for easy cleaning
2. Quality assurance: Microcomputer control temperature and Oscillation Frequency with timing function; built-in power-off protection automatic recovery operation; brand Compressor and circulating fan and other key components
3. Continuous operation guarantee: low heat dissipation brushless DC motor with large starting torque, wide speed regulation, and maintenance-free, breaking through the defects that China Shaker cannot operate continuously for a long time
4. Safety functions: door switch protection device; smooth start to prevent liquid splashing; independent temperature limit alarm system; automatic control of circulating fan speed; optional RS-485 and USB Interface
Principle
Temperature and Oscillation Frequency are precisely controlled by a microcomputer Control system, a low heat dissipation brushless DC motor is used to drive the Shaker Table, and a circulating fan is used to achieve uniform temperature distribution, which meets the needs of thermostatic oscillation in cell fostering and biochemical experiments.
Applications
Cell foster, fermentation, hybridization, biochemical research, cell tissue research, microbial foster, strain foster
Standards
Fluorine-free environmental protection design
Steps
1. Connect the AC220V power supply
2. Set the required temperature, Oscillation Frequency and Working time parameters through the LCD screen
3. Place the sample on the Shaker Table and secure it with a multifunctional spring clip
4. Close the box door to start the device
5. Real-time monitoring of temperature, Rotation speed and working status on the display
6. Turn off the device according to the procedure after the experiment
Notice
● Automatic stop heating and oscillation function when the box door is opened
● If the temperature exceeds the limit, the heating will be automatically cut off to ensure safety
● Avoid sample volatilization caused by too fast circulating fan
● Clean the stainless steel liner and countertop in time after use
● Power supply voltage AC220V 50HZ
● Optional Interface for computer monitoring
