Overview

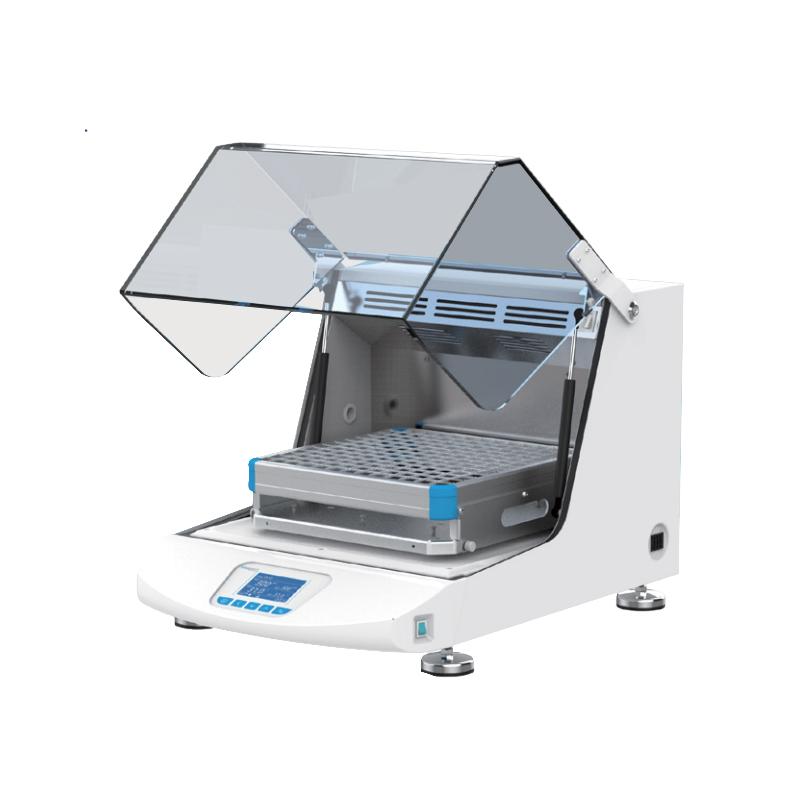

YIHENG THZ-300C thermostatic foster Shaker integrates more than ten years of design and manufacturing experience, introduces and digests foreign technologies, and continuously innovates with user request as the guide. It is widely used in cell fostering, fermentation, hybridization, biochemistry and cell tissue research that have high requirements for temperature and Oscillation Frequency. It can carry out movement and static foster of microbial cells and various strains.
Features
1. Humanized design: Incubator and Shaker in one, small footprint; Large LCD screen real-time display temperature, Rotation speed and Working time, Menu Operating interface is easy to understand; Fluorine-free environmental protection design; Large observation window, stainless steel liner and Shaker Table surface for easy cleaning
2. Quality assurance: Microcomputer control temperature and Oscillation Frequency, with timing function; built-in power-off protection automatic recovery operation; brand Compressor and circulating fan, environmentally friendly without fluorine refrigerant
3. Continuous operation guarantee: low heat dissipation brushless DC motor with large starting torque, wide speed regulation, maintenance-free, and can run continuously for a long time
4. Safety functions: door switch protection; smooth start to prevent liquid splashing; independent temperature limit alarm system; automatic control of circulating fan speed; optional RS-485 and USB interface to connect to computer monitoring
Principle
Temperature and Oscillation Frequency are precisely controlled by a microcomputer Control system, a low heat dissipation brushless DC motor is used to drive the Shaker Table, and an environmentally friendly fluorine-free refrigeration system and a circulating fan are used to achieve thermostatic fostering and oscillation mixing of the sample.
Applications
Cell foster, fermentation, hybridization, biochemical research, cell tissue research, microbial foster, strain foster
Steps
1. Connect the AC220V power supply
2. Set the required temperature, Oscillation Frequency and Working time through the LCD controller
3. Place the sample on the Shaker Table and secure it with a spring clamp
4. Close the box door to start the device
5. Monitor the running status, and connect the computer through the optional interface for data monitoring
Notice
• When the box door is opened, the equipment automatically stops running
• If the temperature exceeds the limit, the heating will be automatically cut off
• Avoid sample volatilization caused by too fast circulating fan
• Clean the stainless steel liner and countertop in time after use
• Power supply voltage AC220V 50HZ
• Optional function requires additional configuration of interface module
