Overview

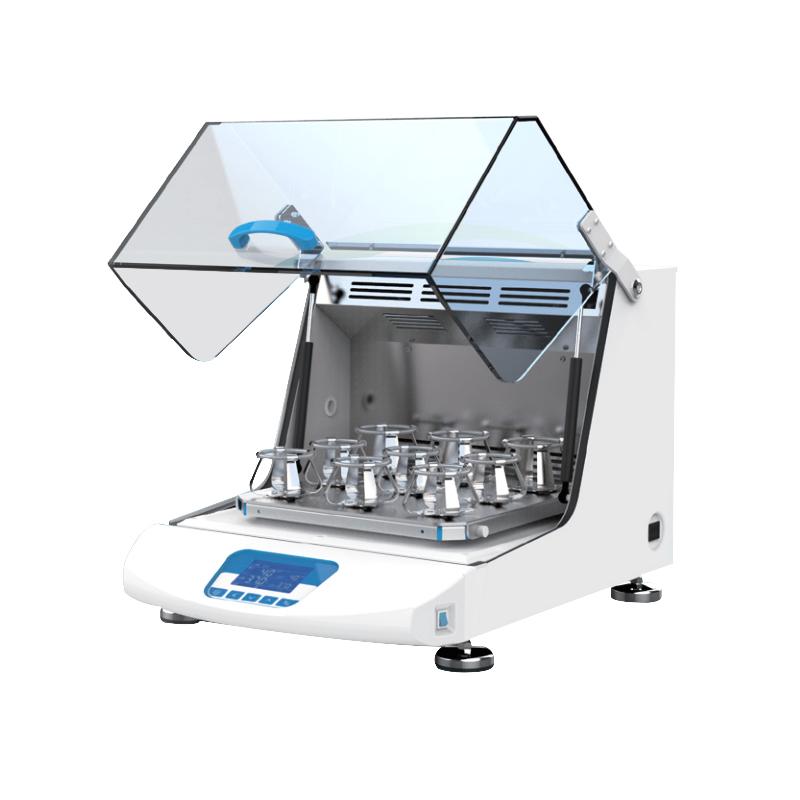

YIHENG THZ-15 thermostatic foster Shaker is a high-speed thermostatic foster Shaker with more than ten years of design and manufacturing experience and the introduction of foreign technology. It is guided by user request and is widely used in the research of cell fostering, fermentation, hybridization, biochemistry and cell organization with high requirements for temperature and Oscillation Frequency. It can exercise or statically foster microbial cells and various strains.
Features
1. Humanized design: set incubator and Shaker in one, small footprint; Large LCD screen real-time display temperature, Rotation speed and Working time, Menu Operating interface easy to understand; Fluorine-free environmental protection design; Large observation window, the inner tank of the box is made of 304 stainless steel, Shaker Table surface is treated with high-grade aluminum surface bacteriostatic coating, easy to clean.
2. Quality assurance: Microcomputer control temperature and Oscillation Frequency, with timing function; built-in power-off protection function, automatic operation after power recovery; key components such as Compressor and circulating fan use brand products, environmentally friendly without fluorine refrigerant.
3. Continuous operation guarantee: low heat dissipation brushless DC motor, large starting torque, wide speed regulation, maintenance-free, can run continuously for a long time.
4. Safety function: equipped with door switch, automatic stop breeze circulation, heating and Shaker when the box door is opened; unique control Rotation speed circuit to ensure smooth start and prevent liquid splashing; independent temperature limit alarm system over temperature automatic cut off heating; circulating fan speed automatic control to avoid sample volatilization; optional RS-485 and USB interface to connect to computer monitoring parameters.
Principle
The device precisely controls the temperature and Oscillation Frequency through a microcomputer controller to achieve the combination of thermostatic environment and oscillatory motion. The built-in motor drives the Shaker Table to oscillate, while the cooling/heating system maintains the set temperature, the circulating fan ensures uniform temperature, and the safety system such as door switch and temperature limit alarm ensures safe operation.
Applications
Cell fostering, fermentation, hybridization, biochemistry, cell tissue research, microbial cell fostering, strain fostering
Standards
Fluorine-free environmental protection design
Steps
1. Connect the power supply and turn on the power switch of the device.
2. Set the required temperature, Oscillation Frequency and Working time through the LCD menu.
3. Place the sample on the Shaker Table and fix it with a fixing clip.
4. Close the box door and the device will start running automatically.
5. During operation, parameters can be monitored in real time through the display screen.
6. After the operation is completed, the device automatically stops or is manually shut down.
Notice
● Power supply voltage is 220V 50Hz to avoid overload.
The equipment automatically stops running when the box door is opened, and can continue after closing.
● Oscillation bearing weight does not exceed 2Kg (including fixture) to prevent overload damage.
● Regularly clean the inner tank and Shaker Table to maintain hygiene.
● Avoid use in high temperature or humid environments to prevent performance.
● In case of over-temperature alarm, check and troubleshoot immediately.
● When using the optional interface, please follow the instructions to connect to the computer.
