Overview

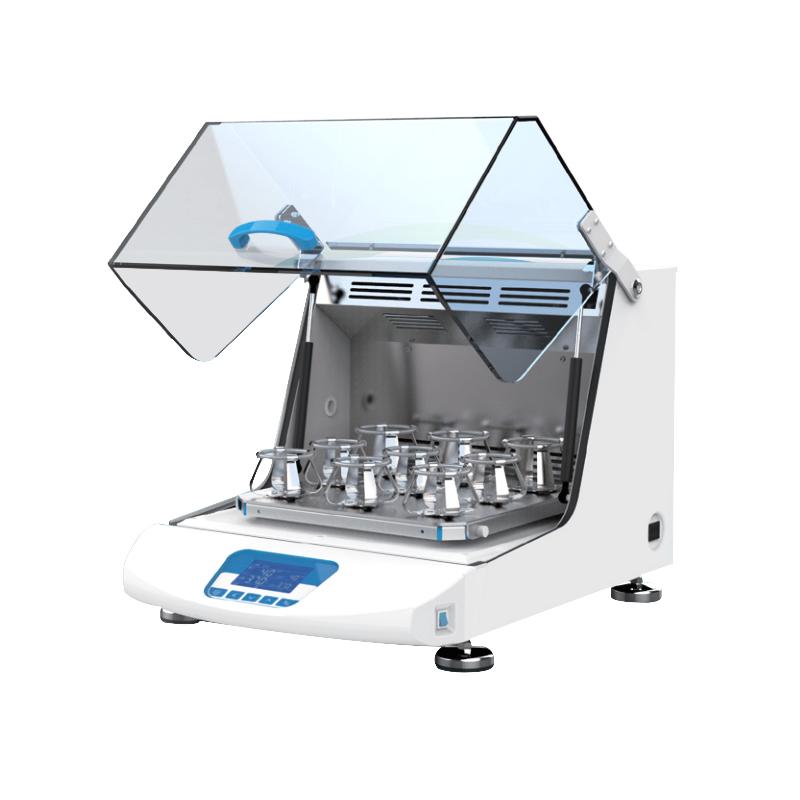

YIHENG THZ-35C thermostatic foster Shaker is a high-speed thermostatic foster Shaker with more than ten years of design and manufacturing experience, the introduction and digestion of foreign technology, and continuous technological innovation based on user request. It integrates incubator and Shaker, and is widely used in the fields of cell fostering, fermentation, hybridization, biochemistry and cell tissue research that have high requirements for temperature and Oscillation Frequency. It can exercise or statically foster microbial cells and various strains.
Features
1. Humanized design: Set incubator and Shaker in one, small footprint; Large LCD screen real-time display temperature, Rotation speed and Working time, Menu Operating interface is easy to understand; Fluorine-free environmental protection design; Large observation window, the inner tank of the box is made of 304 stainless steel, Shaker Table surface is made of high-grade aluminum surface bacteriostatic coating for easy cleaning.
2. Quality assurance: Microcomputer control temperature and Oscillation Frequency with timing function; built-in power-off protection can automatically resume operation; key components use brand products, environmentally friendly without fluorine refrigerant.
3. Continuous operation guarantee: low heat dissipation brushless DC motor with large starting torque, wide speed regulation, and maintenance-free, breaking through the defects that China Shaker cannot operate continuously for a long time.
4. Safety function: Door switch design Automatically stop breeze circulation, heating and Shaker when the box door is opened; Unique control Rotation speed circuit to ensure smooth start and prevent liquid splashing; Independent temperature limit alarm system over temperature automatically cut off heating; Automatic control of circulating fan speed to avoid sample volatilization; Optional RS-485 and USB interface to connect to computer monitoring.
Principle
The thermostatic foster Shaker precisely controls the temperature and Oscillation Frequency through a microcomputer controller to realize the combination of thermostatic environment and oscillatory motion. Its low-heat-dissipation brushless DC motor drives the oscillation system, with components such as Compressor and circulating fan, to ensure stable operation within the set Temperature range, meeting the needs of biological experiments such as cell foster.
Applications
Cell fostering, fermentation, hybridization, biochemistry, cell tissue research
Steps
1. Connect the power supply and turn on the device.
2. Set the Temperature, Oscillation Frequency and Working time through the Large Screen LCD Menu Operating interface.
3. Place the sample on the Shaker Table and fix it with the factory-configured flask fixing clip.
4. Start the device and monitor the real-time display parameters to ensure normal operation.
5. Turn off the device according to the operation after use.
Notice
• When the box door is opened, the device automatically stops running, and needs to be restarted after closing the box door.
• Avoid liquid splashing to prevent damage to the instrument.
• When the temperature exceeds the limit, the equipment automatically cuts off the heating, and the settings need to be checked.
• Automatic control of circulating fan speed, do not manually intervene to prevent sample volatilization.
• When using the optional interface, please follow the instructions to connect to the computer.
