Overview

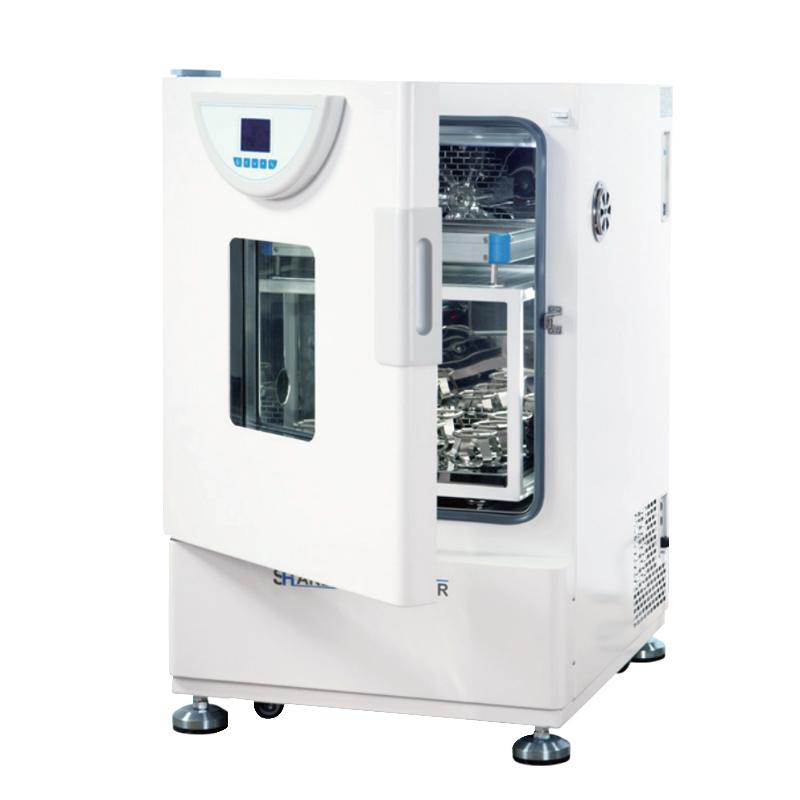

YIHENG THZ-98A (single layer) thermostatic Shaker combines more than ten years of design and manufacturing experience, introduces and digests foreign technologies, and is guided by user requests. It is widely used in cell fostering, fermentation, hybridization, biochemistry and cell tissue research that have high requirements for temperature and Oscillation Frequency. It can move and statically foster microbial cells and various strains, especially suitable for laboratory pilot production.
Features
1. Humanized design: set incubator, Shaker in one, small footprint, large bottle load; automatic conversion to incubator at the end of the oscillation experiment; large-screen LCD screen, menu-type Operating interface; quiet operation; fluorine-free design; large-screen tempered thermal insulation observation window; a variety of special cradles and fixtures, easy to replace; the inner tank, Shaker Table and shelf are made of 304 stainless steel; the left side of the box is equipped with 25mm test hole.
2. Quality assurance: parameters are automatically stored in the event of a power outage, and the original program is run after power on; microcomputer PID controls temperature and Oscillation Frequency, with timing function; key components are brand products, environmentally friendly without fluorine refrigerant.
3. Continuous operation guarantee: low heat dissipation DC motor, large starting torque, wide speed regulation, maintenance-free, can run continuously for a long time.
4. Safety function: door switch function, automatic stop breeze circulation, heating and Shaker when the box door is opened; unique control Rotation speed circuit to ensure smooth start; independent temperature limit alarm system; automatic control of circulating fan speed; optional RS-485 and USB interface.
5. Self-diagnosis function: The LCD screen displays fault information when the fault occurs.
6. Multi-stage programmable control (optional): multi-stage temperature, speed, time synchronization programming, normal and programming operation mode optional.
7. Convenient data processing (optional): Can be connected to a printer or 485 Communication interface to record temperature and time Linear dispersion.
8. UV sterilization system: UV sterilization lamp on the back wall of the box, regularly disinfected to prevent pollution.
Principle
Microcomputer PID is used to control temperature and Oscillation Frequency, DC motor is used to drive oscillation, combined with circulating fan to achieve uniform temperature, and multi-stage programming mode can be selected to automatically control the operation process.
Applications
Cell fostering, fermentation, hybridization, biochemistry, cell tissue research, microbial cell and strain fostering
Steps
1. Connect the power supply and turn on the device.
2. Set the Temperature, Oscillation Frequency and Timing parameters through the large LCD screen.
3. Place the sample on the tray and choose a cradle or fixture as required.
4. Start operation, and the device automatically controls temperature and oscillation.
5. After the experiment is over, it can be automatically converted to incubator mode to continue using.
6. Optional functions such as data recording or UV sterilization can be operated on demand.
Notice
• When the box door is opened, the equipment automatically stops running to avoid temperature overshoot.
• Power supply voltage AV220V 50HZ to prevent equipment damage.
• Regularly clean the liner and components of the box, and clean it in time after use.
• Avoid liquid splashing to prevent damage to the instrument.
• When using a UV sterilization system, pay attention to safe operation.
Optional features require additional configuration, such as RS-485 interface or multi-stage programming.
