Overview

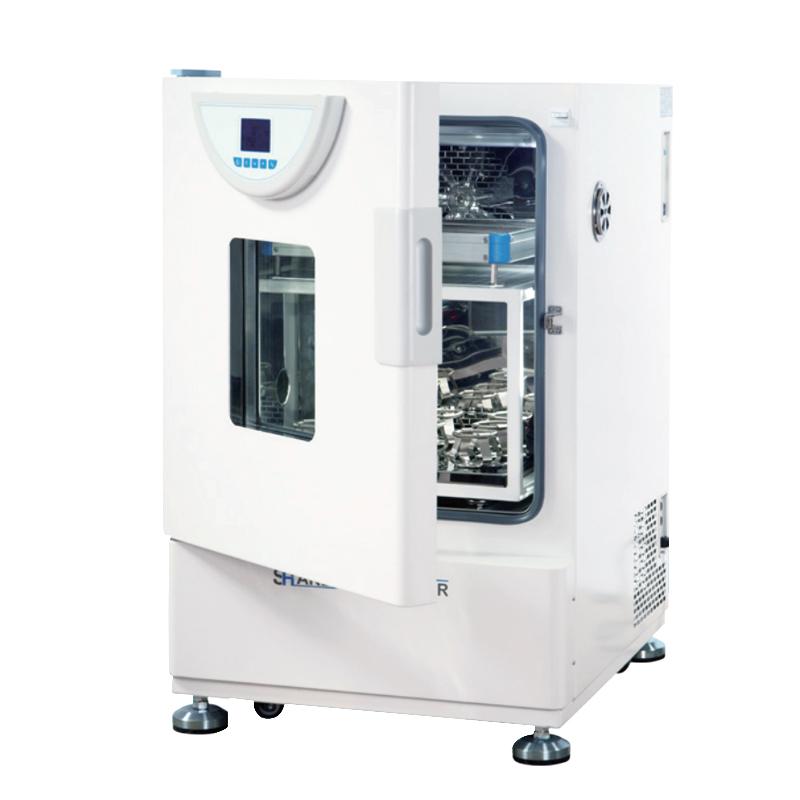

YIHENG THZ-98AB (double-decked) thermostatic Shaker integrates more than ten years of design and manufacturing experience, introduces and digests foreign technologies, and continues to innovate in technology based on user request. The product integrates incubator and Shaker, and is widely used in the fields of cell fostering, fermentation, hybridization, biochemistry and cell tissue research that have high requirements for temperature and Oscillation Frequency. It can exercise or statically foster microbial cells and various strains, especially suitable for laboratory pilot production.
Features
1. Humanized design: set incubator and Shaker in one, occupies a small amount of bottles; can be automatically converted to incubator at the end of the oscillation experiment; large-screen LCD screen, menu-type Operating interface; quiet operation; fluorine-free design; large-screen tempered thermal insulation observation window; a variety of special cradles and fixtures for easy replacement; the inner tank, Shaker Table and shelf are made of 304 stainless steel; the left side of the box is equipped with 25mm test hole
2. Quality assurance: parameters are automatically stored in the event of a power outage, and resume operation after power on; microcomputer PID controls temperature and Oscillation Frequency, with timing function; brand Compressor and circulating fan are used, environmentally friendly without fluorine refrigerant
3. Continuous operation guarantee: low heat dissipation DC motor, large starting torque, wide speed regulation, maintenance-free, can run continuously for a long time
4. Safety functions: door switch protection function; unique control Rotation speed circuit to ensure smooth start; independent temperature limit alarm system; automatic control of circulating fan speed; optional RS-485 and USB interface
5. Self-diagnosis function: The LCD screen displays fault information when the fault occurs
6. Multi-stage programmable control (optional): multi-stage temperature, speed, time synchronous programming
7. Convenient data processing (optional): can be connected to the printer or 485 Communication interface to record data
8. UV sterilization system: The UV sterilization lamp on the back wall of the box can be regularly disinfected
Principle
The thermostatic Shaker uses a microcomputer PID Control system to precisely control the temperature and Oscillation Frequency. The oscillation platform is driven by a low-heat-dissipation DC motor, and the circulating fan is combined to achieve uniform temperature distribution in the box. When the setting program is running, the device can automatically complete the thermostatic oscillation operation according to the preset parameters, and automatically convert to the incubator mode to continue working after the experiment is over.
Applications
Cell fostering, fermentation, hybridization, biochemical research, cell tissue research, microbial cell fostering, strain fostering, laboratory pilot production
Standards
No relevant information
Steps
1. Turn on the power supply and turn on the device switch
2. Set Temperature, Oscillation Frequency and Timing Parameters through Large Screen LCD and Menu Operating interface
3. Install special cradles and fixtures as required
4. Place the sample and close the box door
5. Start the running program
6. After the experiment, the device can automatically switch to incubator mode to continue working
7. Monitor sample status through the observation window
8. Regularly use the UV sterilization system for disinfection in the box
Notice
• Breeze circulation, heating and Shaker will automatically stop when the box door is opened
• When the temperature exceeds the limit, the heating will be automatically cut off
• The circulating fan speed is automatically controlled to avoid sample volatilization
• Please check the fault information displayed on the LCD screen when it fails.
• Regularly use an ultraviolet sterilization system for disinfection
• Optional multi-stage programming control and data processing functions as required
• The test hole on the left side of the box can be used for wiring
• Please use the cleaning method suitable for stainless steel when cleaning
