Overview

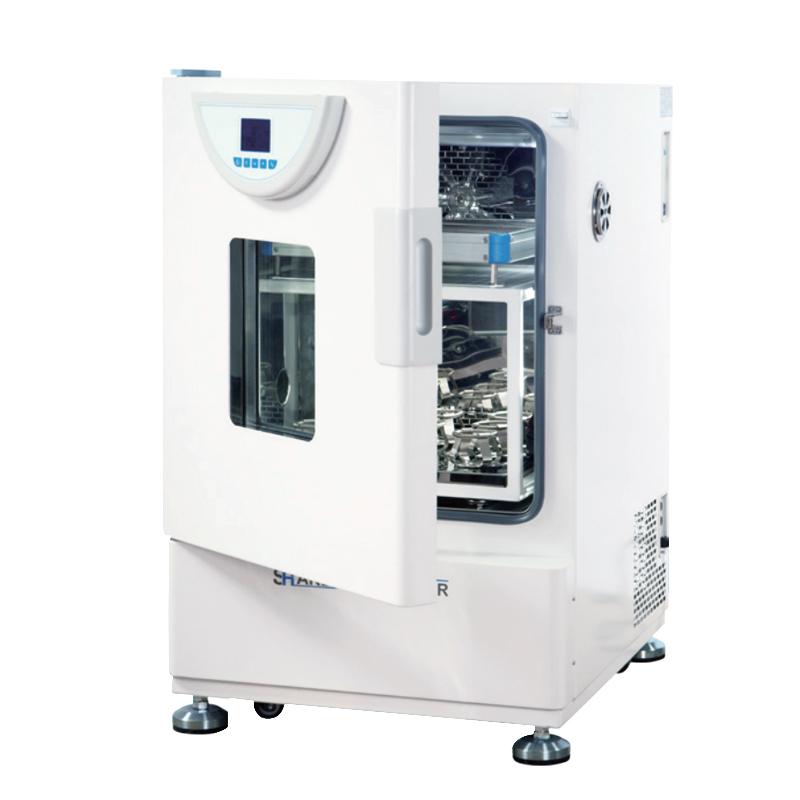

YIHENG HZQ-300A (single layer) thermostatic Shaker integrates more than ten years of design and manufacturing experience, introduces and digests foreign technologies, and continuously innovates with user request-oriented technology. The product integrates incubator and Shaker, and is widely used in the fields of cell fostering, fermentation, hybridization, biochemistry and cell tissue research that have high requirements for temperature and Oscillation Frequency. It is especially suitable for the movement of microbial cells and various strains, static foster and laboratory pilot production.
Features
1. Humanized design: the incubator and Shaker are integrated into a small container, which can be automatically converted to an incubator at the end of the experiment; the large-screen LCD menu is easy to operate; the operation is quiet; the fluorine-free design; the tempered thermal insulation observation window is clear to observe the sample; a variety of special cradle fixtures are easy to replace and improve efficiency; 304 stainless steel liner countertop is easy to clean; the left 25mm test hole is convenient for wiring
2. Quality assurance: automatic storage parameters after power failure, restore the original program after power on; Microcomputer PID control Temperature Frequency with timing function; Brand Compressor fan environmental protection without fluorine refrigerant
3. Continuous operation guarantee: low heat dissipation DC motor starting torque, large speed regulation, maintenance-free, can run continuously for a long time
4. Safety function: door switch protection automatically stop heating Shaker; smooth start to prevent liquid splashing; independent temperature limit alarm to cut off heating; fan speed automatic control to prevent sample volatilization; optional RS-485 and USB interface computer monitoring
5. Self-diagnosis function: LCD display information when faulty
6. Multi-stage programmable control (optional): multi-stage temperature, speed and time synchronization programming to simplify complex foster requirements
7. Convenient data processing (optional): can be connected to a printer or 485 interface to record temperature and time Linear dispersion
8. UV sterilization system: UV Lamp in the box is regularly disinfected to kill floating bacteria and prevent pollution
Principle
The thermostatic Shaker uses microcomputer PID control technology to precisely adjust the temperature and Oscillation Frequency. It is driven by a DC motor to achieve smooth oscillation, combined with a circulating fan to ensure uniform temperature. When the program is set, the device runs automatically and can be converted to incubator mode after the experiment is over to maintain a thermostatic environment.
Applications
Cell fostering, fermentation, hybridization, biochemical research, cell tissue research, microbial cell fostering, strain fostering, laboratory pilot production
Steps
1. Connect the power supply and turn on the device.
2. Set Temperature, Oscillation Frequency and Timing Parameters via Large Screen LCD Menu
3. Install special cradles or fixtures as required
4. Place the sample and close the box door, and the device will start running automatically
5. After the experiment, you can choose to automatically convert to incubator mode and continue to use it.
6. When using the optional function, connect a computer or printer for data monitoring and recording
Notice
• Automatically stop heating and oscillation when the box door is opened to ensure safety
• Avoid liquid splashing to prevent instrument damage
• Regularly use the ultraviolet sterilization system to disinfect the inside of the box
• Pay attention to the simplicity of operation when replacing the cradle and fixture
• Parameters are automatically stored after a power outage, no need to reset
• Optional functions require additional configuration of interface devices
• Wipe stainless steel parts with a soft cloth when cleaning
