Overview

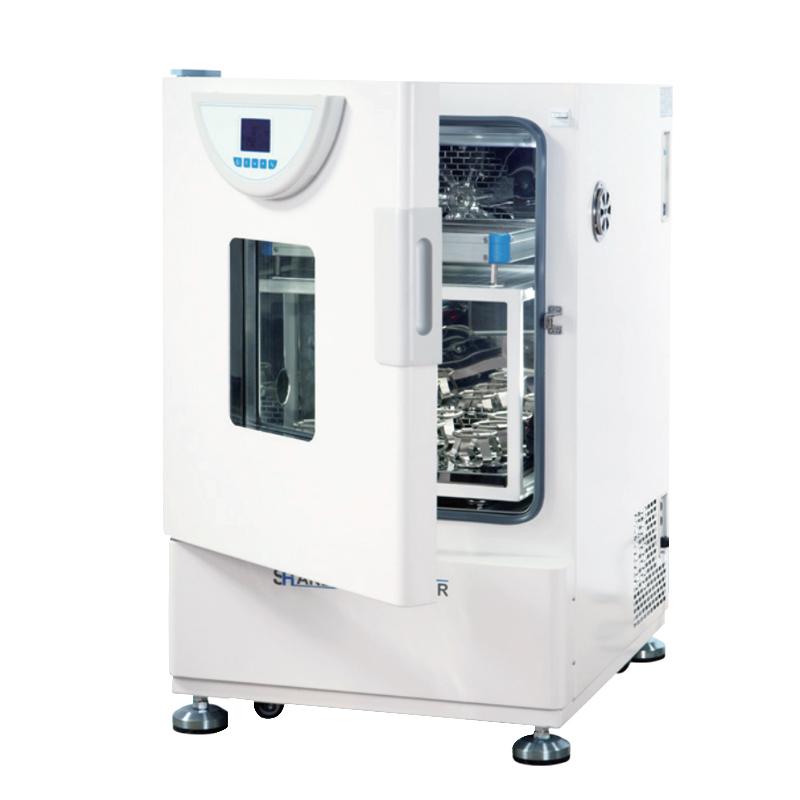

Thermostatic Shaker HZQ-F160A (single layer) is a device that integrates incubator and Shaker. It adopts LCD screen display, combines more than ten years of design and manufacturing experience and introduces foreign technology to meet the high requirements of users for temperature and Oscillation Frequency. It is widely used in the fields of cell fostering, fermentation, hybridization, biochemistry and cell tissue research. It is suitable for dynamic or static fostering of microbial cells and various strains, especially suitable for laboratory pilot production.
Features
1. Humanized design: integrates incubator and Shaker, occupies a small area and has a large bottle load; can be automatically converted to incubator after oscillation experiment; Large LCD screen, Menu Operating interface; Quiet operation; Fluorine-free design; Large screen tempered thermal insulation observation window; A variety of special cradles and fixtures, easy to replace; The inner tank, Shaker Table and shelf of the box are made of 304 stainless steel, which is easy to clean; The left side of the box is equipped with a 25mm test hole.
2. Quality assurance: parameters are automatically stored in the event of a power outage, and the original program is restored after power on; microcomputer PID controls temperature and Oscillation Frequency, with timing function; key components such as Compressors and fans use brand products, environmentally friendly without fluorine refrigerant.
3. Continuous operation guarantee: low heat dissipation DC motor, large starting torque, wide speed regulation, maintenance-free, can run continuously for a long time.
4. Safety functions: door switch design, automatic stop cycle, heating and Shaker when opening the door; unique control Rotation speed circuit to ensure smooth start; independent temperature limit alarm system, automatic cut off heating over temperature; automatic control of circulating fan speed; optional RS-485 and USB interface.
5. Self-diagnosis function: The LCD screen displays fault information when the fault occurs.
6. Multi-stage programmable control (optional): multi-stage temperature, speed, time synchronization programming, optional normal or programming mode.
7. Convenient data processing (optional): Can be connected to a printer or 485 interface to record temperature and time Linear dispersion.
8. Ultraviolet sterilization system: built-in ultraviolet sterilization lamp, regularly disinfect the box to prevent cell fostering pollution.
Principle
The thermostatic Shaker precisely adjusts the temperature and Oscillation Frequency through the microcomputer PID Control system, combined with the DC motor to drive the oscillating table, to achieve uniform temperature distribution and stable oscillatory motion. During operation, the circulating fan automatically controls the speed to optimize air circulation and ensure a stable sample environment. When the setting program is completed, the device can automatically switch to incubator mode to provide a continuous thermostatic environment.
Applications
Cell foster, fermentation, hybridization, biochemistry, cell tissue research, microbial foster, strain foster, laboratory pilot production
Steps
1. Connect the power supply and ensure that the voltage is AV220V 50Hz.
2. Turn on the power of the device, and set the temperature, Oscillation Frequency and Timing parameters through the large LCD screen and menu interface.
3. Install special cradles or fixtures as required to place samples.
4. Start the equipment, the microcomputer PID system automatically controls the operation, and the sample status can be observed through the thermal insulation observation window.
5. After the experiment, the device can be automatically converted to incubator mode for continued use.
6. Optional functions: If using multi-segment programming or Interface, you need to enable and connect external devices during setting.
Notice
• Power supply voltage check before use.
• When the box door is opened, the equipment automatically stops running to avoid temperature overshoot.
• Regularly clean the liner and components of the box, and clean it in time after use.
• Avoid forcibly opening the door while the equipment is running to prevent the sample from splashing or being damaged.
• Pay attention to the independent temperature limit alarm system, automatically cut off heating when overheating to ensure safety.
• When running continuously for a long time, ensure that the environment is well ventilated.
• Optional functions such as UV sterilization should be used regularly according to instructions to prevent contamination.
• Refer to the LCD display information for diagnosis and processing in case of failure.
