Overview

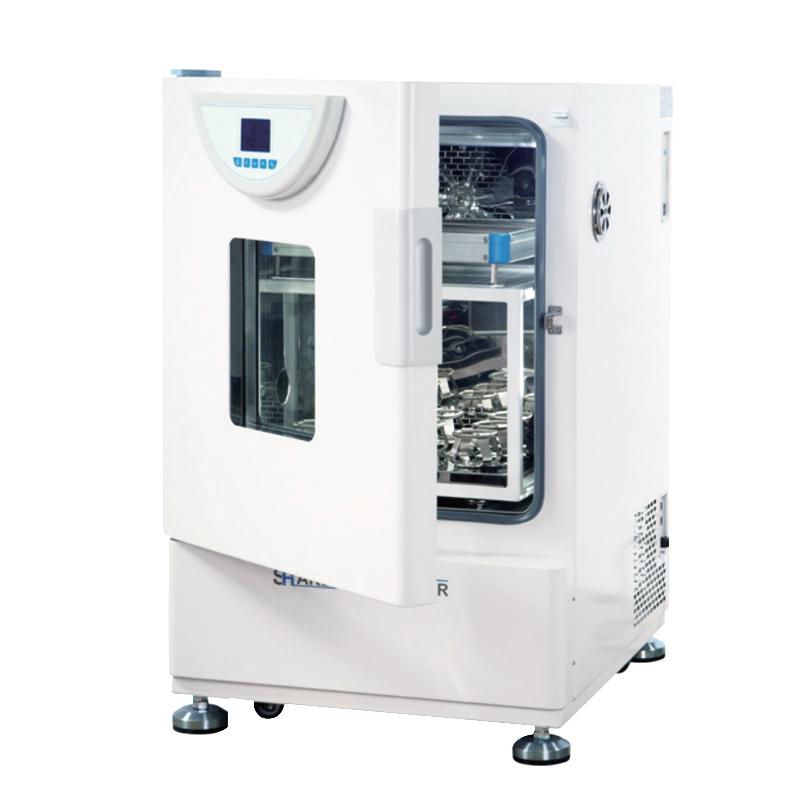

YIHENG THZ-98C (double-decked) thermostatic Shaker integrates more than ten years of design and manufacturing experience, introduces and digests foreign technologies, and continues to innovate in technology based on user request. The product integrates incubator and Shaker, and is widely used in the fields of cell fostering, fermentation, hybridization, biochemistry and cell tissue research that have high requirements for temperature and Oscillation Frequency. It can exercise or statically foster microbial cells and various strains, especially suitable for laboratory pilot production.
Features
1. Humanized design: set incubator and Shaker in one, small footprint, large bottle load; can be automatically converted to incubator at the end of the oscillation experiment; large-screen LCD menu Operating interface is simple and easy to understand; quiet operation; fluorine-free design; large-screen tempered thermal insulation observation window clearly observes the sample and has good thermal insulation; a variety of special cradles and fixtures are easy to choose and replace; the inner tank, Shaker Table and shelf are made of 304 stainless steel for easy cleaning; the left side of the box is equipped with 25mm test holes for easy wiring
2. Quality Assurance: Parameters are automatically stored in the event of a power outage and restored after power on; Microcomputer PID Control Temperature and Oscillation Frequency with Timing Function; Key Components Adopt Brand Products Environmentally friendly without fluorine refrigerant
3. Continuous operation guarantee: low heat dissipation DC motor has large starting torque, wide speed regulation, maintenance-free, and can run continuously for a long time
4. Safety function: The door switch automatically stops the breeze circulation, heating and Shaker when the box door is opened; the unique control Rotation speed circuit ensures a smooth start to prevent liquid splashing; the independent temperature limit alarm system automatically cuts off the heating over temperature; the circulating fan speed is automatically controlled to prevent sample volatilization; optional RS-485 and USB interface connection computer monitoring
5. Self-diagnosis function: LCD display fault information when the fault occurs
6. Multi-stage programmable control (optional): multi-stage temperature, speed, time synchronous programming, normal and programming mode optional
7. Convenient data processing (optional): can be connected to a printer or 485 Communication interface to record temperature and time Linear dispersion
8. Ultraviolet sterilization system: The ultraviolet sterilization lamp on the back wall of the box is regularly disinfected to kill circulating air floating bacteria and prevent pollution
Principle
The thermostatic Shaker uses a microcomputer PID Control system to precisely control the temperature and Oscillation Frequency. It is driven by a DC motor to achieve smooth oscillation, combined with a circulating fan to ensure uniform temperature in the box. During operation, the system can automatically adjust parameters and has a self-diagnosis function. When a fault occurs, it prompts information through the LCD screen. Optional functions support multi-segment programming and data recording for automatic control.
Applications
Cell fostering, fermentation, hybridization, biochemical research, cell tissue research, microbial cell fostering, strain fostering, laboratory pilot production
Standards
Fluorine-free design, environmentally friendly refrigerant without fluorine
Steps
1. Connect the power supply and turn on the device.
2. Set Temperature, Oscillation Frequency and Timing Parameters via Large Screen LCD Menu
3. Install special cradles or fixtures as required
4. Place the sample and close the box door
5. Start operation, the device automatically controls temperature and oscillation
6. After the experiment, it can be converted to incubator mode and continue to be used
7. Optional connection to computer or printer for data monitoring and recording
Notice
● Automatically stop breeze circulation, heating and Shaker when the box door is opened, please make sure the door is closed for normal operation
● Power supply voltage check before use meets AV220V 50HZ requirements
Avoid liquid spillage to prevent damage to the instrument
Regularly clean the liner and components of the box to maintain hygiene
● The system automatically cuts off heating when overheating, and needs to check the setting and environment
● Optional function requires additional configuration of interface equipment
● Pay attention to safety when using ultraviolet sterilization lamps and avoid direct exposure
