Overview

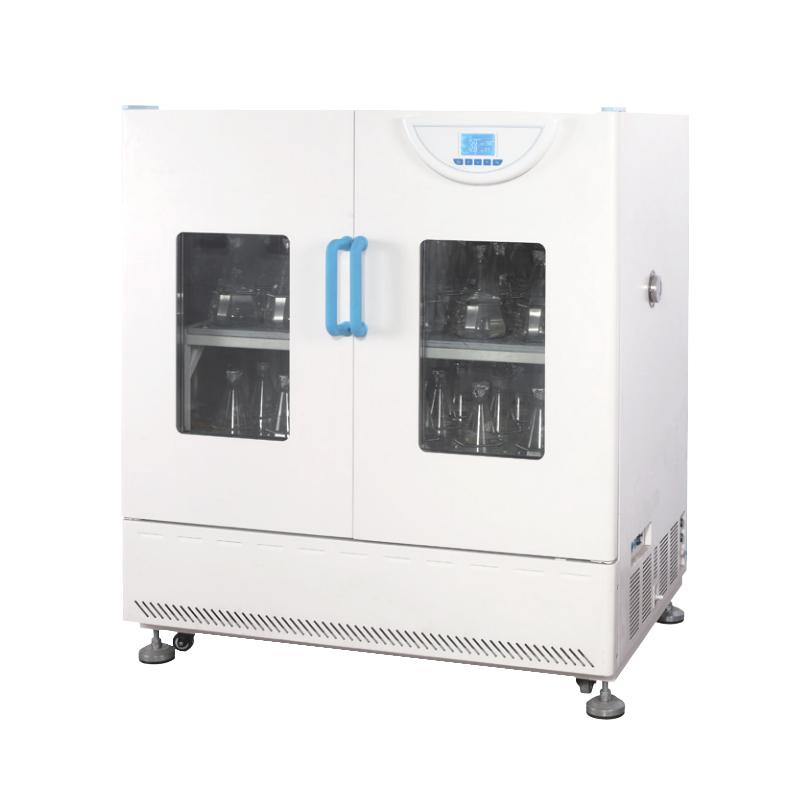

YIHENG HZQ-X500 double-decked large-scale thermostatic Shaker is a device that integrates thermostatic foster and oscillation functions. It adopts LCD screen display. Based on the company's more than ten years of design and manufacturing experience and the introduction of foreign technology, it is guided by user request and continuous technological innovation. It is widely used in the fields of cell foster, fermentation, hybridization, biochemistry and cell tissue research with high requirements for temperature and Oscillation Frequency. It supports the dynamic and static foster of microbial cells and various strains, especially suitable for laboratory pilot production.
Features
1. Humanized design: Incubator and Shaker are integrated, with a small footprint and a large bottle load; Large LCD screen, Menu Operating interface is easy to understand; Fluorine-free design; Large screen tempered thermal insulation observation window is easy to observe and insulate; A variety of special cradles and fixtures are easy to replace; liner, Shaker Table and shelf are made of 304 stainless steel for easy cleaning; the left side of the box is equipped with 25mm test holes for easy wiring.
2. Quality assurance: Parameters are automatically stored and restored in the event of a power outage; Microcomputer PID controls Temperature and Oscillation Frequency, with timing function; Key components such as Compressors and fans use brand products, environmentally friendly without fluorine refrigerants.
3. Continuous operation guarantee: low heat dissipation brushless DC motor, large starting torque, wide speed regulation, maintenance-free, can run continuously for a long time.
4. Safety function: automatic stop breeze circulation, heating and Shaker when the box door is opened; unique control Rotation speed circuit to ensure smooth start and prevent liquid splashing; independent temperature limit alarm system over temperature automatic cut off heating; circulating fan speed automatic control to prevent sample volatilization; optional RS-485 and USB interface to connect to computer monitoring.
5. Multi-stage programmable control (optional): multi-stage temperature, speed, time synchronous programming, optional normal and programming mode, simplify complex foster requirements.
6. Self-diagnosis function: The LCD screen displays fault information when the fault occurs.
7. Three eccentric shaft equilibrating drive: ensure that the sample Rotation speed is consistent, the structure is load-bearing and durable, and the Power is strong under full load and high speed.
8. Convenient data processing (optional): Can be connected to a printer or 485 interface to record temperature and time Linear dispersion.
Principle
The device precisely controls the temperature and Oscillation Frequency through a microcomputer PID Control system, combined with three eccentric axis equilibrating drive technology to ensure uniform oscillation. During operation, the circulating fan automatically adjusts the speed to maintain uniform temperature, and has safety mechanisms such as automatic stop function when the door is opened to prevent temperature overshoot and sample volatilization. Optional features support multi-stage programming and data processing for automated control.
Applications
Cell fostering, fermentation, hybridization, biochemistry, cell tissue research, microbial cell and strain fostering, laboratory pilot production
Standards
Fluorine-free design, environmentally friendly refrigerant without fluorine
Steps
1. Connect the power supply and ensure that the voltage is AC220V 50Hz.
2. Set the Temperature, Oscillation Frequency and Timing parameters through the large LCD screen and menu interface.
3. Install special cradles and fixtures as required, and place samples.
4. Start the equipment and observe the running status to ensure a smooth start.
5. Samples can be monitored through the observation window during operation, and the optional function can be connected to a computer or printer to record data.
6. After running, turn off the equipment and clean the liner and countertop.
Notice
When the box door is opened, some functions are automatically stopped to avoid temperature overshoot.
● Power supply voltage meets AC220V 50HZ requirements.
Check whether the cradle and fixture are firmly installed before use.
Avoid running at full load and high speed for a long time to prevent accidents.
● Regularly clean stainless steel liners and countertops to maintain hygiene.
● Check the LCD screen fault information when it malfunctions, and deal with it in time.
Optional functions require additional interfaces and equipment.
