Overview

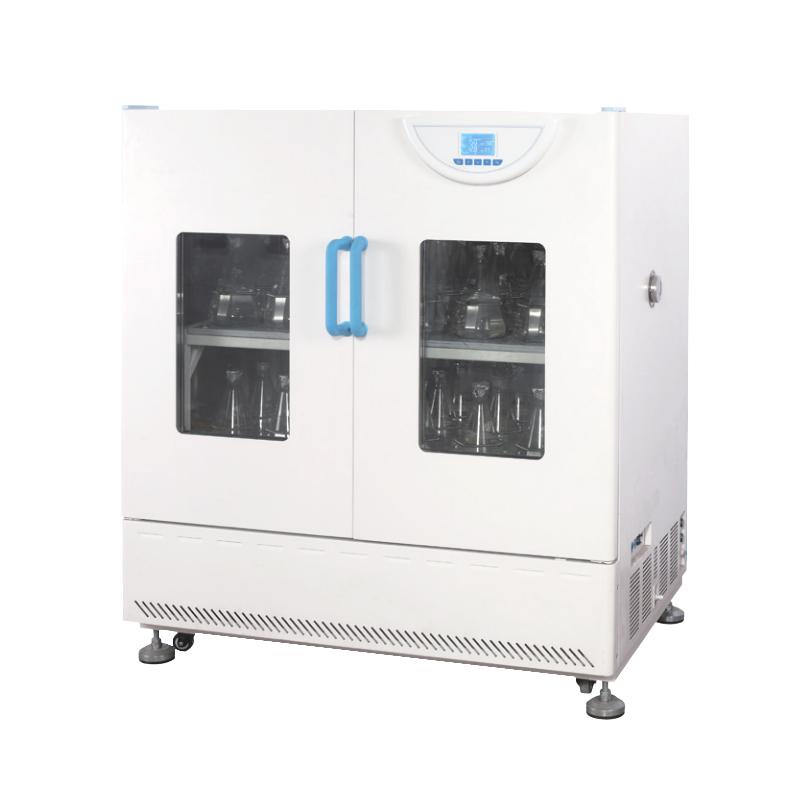

YIHENG HZQ-X700 double-decked large thermostatic Shaker is an advanced equipment integrating incubator and Shaker, using LCD screen display, based on the company's more than ten years of design and manufacturing experience, and the introduction of digestion foreign technology. The equipment is user request-oriented, constantly innovating, and is widely used in the fields of cell fostering, fermentation, hybridization, biochemistry and cell tissue research that have high requirements for temperature and Oscillation Frequency. It is especially suitable for laboratory pilot production, which can exercise and statically foster microbial cells and various strains.
Features
1. Humanized design: Incubator and Shaker are integrated, with a small footprint and a large bottle load; Large LCD screen, Menu Operating interface is easy to understand; Fluorine-free design; Large screen tempered thermal insulation observation window for easy observation of samples; A variety of special cradles and fixtures are easy to replace; liner, Shaker Table and shelf are made of 304 stainless steel for easy cleaning; the left side of the box is equipped with a 25mm test hole for easy wiring.
2. Quality assurance: parameters are automatically stored in the event of a power outage, and the original program is restored after power on; microcomputer PID controls temperature and Oscillation Frequency, with timing function; key components such as Compressors and circulating fans use brand products, environmentally friendly without fluorine refrigerant.
3. Continuous operation guarantee: low heat dissipation brushless DC motor, large starting torque, wide speed regulation, maintenance-free, can run continuously for a long time.
4. Safety functions: automatic stop of breeze circulation, heating and Shaker when the box door is opened; unique control Rotation speed circuit to ensure smooth start and prevent liquid splashing; independent temperature limit alarm system to automatically cut off heating; automatic control of circulating fan speed to avoid sample volatilization; optional RS-485 and USB interface to connect to computer monitoring data.
5. Multi-stage programmable control (optional): multi-stage temperature, speed, time synchronous programming, optional normal and programming mode, preset value and running value are displayed at the same time, simplifying complex foster requirements.
6. Self-diagnosis function: When the fault occurs, the LCD screen displays the fault information at a glance.
7. Three eccentric shaft equilibrating drive: ensure that the sample oscillates at the same Rotation speed, the structural design is load-bearing and durable, and the performance is strong at full load and high speed.
8. Convenient data processing (optional): Can be connected to a printer or 485 Communication interface, record temperature and time Linear dispersion, support data storage and playback.
Principle
The device uses a microcomputer PID Control system to precisely adjust the temperature and Oscillation Frequency, and ensures uniform oscillation of the sample on the oscillation tray through a three-eccentric axis equilibrating drive process. Low-heat dissipation brushless DC motors provide stable power and support long-term continuous operation. Safety mechanisms include automatic stop related functions when the box door is opened, independent temperature limit alarm and automatic fan speed control to ensure safe operation and sample integrity.
Applications
Cell fostering, fermentation, hybridization, biochemical research, cell tissue research, laboratory pilot production
Standards
Fluorine-free design, environmentally friendly refrigerant without fluorine
Steps
1. Connect the power supply and ensure that the voltage is AC220V 50Hz.
2. Open the device and set the Temperature, Oscillation Frequency and Timing parameters through the large LCD screen and Menu Operating interface.
3. Install special cradles and fixtures as required to place samples.
4. Start the equipment and monitor the running status; optional multi-segment programming mode for complex foster.
5. After the operation, turn off the equipment and clean the liner and countertop.
Notice
● Power supply voltage meets AC220V 50HZ requirements to avoid overload.
When the box door is opened, the device automatically stops some functions, and pay attention to safety during operation.
Avoid liquid spillage to prevent damage to the instrument.
● Regularly clean stainless steel liners and countertops to maintain hygiene.
During high-temperature or high-speed operation, monitor equipment status to prevent overheating or malfunction.
When using the optional function, follow the instructions to connect to a computer or printer to ensure accurate data transmission.
● Refer to the LCD display information for diagnosis when the fault occurs, and contact a professional for maintenance if necessary.
