Overview

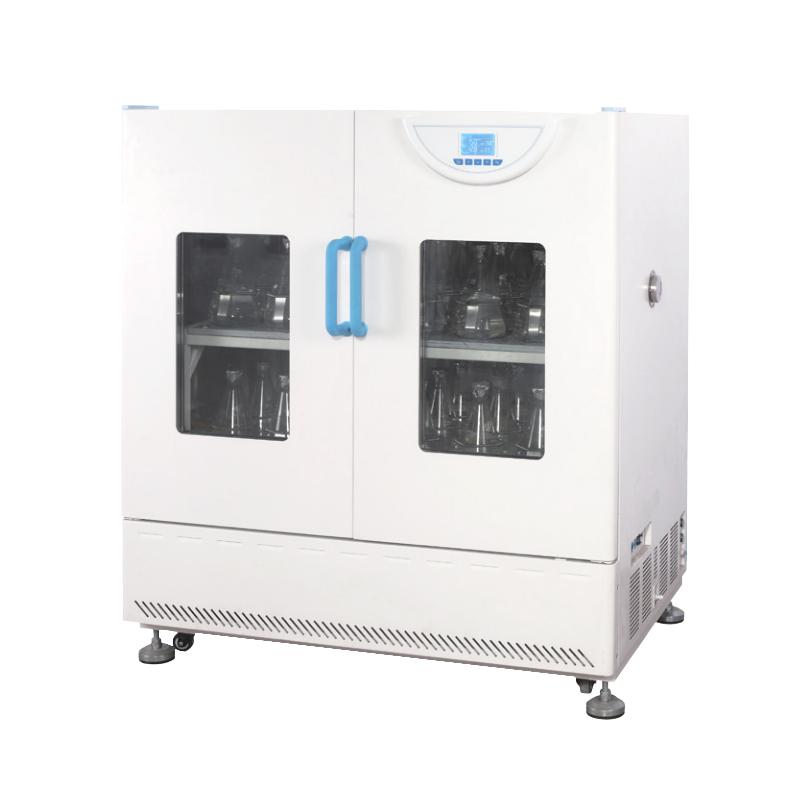

YIHENG HZQ-X500C double-decked large-scale thermostatic Shaker integrates more than ten years of design and manufacturing experience, introduces and digests foreign technologies, and is guided by user requests. It is widely used in cell fostering, fermentation, hybridization, biochemistry and cell tissue research that have high requirements for temperature and Oscillation Frequency. It can exercise or statically foster microbial cells and various strains, especially suitable for laboratory pilot production.
Features
1. Humanized design: set incubator and Shaker in one, small footprint, large bottle load; Large LCD screen, Menu Operating interface is easy to understand; Fluorine-free design; Large screen tempered thermal insulation observation window for easy observation of samples; A variety of special cradles and fixtures are easy to replace; 304 stainless steel liner, Shaker Table surface and shelf are easy to clean; 25mm test hole is equipped on the left side of the box.
2. Quality assurance: Parameters are automatically stored and restored in the event of a power outage; Microcomputer PID controls temperature and Oscillation Frequency, with timing function; Brand Compressor and circulating fan, environmentally friendly without fluorine refrigerant.
3. Continuous operation guarantee: low heat dissipation brushless DC motor, large starting torque, wide speed regulation, maintenance-free, can run continuously for a long time.
4. Safety functions: Automatic stop of breeze circulation, heating and Shaker when the box door is opened; Unique control Rotation speed circuit to ensure smooth start; Independent temperature limit alarm system to automatically cut off heating; Automatic control of circulating fan speed; Optional RS-485 and USB interface.
5. Multi-stage programmable control (optional): multi-stage temperature, speed, time synchronization programming to simplify complex foster requirements.
6. Self-diagnosis function: LCD display displays fault information.
7. Three eccentric shaft equilibrate drive: ensure uniform vibration of the sample, and the structural design is load-bearing and durable.
8. Convenient data processing (optional): Can be connected to a printer or 485 Communication interface to record temperature and time Linear dispersion.
Principle
The device uses microcomputer PID control technology to precisely adjust the temperature and Oscillation Frequency, and ensures uniform oscillation through a three-axis equilibrating drive system. During operation, the circulating fan automatically controls the speed to avoid sample volatilization, and has a self-diagnosis function to monitor the status of the equipment in real time.
Applications
Cell fostering, fermentation, hybridization, biochemistry, cell tissue research, microbial cell and strain fostering
Steps
1. Connect the power supply and ensure that the voltage is AC220V 50Hz.
2. Set Temperature, Oscillation Frequency and Timing parameters through the large LCD menu.
3. Install special cradles and fixtures as required to place samples.
4. Start the equipment and observe the running status to ensure a smooth start.
5. After running, turn off the power and clean the equipment.
Notice
When the box door is opened, the equipment automatically stops running to avoid temperature overshoot.
● Power supply voltage check before use.
Avoid running at full load and high speed for a long time to prevent equipment overload.
Regularly clean stainless steel parts to maintain hygiene.
In case of malfunction, check the fault information of the LCD screen and deal with it in time.
Optional functions require additional interfaces and equipment.
