Overview

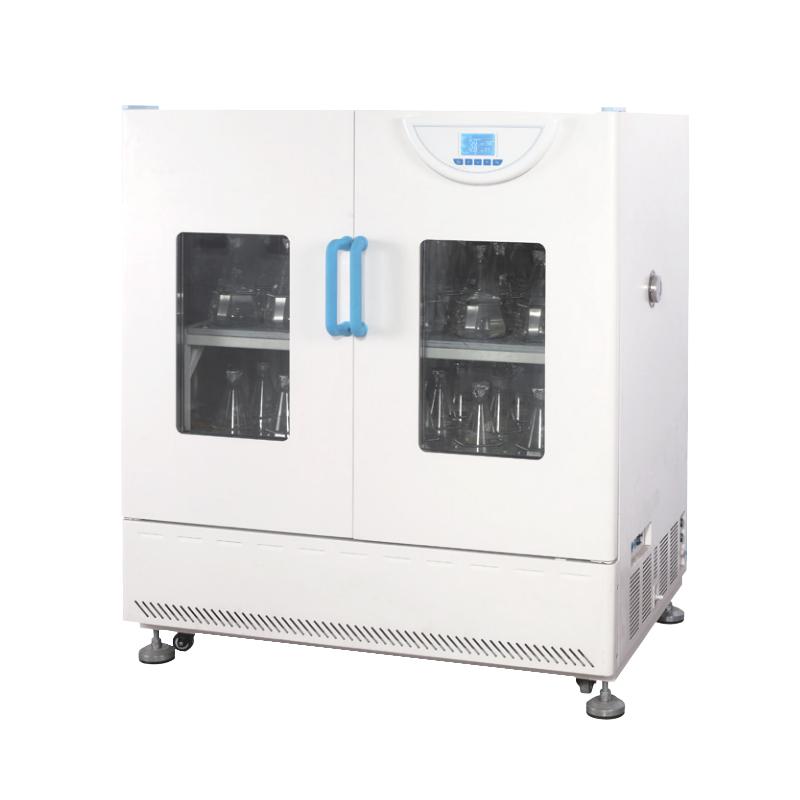

YIHENG HZQ-X700C double-decked large-scale thermostatic Shaker integrates more than ten years of design and manufacturing experience, introduces and digests foreign technologies, and is guided by user requests. It is widely used in cell fostering, fermentation, hybridization, biochemistry and cell tissue research that have high requirements for temperature and Oscillation Frequency. It can exercise or statically foster microbial cells and various strains, especially suitable for laboratory pilot production.
Features
1. Humanized design: Incubator and Shaker are integrated, with a small footprint and a large bottle load; Large LCD screen, Menu Operating interface is simple and easy to understand; Fluorine-free design; Large screen tempered thermal insulation observation window for easy observation of samples; A variety of special cradles and fixtures are optional, easy to replace; 304 stainless steel liner, Shaker Table surface and shelf are easy to clean; 25mm test hole on the left side of the box.
2. Quality assurance: parameters are automatically stored in the event of a power outage, and the original program is restored after power on; microcomputer PID controls temperature and Oscillation Frequency, with timing function; key components are brand products, environmentally friendly without fluorine refrigerant.
3. Continuous operation guarantee: low heat dissipation brushless DC motor, large starting torque, wide speed regulation, maintenance-free, can run continuously for a long time.
4. Safety functions: Automatic stop of breeze circulation, heating and Shaker when the box door is opened; Unique control Rotation speed circuit to ensure smooth start; Independent temperature limit alarm system to automatically cut off heating; Automatic control of circulating fan speed; Optional RS-485 and USB interface.
5. Multi-stage programmable control (optional): multi-stage temperature, speed, time synchronization programming to simplify complex foster requirements.
6. Self-diagnosis function: The LCD screen displays fault information when the fault occurs.
7. Three eccentric shaft equilibrate drive: ensure that the sample oscillates evenly and the structure is durable.
8. Convenient data processing (optional): Can be connected to a printer or 485 interface to record temperature and time Linear dispersion.
Principle
Microcomputer PID control technology is used to precisely adjust the temperature and Oscillation Frequency, and the equilibrate drive system is used to ensure uniform oscillation. During operation, the circulating fan automatically controls the speed to avoid sample volatilization, and the safety system automatically intervenes in abnormal situations to achieve stability foster.
Applications
Cell fostering, fermentation, hybridization, biochemistry, cell tissue research, microbial cell and strain fostering
Steps
1. Connect the power supply and turn on the device.
2. Set the Temperature, Oscillation Frequency and Timing parameters through the large LCD screen.
3. Place the sample and choose the appropriate cradle or fixture.
4. Start operation, and the device automatically controls temperature and oscillation.
5. After the run, remove the sample and clean the equipment.
Notice
• When the box door is opened, the equipment automatically stops running to avoid temperature overshoot.
• Power supply voltage AC220V 50HZ before use.
• Avoid liquid splashing to prevent damage to the instrument.
• Regularly clean stainless steel parts to maintain hygiene.
• Pay attention to Equipment Stability when operating at full load or high speed.
• Refer to the LCD display information for diagnosis when the fault occurs.
