Overview

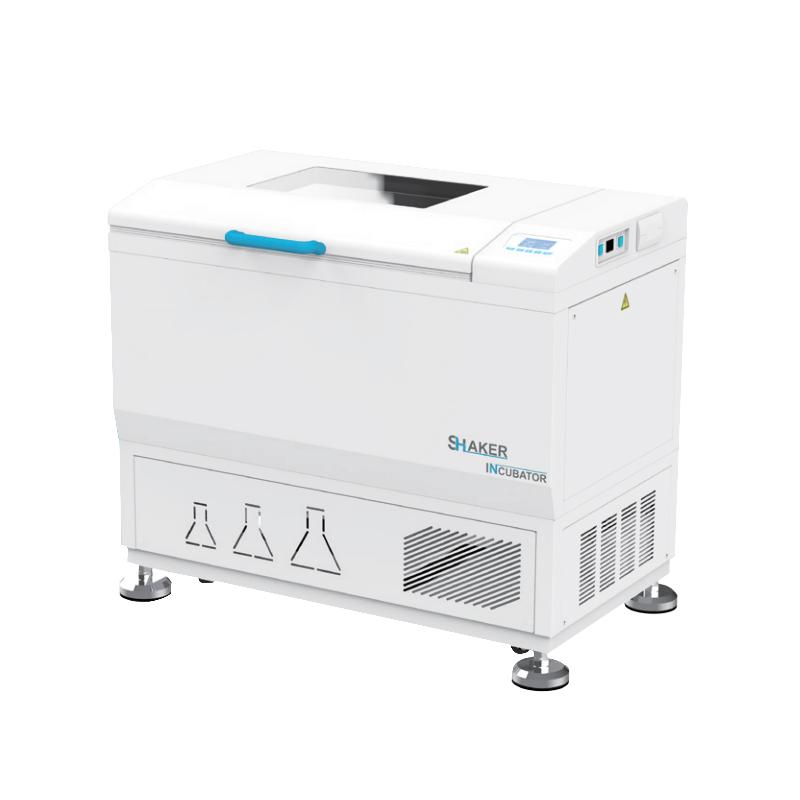

YIHENG HZQ-211 floor-to-ceiling thermostatic Shaker (LCD screen) is a new generation product. It combines more than ten years of design and manufacturing experience of the company to break through the defects of the existing China Shaker that cannot run continuously for a long time. It is widely used in cell fostering, fermentation, hybridization, biochemistry and cell tissue research that have high requirements for temperature and oscillation. It is especially suitable for pilot production. The design is extraordinary, and the manufacturing process is High Accuracy, ensuring that users have no worries.
Features
1. Humanized design: set incubator, Shaker in one, small footprint, large bottle capacity; Large screen LCD, Menu Operating interface, multiple sets of data displayed on one screen; Quiet operation; Fluorine-free design; Large screen tempered observation window, cabinet liner and Shaker Table surface are made of stainless steel, easy to clean.
2. Quality assurance: Parameters are automatically stored and restored in the event of a power outage; Microcomputer PID controls temperature and Oscillation Frequency, with timing function; Key components use brand products, environmentally friendly without fluorine refrigerant; Low heat dissipation brushless DC motor, large starting torque, wide speed regulation, maintenance-free.
3. Safety function: Automatic stop of breeze circulation, heating and Shaker when the box door is opened; Unique control Rotation speed circuit to ensure smooth start; Independent temperature limit alarm system to automatically cut off heating; Automatic control of circulating fan speed; Optional RS-485 and USB interface.
4. Three eccentric shaft equilibrating drive: ensure that the sample oscillates at the same Rotation speed, and the structure is durable.
5. Multi-stage programmable control (optional): multi-stage temperature, speed, time synchronization programming to simplify complex foster requirements.
6. Function expansion (optional): Lighting control and Humidity monitoring and control.
Principle
The product uses microcomputer PID to control temperature and Oscillation Frequency, and ensures that the samples on the oscillation tray oscillate at the same Rotation speed through a three-eccentric axis equilibrating drive process. Safety features include automatic stop system for box door opening, temperature limit alarm and automatic fan speed control for accurate and stable temperature control and oscillation.
Applications
Cell fostering, fermentation, hybridization, biochemistry, cell tissue research, pilot production
Steps
1. Connect the power supply and ensure that the voltage is AC220V 50Hz.
2. Set Temperature, Oscillation Frequency and Timing Parameters through the large LCD menu interface.
3. Place the sample on the Shaker Table, note that the standard configuration is 250ml * 28 bottles.
4. Start the equipment, the system automatically runs the setting program, monitors the temperature and Rotation speed.
5. Optional functions such as multi-stage programming or interface connection to the computer for data monitoring.
6. Turn off the equipment after use and clean the stainless steel liner and countertop.
Notice
• When the box door is opened, the equipment automatically stops running to avoid temperature overshoot.
• Ensure stable power supply to prevent sudden power outages from affecting parameter storage.
• Check the status of key components such as Compressors and fans before use.
• Avoid overload operation to maintain equipment performance and longevity.
• Regularly clean stainless steel parts to maintain hygiene.
• Optional features require additional configuration, such as lighting or Humidity control.
