Overview

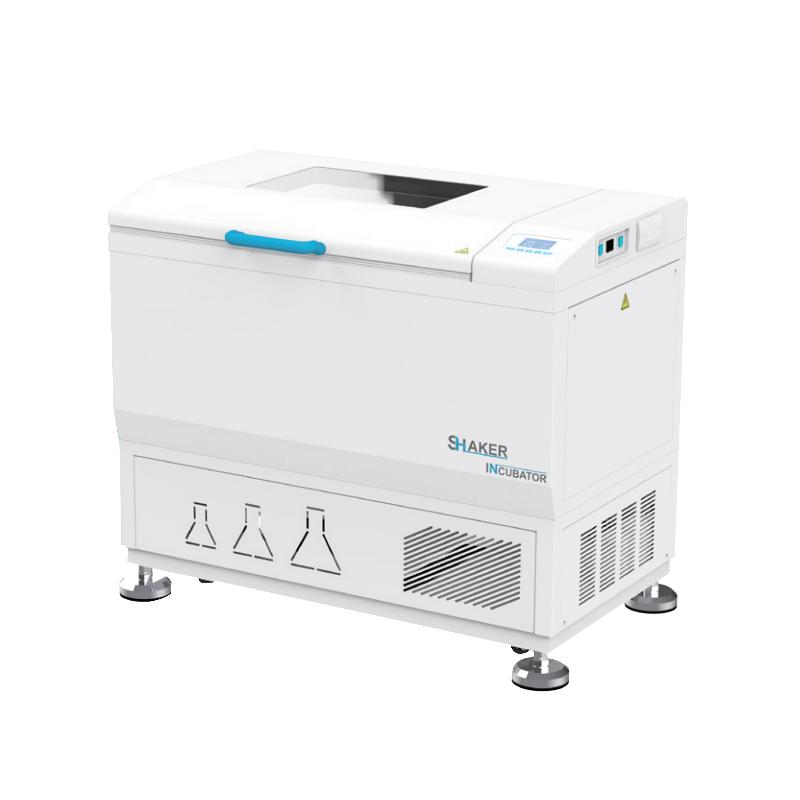

YIHENG HZQ-311 floor-to-ceiling thermostatic Shaker (LCD screen) is a new generation of equipment that integrates incubator and Shaker. Based on the company's more than ten years of design and manufacturing experience, it breaks through the defect that China Shaker cannot operate continuously for a long time. It is widely used in cell fostering, fermentation, hybridization, biochemistry and cell tissue research that have high requirements for temperature and oscillation. It is especially suitable for pilot production. The design is extraordinary and the manufacturing process is High Accuracy, ensuring that users have no worries.
Features
1. Humanized design: Incubator and Shaker are integrated, with a small footprint and a large bottle load; Large LCD screen, Menu Operating interface, multiple sets of data are displayed on one screen, easy to understand; Quiet operation; Fluorine-free design; Large screen tempered observation window, stainless steel liner and Shaker Table surface, easy to clean.
2. Quality assurance: Parameters are automatically stored in the event of a power outage, and the original program is restored after power on; Microcomputer PID controls temperature and Oscillation Frequency, with timing function; Brand Compressor and circulating fan are used, environmentally friendly without fluorine refrigerant, continuous operation is guaranteed; Low heat dissipation brushless DC motor, large starting torque, wide speed regulation, maintenance-free.
3. Safety functions: automatic stop of breeze circulation, heating and Shaker when the box door is opened; unique control Rotation speed circuit to ensure smooth start and prevent liquid splashing; independent temperature limit alarm system, automatic cutting off heating over temperature; automatic control of circulating fan speed to avoid sample volatilization; optional RS-485 and USB interface, connected to computer monitoring data.
4. Three eccentric shaft equilibrating drive: ensure that the sample oscillates at the same Rotation speed, load-bearing and durable structure design, strong performance under full load and high speed.
5. Multi-stage programmable control (optional): multi-stage temperature, speed, time synchronous programming, normal and programming mode optional, preset value and running value display at the same time, simplify complex foster requirements.
6. Function expansion (optional): light control (simulate natural growth environment), Humidity monitoring and control.
Principle
The device uses a microcomputer PID Control system to precisely control the temperature and Oscillation Frequency, and ensures that all samples on the oscillating tray oscillate evenly at the same Rotation speed through a three-eccentric axis equilibrating drive process. During operation, the circulating fan speed is automatically adjusted to avoid sample volatilization, while safety features such as temperature limit alarm and gating mechanism ensure stable operation of the equipment.
Applications
Cell fostering, fermentation, hybridization, biochemistry, cell tissue research, pilot production
Steps
1. Connect the power supply (AC220V 50HZ).
2. Set parameters such as Temperature, Oscillation Frequency and Timing through Large Screen LCD and Menu Operating interface.
3. Place the sample on the Shaker Table to ensure that the load does not exceed the standard configuration (e.g. 250ml * 45).
4. Start the device, observe the operating status, and use optional functions such as programming control or Interface if necessary.
5. After running, turn off the equipment and clean the stainless steel liner and countertop.
Notice
When the box door is opened, the device automatically stops some functions to avoid temperature overshoot.
● Power supply voltage is checked before use (AC220V 50HZ).
Avoid overloading and ensure that the sample is placed smoothly to prevent liquid from splashing out.
Regularly clean equipment to maintain the hygiene of stainless steel components.
During high-temperature or high-speed operation, pay attention to safety and prevent accidents.
Optional features require additional configuration, such as RS-485 interface or lighting control.
