Overview

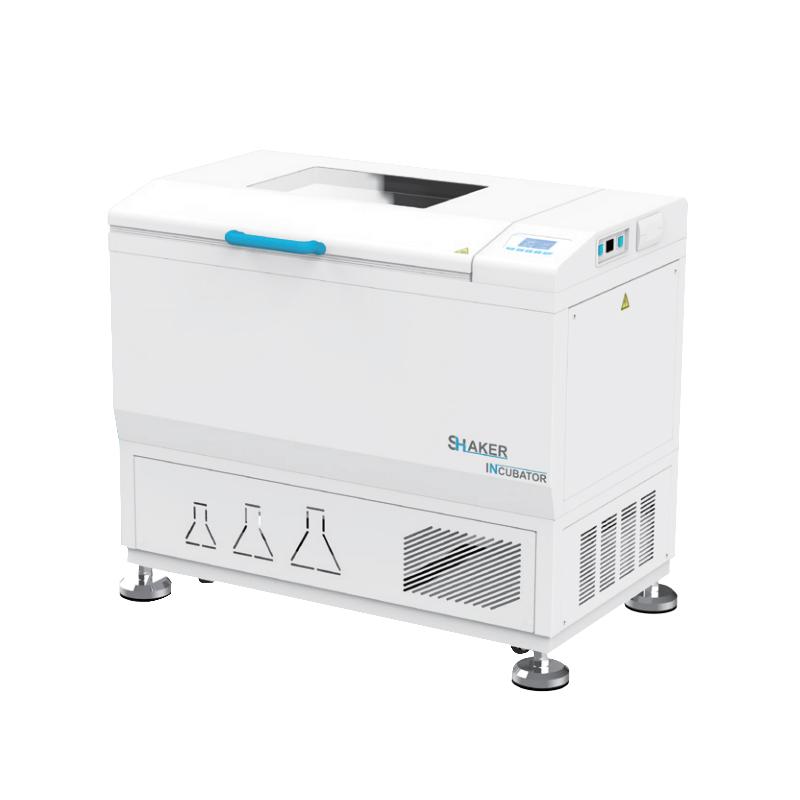

YIHENG HZQ-211C floor-to-ceiling thermostatic Shaker (LCD screen) is a new generation of equipment that integrates incubator and Shaker. Through more than ten years of design and manufacturing experience, it has broken through the defect that China Shaker cannot operate continuously for a long time. It is widely used in the fields of cell fostering, fermentation, hybridization, biochemistry and cell tissue research that have high requirements for temperature and oscillation. It is especially suitable for pilot production. The design is extraordinary and the manufacturing process is High Accuracy.
Features
1. Humanized design: Incubator and Shaker are integrated, with a small footprint and a large bottle load; Large LCD screen, Menu Operating interface, multiple sets of data are displayed on one screen; Quiet operation; Fluorine-free design; Large screen tempered observation window, stainless steel liner and Shaker Table surface for easy cleaning.
2. Quality assurance: Parameters are automatically stored and restored in the event of a power outage; Microcomputer PID control temperature and Oscillation Frequency, with timing function; Brand Compressor and circulating fan, environmentally friendly without fluorine refrigerant; Low heat dissipation brushless DC motor, large starting torque, wide speed regulation, maintenance-free.
3. Safety functions: Automatic stop of breeze circulation, heating and Shaker when the box door is opened; Unique control Rotation speed circuit to ensure smooth start and prevent liquid splashing; Independent temperature limit alarm system to automatically cut off heating; Automatic control of circulating fan speed to prevent sample volatilization; Optional RS-485 and USB interface to connect to computer monitoring.
4. Three eccentric shaft equilibrating drive: ensure that the sample oscillates at the same Rotation speed, load-bearing and durable structure design, strong performance under full load and high speed.
5. Multi-stage programmable control (optional): multi-stage temperature, speed, time synchronous programming, optional normal and programming mode, simplify complex foster requirements.
6. Function expansion (optional): Light control simulates natural growth environment; Humidity monitoring and control.
Principle
The device precisely controls the temperature and Oscillation Frequency through a microcomputer PID Control system, combined with a three-eccentric shaft equilibrating drive process to ensure uniform oscillation. During operation, the system automatically adjusts the circulating fan speed to prevent sample volatilization, and has safety mechanisms such as automatic stop of heating and oscillation when the box door is opened, and an independent temperature limit alarm system to ensure safety.
Applications
Cell fostering, fermentation, hybridization, biochemistry, cell tissue research, pilot production
Standards
Fluorine-free design, environmentally friendly refrigerant without fluorine
Steps
1. Connect the power supply AC220V 50HZ.
2. Set Temperature, Oscillation Frequency and Timing Parameters through Large Screen LCD Menu.
3. Place the sample on a vibrating tray to ensure uniform distribution.
4. Start the device and the system will automatically run the setting program.
5. During operation, real-time data can be monitored through the display screen, or connected to a computer for monitoring through an optional interface.
6. After the operation is completed, the device automatically stops or shuts down according to the timing settings.
Notice
• When the box door is opened, the equipment automatically stops heating and oscillation to avoid temperature overshoot.
• Ensure that the sample is placed smoothly to prevent liquid splashing from damaging the instrument.
• Regularly clean the stainless steel liner and Shaker Table to maintain hygiene.
• Power supply voltage check before use meets AC220V 50HZ requirements.
• When the temperature limit is exceeded, the independent alarm system will automatically cut off the heating to ensure safety.
• Avoid running for a long time under full load and high speed to prolong the life of the equipment.
• Optional features such as Lighting and Humidity Control are subject to instructions.
