Overview

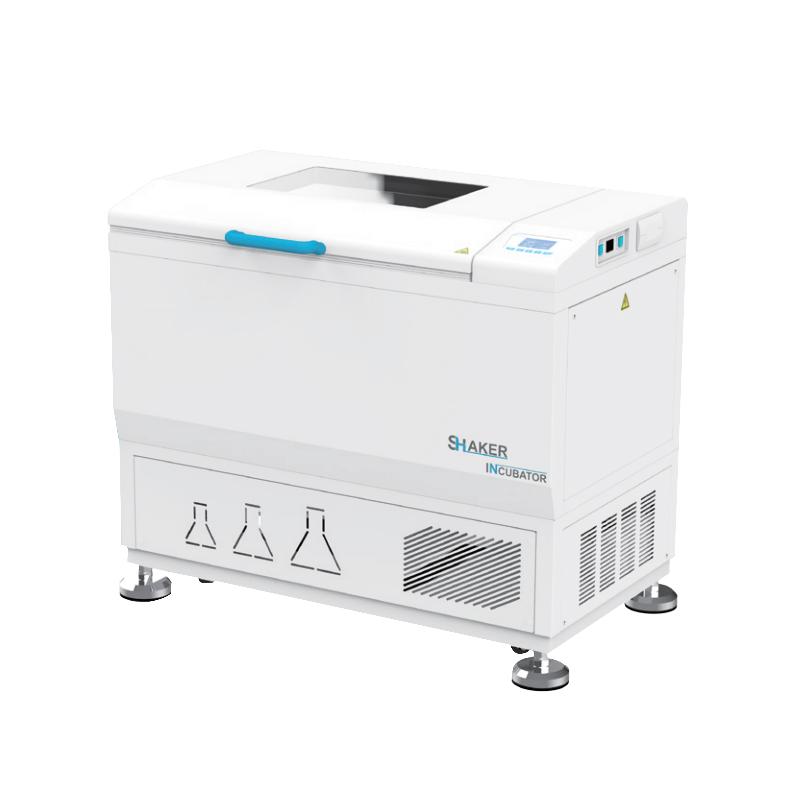

YIHENG HZQ-311C floor-to-ceiling thermostatic Shaker (LCD screen) is a new generation of equipment that integrates incubator and Shaker. Based on the company's more than ten years of design and manufacturing experience, it breaks through the defect that China Shaker cannot operate continuously for a long time. It is widely used in cell fostering, fermentation, hybridization, biochemistry and cell tissue research that have high requirements for temperature and oscillation. It is especially suitable for pilot production. The design is extraordinary, and the manufacturing process is High Accuracy, ensuring that users have no worries.
Features
1. Humanized design: integrates incubator and Shaker, occupies a small area, and has a large bottle load; large-screen LCD screen, menu-type Operating interface, multiple sets of data are displayed on one screen, simple and easy to understand; quiet operation; fluorine-free design; large-screen tempered observation window, the inner tank of the box and the Shaker Table are made of stainless steel, which is easy to clean.
2. Quality assurance: parameters are automatically stored in the event of a power outage, and the original program is restored after power on; microcomputer PID controls temperature and Oscillation Frequency, with timing function; key components such as Compressor and circulating fan use brand products, environmentally friendly without fluorine refrigerant; low heat dissipation brushless DC motor, large starting torque, wide speed regulation, maintenance-free, and breaks through the defects of long-term continuous operation.
3. Safety functions: automatic stop of breeze circulation, heating and Shaker when the box door is opened; unique control Rotation speed circuit to ensure smooth start and prevent liquid splashing; independent temperature limit alarm system, automatic cutting off heating over temperature; automatic control of circulating fan speed to avoid sample volatilization; optional RS-485 and USB interface, connected to computer monitoring data.
4. Three eccentric shaft equilibrating drive: ensure that the sample oscillates at the same Rotation speed, load-bearing and durable structure design, strong performance under full load and high speed.
5. Multi-stage programmable control (optional): multi-stage temperature, speed, time synchronous programming, normal and programming mode optional, preset value and running value display at the same time, simplify complex foster requirements, realize automatic control.
6. Function expansion (optional): light control (simulate natural growth environment); Humidity monitoring and control.
Principle
The device uses microcomputer PID control technology to precisely adjust the temperature and Oscillation Frequency, and ensures uniform oscillation of the sample on the oscillating tray through a three-axis equilibrate drive system. During operation, the circulating fan speed is automatically controlled to avoid sample volatilization, and safety functions such as independent temperature limit alarm and automatic stop mechanism for door opening ensure safe operation.
Applications
Cell fostering, fermentation, hybridization, biochemistry, cell tissue research, pilot production
Steps
1. Connect the power supply and ensure that the voltage is AC220V 50Hz.
2. Open the device and set the Temperature, Oscillation Frequency and Timing parameters through the large LCD menu.
3. Place the sample on the oscillating tray to ensure uniform distribution.
4. Start the equipment, monitor the running status, and connect the computer monitoring data through the optional interface if necessary.
5. After running, turn off the equipment and clean the stainless steel liner and countertop.
Notice
• When the box door is opened, the equipment automatically stops running to avoid temperature overshoot.
• Ensure that the sample is placed smoothly to prevent liquid splashing from damaging the instrument.
• Regularly inspect critical components such as Compressors and fans to ensure proper operation.
• Use environmentally friendly refrigerants without fluorine, pay attention to health and environment safety.
• In the case of overheating, the equipment automatically cuts off the heating without manual intervention.
• Avoid operating in humid environments to prevent affecting equipment performance.
