Overview

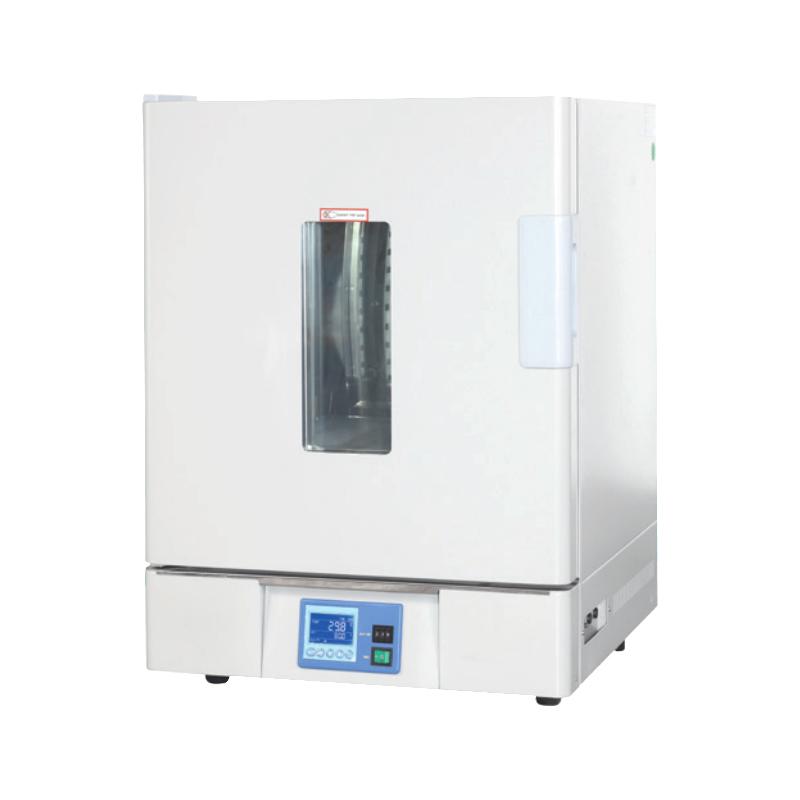

YIHENG BPG-9056B precision blast drying oven is a laboratory equipment with LCD display, with precise temperature control and multi-stage programming function. The equipment provides RT + 10~ 200 ℃/RT + 10~ 250 ℃ Temperature range, Temperature resolution up to 0.1 ℃, Temperature Fluctuation +/- 1 ℃, Temperature Uniformity +/- 1.5%, Inner Chamber dimensions 375 * 370 * 370mm, volume 50L, suitable for various drying, heating and thermostatic experiments.
Features
1. Humanized design: large-screen LCD screen, multiple sets of data are displayed on one screen, the menu-type Operating interface is simple and easy to understand; mirror stainless steel liner, four corners and half arc transition, shelf bracket free loading and unloading, easy to clean.
2. Multi-segment programmable controller: Multi-segment liquid crystal programmable controller simplifies the complex test process and realizes automatic control and operation; can set parameters such as temperature, circulating wind speed, time and heating rate, support layer control and preset automatic switch function; preset 7 groups of 63 steps can be programmed, each group of 9 steps, setting time 0~ 5999 minutes.
3. Convenient data processing (optional): can be connected to the printer, 485 Communication interface or USB data transfer interface, support computer and printer to record temperature and time, easy data storage and playback.
4. Safety function: box wall and door thickening design to reduce surface temperature; independent temperature limit alarm system sound and light alarm prompt; high temperature and over-temperature alarm.
5. Good energy-saving design: comprehensive safety performance design to prevent high energy consumption; new synthetic silicon sealing strip effectively prevents heat loss, prolongs the life of heating components, and reduces thermal Power by more than 25%.
Principle
Precision blast drying oven generates heat through an electric heating system, combined with a blast device to circulate hot air inside the studio to ensure uniform temperature distribution. Multi-stage programmable controller automatically adjusts parameters such as temperature, time and wind speed to achieve accurate temperature control and programmed operation, suitable for various drying and thermostatic processes.
Applications
Laboratory drying, material heating, thermostatic experiments, Sample Handling, scientific research testing
Steps
1. Connect the power supply AC220V 50HZ.
2. Set parameters such as temperature, time, and wind speed through the LCD menu.
3. Optional connection to a printer or computer for data recording.
4. Start the device and automatically run the preset program.
5. Monitor the operating status and handle alarm prompts if necessary.
6. Turn off the equipment after the experiment.
Notice
● Power supply voltage check before use meets AC220V 50HZ requirements.
● Temperature range RT + 10~ 200 ℃/RT + 10~ 250 ℃ when setting parameters.
Pay attention to the independent temperature limit alarm system and deal with sound and light alarms in a timely manner.
● Regularly clean the studio and use removable shelves for easy maintenance.
Avoid over-temperature operation to prevent equipment damage.
● When the data processing function is selected, connect the external device correctly.
