Overview

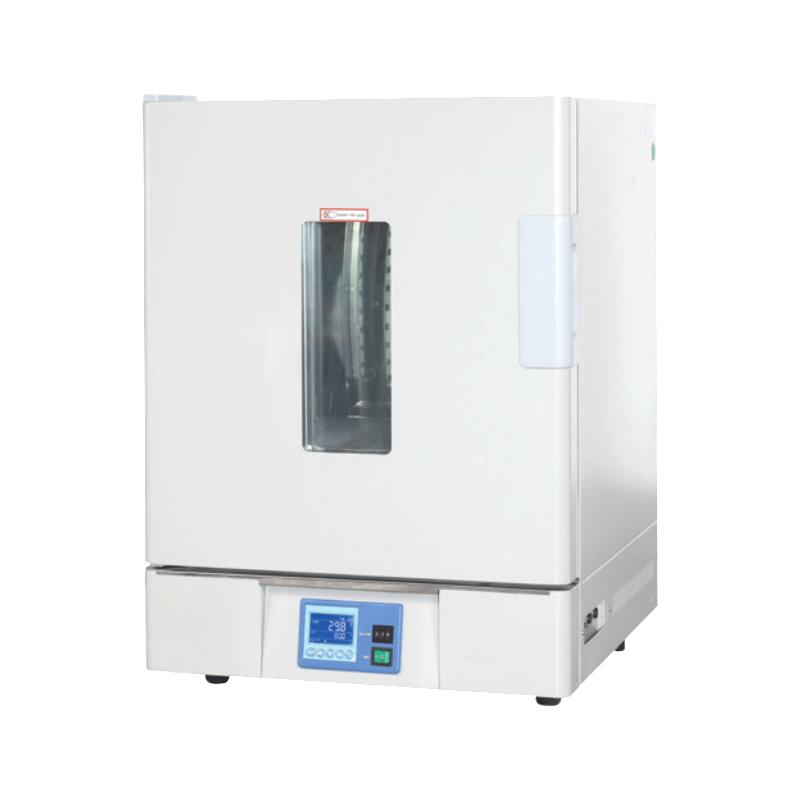

The YIHENG BPG-9106B precision blast drying oven (LCD) is a laboratory device with a mirrored stainless steel liner and user-friendly design, featuring a multi-stage programmable controller and comprehensive safety features for precise temperature control and long-term operation.
Features
1. Humanized design: large screen LCD screen, multiple sets of data one screen display, menu Operating interface; Mirror stainless steel liner, four corners and half arc transition, shelf bracket can be freely loaded and unloaded, easy to clean.
2. Multi-segment programmable controller: multi-segment LCD programmable controller, a variety of parameters one-screen display, menu Operating interface; can set temperature, circulating wind speed, time and heating rate and other parameters, support temperature rise layer control and automatic boot, standby, shutdown function; preset 7 groups of 63 steps can be programmed, each group of 9 steps, setting time 0~ 5999 minutes.
3. Convenient data processing (optional): can be connected to the printer, 485 Communication interface or USB data transfer interface (U disk), use the computer and printer to record the temperature and time.
4. Safety function: The thickened design of the box wall and door ensures that the outer surface temperature is low; independent temperature limit alarm system, sound and light alarm prompt; high temperature and over-temperature alarm.
5. Good energy-saving design: comprehensive safety performance design to prevent high energy consumption; new synthetic silicon sealing strip effectively prevents heat loss, prolongs the life of heating components, and reduces thermal Power by more than 25%.
Principle
The drying oven automatically controls parameters such as temperature, circulating wind speed and time through a multi-stage programmable controller to achieve accurate temperature adjustment and layer heating to ensure Temperature uniformity and Stability in the working room.
Applications
Laboratory, scientific research, industrial drying
Steps
1. Connect the power supply and ensure that the voltage is AC220V 50Hz.
2. Turn on the device, use the large-screen LCD screen and menu Operating interface to set parameters such as temperature and time.
3. Program multiple programs as needed, with a maximum of 9 steps per group, and set the time from 0 to 5999 minutes.
4. Start the equipment, monitor the operating status, and deal with any alarms promptly.
5. Turn off the equipment after use and clean the studio.
Notice
● Power supply voltage matching AC220V 50HZ.
● Pay attention to the surface temperature of the box during operation to avoid burns.
Regularly check the sealing strip and heating element to prevent heat loss.
Check and deal with the alarm system immediately when it is triggered.
● When cleaning the studio, removable shelf bracket for cleaning.
