Overview

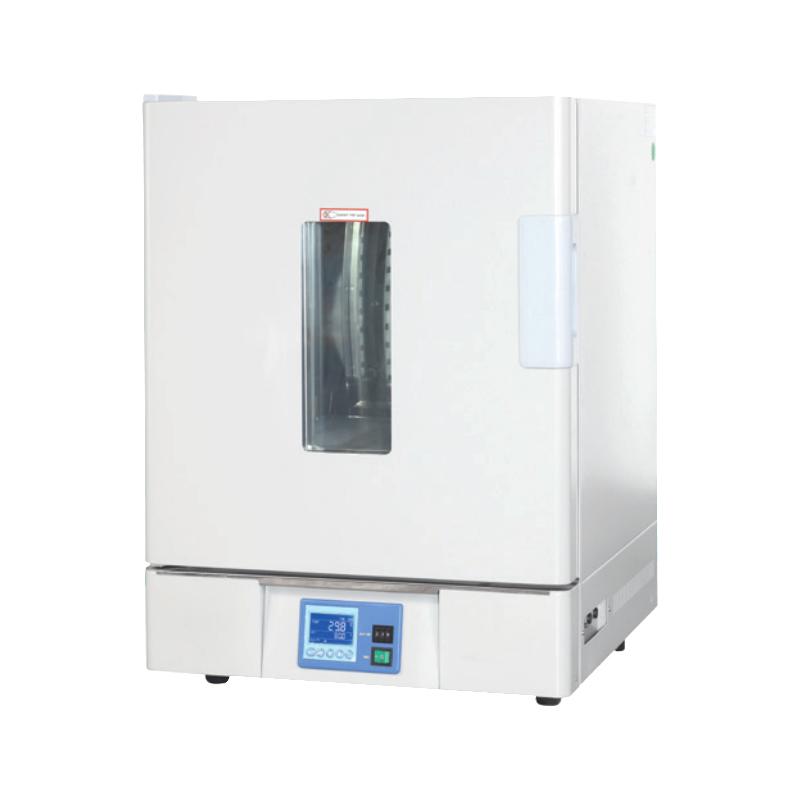

YIHENG BPG-9156B precision blast drying oven (LCD) is a drying equipment with mirror stainless steel liner and LCD screen, with multi-stage programmable control function. Temperature range is RT + 10~ 200 ℃/RT + 10~ 250 ℃, Temperature resolution is 0.1 ℃, Inner Chamber dimensions are 560 * 530 * 595mm, volume 175L, suitable for a variety of drying and testing needs.
Features
1. Humanized design: large-screen LCD screen, multiple sets of data are displayed on one screen, the menu-type Operating interface is simple and easy to understand; mirror stainless steel liner, four corners and a half arc transition, free loading and unloading of shelf brackets for easy cleaning.
2. Multi-segment programmable controller: Multi-segment liquid crystal programmable controller simplifies the complex test process and realizes automatic control and operation; can set parameters such as temperature, circulating wind speed, time and heating rate, support layer control and automatic switch function; preset 7 groups of 63 steps can be programmed, each group of 9 steps, setting time 0~ 5999 minutes.
3. Convenient data processing (optional): It can be connected to a printer, 485 Communication interface or USB data transfer interface, record temperature and time with a computer and printer, and support data storage and playback.
4. Safety function: box wall and door thickening design to reduce surface temperature; independent temperature limit alarm system sound and light alarm prompt; high temperature and over-temperature alarm.
5. Good energy-saving design: comprehensive safety performance design to prevent high energy consumption; new synthetic silicon sealing strip effectively prevents heat loss, prolongs the life of heating components, and reduces thermal Power by more than 25%.
Principle
Precision blast drying oven generates uniform hot air in a closed working room through built-in heating elements and blast system to achieve material drying. Multi-stage programmable controller automatically adjusts temperature, wind speed and time parameters to ensure accurate temperature control, slowly rising from the initial temperature, supporting layer control to meet complex test requirements.
Applications
Drying, test
Steps
1. Connect the power supply and set the parameters of the multi-stage programmable controller, including temperature, circulating wind speed, time, and heating rate.
2. Preset automatic boot, standby or shutdown functions as required, as well as layer control programs.
3. Start the device and monitor the data on the LCD screen to ensure normal operation.
4. Optional connection to a printer or computer interface for data recording and storage.
5. After use, shut down and clean the studio according to the program.
Notice
● Power supply voltage AC220V 50HZ before use to avoid overload.
● Pay attention to the surface temperature of the box during operation to prevent burns.
Regularly check sealing strips and heating elements to ensure energy saving and safety performance.
The alarm system is triggered immediately to prevent accidents.
● When cleaning the studio, remove the shelf first to avoid damage to the liner.
