Overview

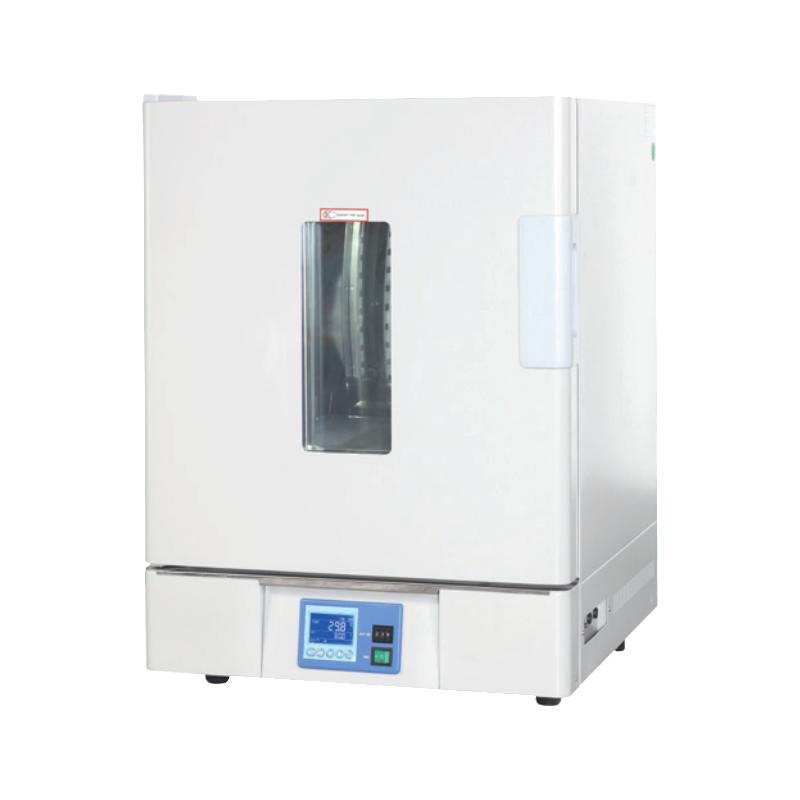

YIHENG BPG-9206B precision blast drying oven (LCD display) is a mirror stainless steel liner and humanized design of drying equipment, with multi-stage programmable control function, Temperature range RT + 10~ 200 ℃/RT + 10~ 250 ℃, Temperature resolution 0.1 ℃, suitable for drying, heating and other treatment in laboratory and industrial fields.
Features
1. Humanized design: large-screen LCD screen, multiple sets of data are displayed on one screen, the menu-type Operating interface is simple and easy to understand; mirror stainless steel liner, four corners and half arc transition, shelf bracket can be freely loaded and unloaded, easy to clean.
2. Multi-segment programmable controller: multi-segment LCD programmable controller, a variety of parameters one-screen display, simplify the complex test process; can set temperature, circulating wind speed, time and heating rate and other parameters, support layer control and automatic switch function; preset 7 groups of 63 steps can be programmed, each group of 9 steps, time setting range 0~ 5999 minutes.
3. Convenient data processing (optional): can be connected to the printer, 485 Communication interface or USB data transfer interface (U disk), support computer and printer to record temperature and time, easy data storage and playback.
4. Safety function: box wall and door thickened design, low surface temperature; independent temperature limit alarm system, sound and light alarm prompt; high temperature and over-temperature alarm.
5. Good energy-saving design: comprehensive safety performance design to prevent high energy consumption; new synthetic silicon sealing strip effectively prevents heat loss, prolongs the life of heating components, and reduces thermal Power by more than 25%.
Principle
The drying oven precisely controls the temperature, circulating wind speed and time parameters through a multi-stage programmable controller to achieve automatic operation; the heating element is used to heat the studio, and the temperature is evenly distributed through the circulating air speed to ensure that the temperature is evenly distributed, and the layer heating function is supported. Slow temperature rise from the initial temperature to meet complex test requirements.
Applications
Laboratory, industrial field
Steps
1. Connect the power supply and ensure that the voltage is AC220V 50Hz.
2. Turn on the device and use the large-screen LCD to set parameters such as temperature, circulating wind speed, and time.
3. Program multiple programs as needed, with a maximum of 9 steps per group, and set the time from 0 to 5999 minutes.
4. Start the equipment, monitor the operating status, and deal with any alarms promptly.
5. Turn off the equipment after use and clean the studio.
Notice
● Power supply voltage meets AC220V 50HZ requirements.
● Pay attention to the surface temperature of the box during operation to avoid burns.
● Regularly check the sealing strip to prevent heat loss.
When the alarm system is triggered, immediately check and handle any abnormalities.
● When cleaning the studio, remove the shelf bracket for cleaning.
