Overview

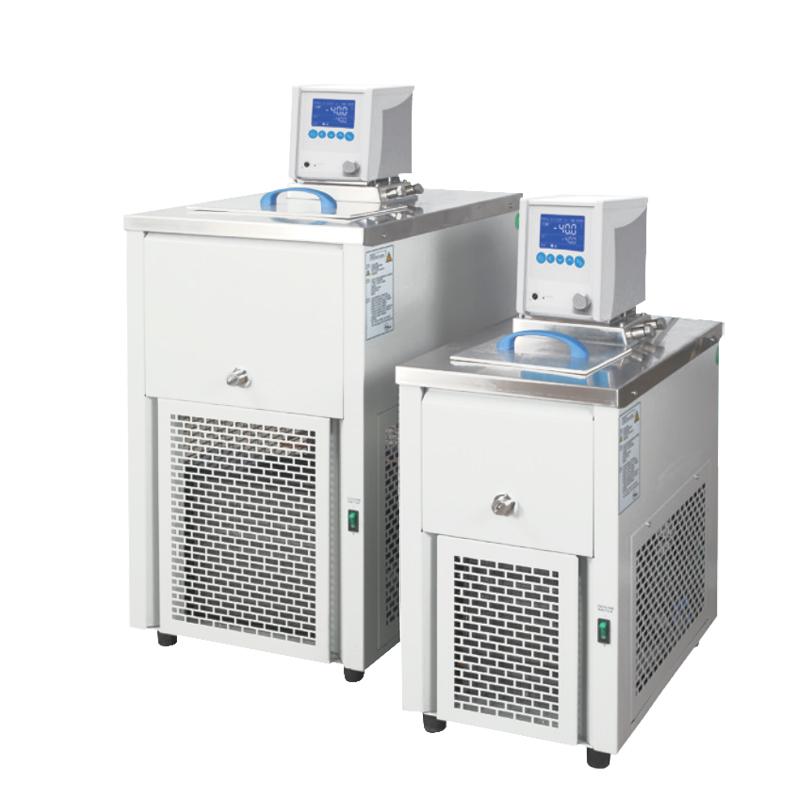

YIHENG MPE-50C low temperature circulating water tank is a new generation of constant temperature water bath system, integrating the company's many years of design and production experience, the introduction of digestion of German technology, the main parts are imported products, with high quality, reliability, stability and other characteristics, widely used in petroleum, chemical, life science, Measurement, light industry and scientific research and other fields.
Features
1. Intelligent microcomputer temperature LCD controller, high temperature control accuracy, environmentally friendly refrigerant, Compressor, circulating pump and heating device and other key components are imported products.
2. Over-temperature, low-temperature sound and light tracking alarm and liquid level protection functions ensure that samples are reliably protected without accidents.
3. Using imported brand Compressor, it has the characteristics of low noise, fast cooling, high efficiency and low energy consumption.
4. Equipped with a powerful pressure suction pump to provide a thermostatic source for the peripheral groove.
5. Equipped with a connecting port for external bath.
6. Can be connected to a printer, 485 Communication interface or USB data transfer interface (U disk), use a computer and printer to record temperature and time Linear dispersion, providing a strong guarantee for data storage and playback during the test (optional).
7. Microcomputer program controls temperature, time and heating rate, and conducts thermostatic test at extremely fast speed.
8. 7 sets of 63 steps can be preset, each set time is 1-99 hours and 59 minutes, and the Rotation speed of the circulating pump can be adjusted.
Principle
The product precisely controls the temperature through an intelligent microcomputer temperature LCD controller, adopts imported Compressors and heaters to achieve rapid cooling and heating. The circulating pump provides a stable circulating water flow to ensure uniform temperature in the tank. Over-temperature, low-temperature sound and light tracking alarm and liquid level protection functions monitor the system status in real time to ensure sample safety.
Applications
Petroleum, Chemical, Life Science, Measurement, Light Industry, Scientific Research
Steps
1. Connect the power supply and ensure that the voltage is AC220V50HZ.
2. Fill with an appropriate amount of liquid, and the filling volume is 4.5L.
3. Set the microcomputer controller parameters, including Temperature range (-50~ 100 ℃), time (1-99 hours 59 minutes per group) and heating rate.
4. Preset 7 sets of 63-step programmable programs as required.
5. Start the device, monitor the temperature and alarm function.
6. Optional connection to a printer or computer for data recording.
Notice
• Power supply voltage check before use in accordance with AC220V50HZ requirements.
• Make sure that the filling volume does not exceed 4.5L to avoid overflow.
• Pay attention to the over-temperature and low-temperature alarm functions, and deal with abnormal situations in a timely manner.
• Maintain critical components such as Compressors, circulation pumps and heaters regularly.
• When the data processing function is selected, connect the interface device correctly.
