Overview

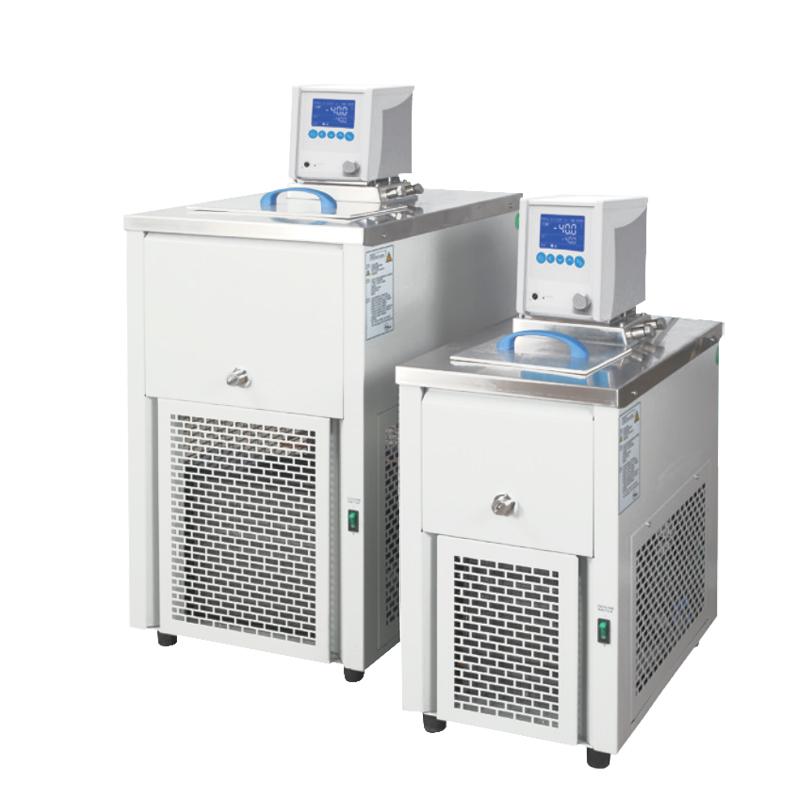

YIHENG MPGE-10C low temperature circulating water tank is a new generation of constant temperature water bath system, integrating the company's many years of design and production experience, the introduction of digestion of German technology, the main parts are imported products, with high quality, reliability, stability and other characteristics, widely used in petroleum, chemical, life science, Measurement, light industry and scientific research and other fields.
Features
1. Intelligent microcomputer temperature LCD controller, high temperature control accuracy, environmentally friendly refrigerant, Compressor, circulating pump and heating device and other key components are imported products.
2. Over-temperature, low-temperature sound and light tracking alarm and liquid level protection functions ensure that samples are reliably protected without accidents.
3. Using imported brand Compressor, it has the characteristics of low noise, fast cooling, high efficiency and low energy consumption.
4. Equipped with a powerful pressure suction pump to provide a thermostatic source for the peripheral groove.
5. Equipped with a connecting port for external bath.
6. Can be connected to a printer, 485 Communication interface or USB data transfer interface (U disk), use a computer and printer to record temperature and time Linear dispersion, providing a strong guarantee for data storage and playback during the test.
7. Microcomputer program controls temperature, time and heating rate, and conducts thermostatic test at extremely fast speed.
8. 7 sets of 63 steps can be preset, each set time is 1-99 hours and 59 minutes, and the Rotation speed of the circulating pump can be adjusted.
Principle
The low temperature circulating water tank controls the temperature, time and heating rate through microcomputer program, and uses imported Compressor and heating device to achieve rapid cooling or heating. The circulating pump provides thermostatic liquid circulation and provides a stable thermostatic source for the peripheral tank.
Applications
Petroleum, Chemical, Life Science, Measurement, Light Industry, Scientific Research
Steps
1. Connect the power supply AC220V50HZ.
2. Fill an appropriate amount of liquid to 13L volume.
3. Temperature range -10~ 100 ℃, time program and heating rate are set by microcomputer LCD controller.
4. Start the equipment, and the circulating pump runs at an adjustable Rotation speed.
5. Optional connection to a printer or computer for data recording.
Notice
• Make sure the liquid level is normal before use and avoid dry burning.
• Pay attention to the ultra-temperature and low temperature alarm function and deal with abnormalities in a timely manner.
• Regularly check the operating status of the Compressor and circulating pump.
• Keep the equipment clean and avoid clogging the connection port.
• Power supply voltage requirements to prevent overload.
