Overview

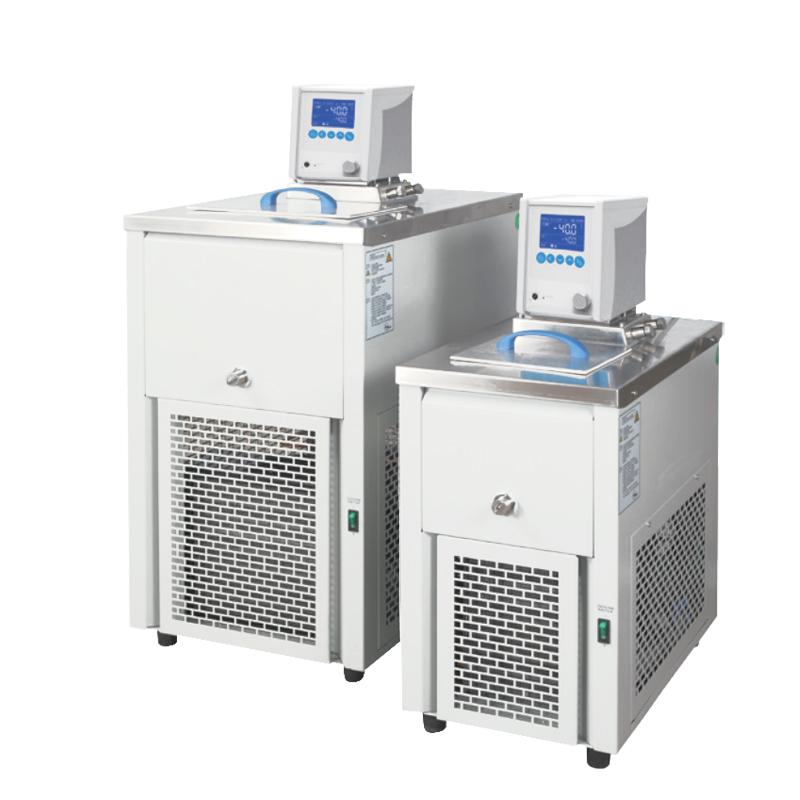

YIHENG MPGE-50C low temperature circulating water tank is a new generation of constant temperature water bath system. It integrates the company's many years of design and production experience, introduces and digests German technology, and the main parts are imported products. It has the characteristics of high quality, reliability and stability. Widely used in petroleum, chemical industry, life science, Measurement, light industry and scientific research.
Features
1. Intelligent microcomputer temperature LCD controller, high temperature control accuracy, environmentally friendly refrigerant, Compressor, circulating pump and heating device and other key components are imported products.
2. Over-temperature, low-temperature sound and light tracking alarm and liquid level protection functions ensure that samples are reliably protected without accidents.
3. Using imported brand Compressor, it has the characteristics of low noise, fast cooling, high efficiency and low energy consumption.
4. Equipped with a powerful pressure suction pump to provide a thermostatic source for the peripheral groove.
5. Equipped with a connecting port for external bath.
6. Convenient data processing (optional): can be connected to a printer, 485 Communication interface or USB data transfer interface (U disk), use a computer and printer to record temperature and time Linear dispersion, providing a strong guarantee for data storage and playback during the test.
7. Multi-stage programmable liquid crystal controller: Microcomputer program controls temperature, time and heating rate, and conducts thermostatic test at extremely fast speed; 7 sets of 63 steps can be programmed, each set time 1-99 hours 59 minutes, Rotation speed of circulating pump is adjustable.
Principle
The low-temperature circulating water tank controls temperature, time and heating rate through microcomputer program, uses imported Compressor, circulating pump and heating device and other key components to achieve rapid cooling and thermostatic control, provides thermostatic source for peripheral tank, and ensures accurate temperature control through intelligent controller.
Applications
Petroleum, Chemical, Life Science, Measurement, Light Industry, Scientific Research
Steps
1. Connect the power supply (AC220V 50HZ).
2. Fill with liquid to 13L volume.
3. Set the microcomputer program controller: Preset Temperature range -50~ 100 ℃, Temperature resolution 0.01 ℃, Temperature control accuracy +/- 0.02 ℃.
4. Optional preset 7 sets of 63 steps can be programmed, each set time is 1-99 hours and 59 minutes.
5. Adjust the Rotation speed of the circulating pump.
6. Start the equipment for thermostatic test.
7. Optional connection printer, 485 Communication interface or USB data transfer interface for data processing.
Notice
• Power supply voltage AC220V 50HZ before use.
• The filling volume should not exceed 13L.
• Pay attention to over-temperature, low-temperature sound and light tracking alarm and liquid level protection functions to ensure sample safety.
• Follow preset procedures and time settings when operating.
• Regularly inspect critical components such as Compressors, circulation pumps and heaters.
