Overview

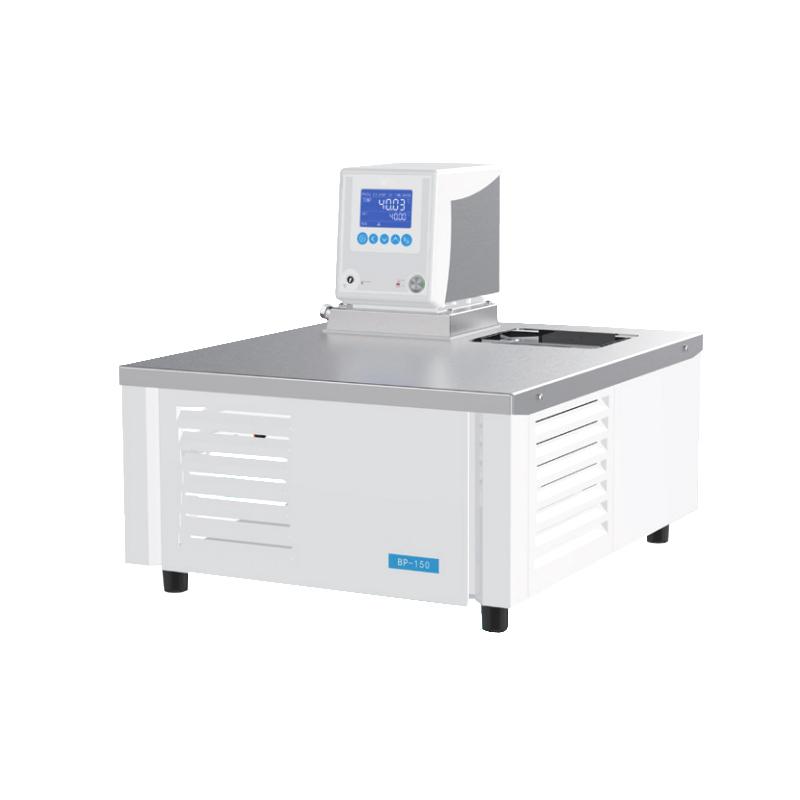

YIHENG BP-150 High Accuracy refrigeration and heating water tank is a new generation of circulating tank products, integrating many years of design and production experience, introducing German technology, mainly using imported quality, with high quality, reliability and stability. It is widely used in conventional laboratories in the fields of petroleum, chemical industry, life sciences, Measurement, light industry and scientific research for heating and refrigeration bath/circulator experiments. The sample can be placed directly in the open bath thermostatic or used for small external measurement unit thermostatic, as well as fermentation tank, Polarimeter, Electrophoresis Apparatus, photometer, Chromatography Column, Viscometer, Rotary evaporator, photometer, Rheometer and other products. At the same time, it can be equipped with a water bath blackbody module (optional) for the calibration of thermometer, Infrared Thermometer, ear thermometer, medical thermometer, and the Measurement department for primary and secondary mercury- filledthermometer, platinum resistance Measurement equipment is calibrated.
Features
1. Intelligent LCD display controller, PID control technology, accurate and reliable temperature control;
2. Multi-data one-screen display, menu operation, simple and easy to understand interface, easy to operate;
3. Powerful pressure suction pump, which provides a thermostatic source for the peripheral groove and can be switched between internal and external circulation;
4. Key components such as heating devices are made of imported SUS304 stainless steel;
5. Using imported brand Compressor, it has the characteristics of low noise, fast cooling, high efficiency and low energy consumption;
6. Equipped with a connecting port connected to an external bath;
7. External bath liquid emptying valve, which is convenient for customers to replace or discharge the bath liquid when needed;
8. Easy to disassemble ventilation grille, easy to clean the condenser of the refrigeration system;
9. Can accommodate 500ml beaker with Viscometer directly into the sink for use;
10. Over-temperature cut off the heating source and dry burning protection function, so that the sample can be reliably protected without accidents;
11. The Compressor delay start function ensures the service life of the Compressor;
12. The whole machine has the functions of leakage, overcurrent and overvoltage protection.
13. Optional RS232 connection printer for data printing;
14. Optional USB Data storage function;
15. Optional multi-segment programmable LCD controller, built-in 7 segments (9 steps per program) of different programs, easy for users to call at any time.
Principle
The equipment uses intelligent liquid crystal display controller and PID control technology implementation of precise temperature control, using imported brand Compressor for refrigeration, the heating device is made of imported SUS304 stainless steel, and the internal and external circulation switching is realized through a strong pressure suction pump to provide a thermostatic source for the peripheral groove. The cooling and heating process is adjusted by the controller to ensure that the temperature is stable within the set range.
Applications
Petroleum, Chemical, Life Sciences, Measurement, Light Industry, Scientific Research, Fermentation Tank, Polarimeter, Electrophoresis Apparatus, Photometer, Chromatography Column, Viscometer, Rotary evaporator, Photometer, Rheometer, Rated Thermometer calibrate, Infrared Thermometer calibrate, Ear Thermometer calibrate, Medical Thermometer calibrate, Primary mercury-filledthermometer detection calibrate, Platinum resistance detection calibrate
Notice
• Power supply voltage 220V/50Hz before use;
• Refrigerant selection: use purified water above 10 ° C, use 50% ethylene glycol + 50% purified water below 10 ° C;
• Regularly clean the ventilation grille to maintain the condenser performance of the refrigeration system;
• Use an external bath drain valve when replacing or draining the bath liquid;
• Avoid over-temperature use, the equipment has over-temperature cutting and dry burning protection functions;
• The Compressor starts with a delay function, pay attention to waiting;
• The whole machine has leakage, overcurrent and overvoltage protection, but it is still necessary to pay attention to safe operation;
Optional features require additional configuration, such as an RS232 printer connection, USB Data storage, or a multi-segment programmable controller.
