Overview

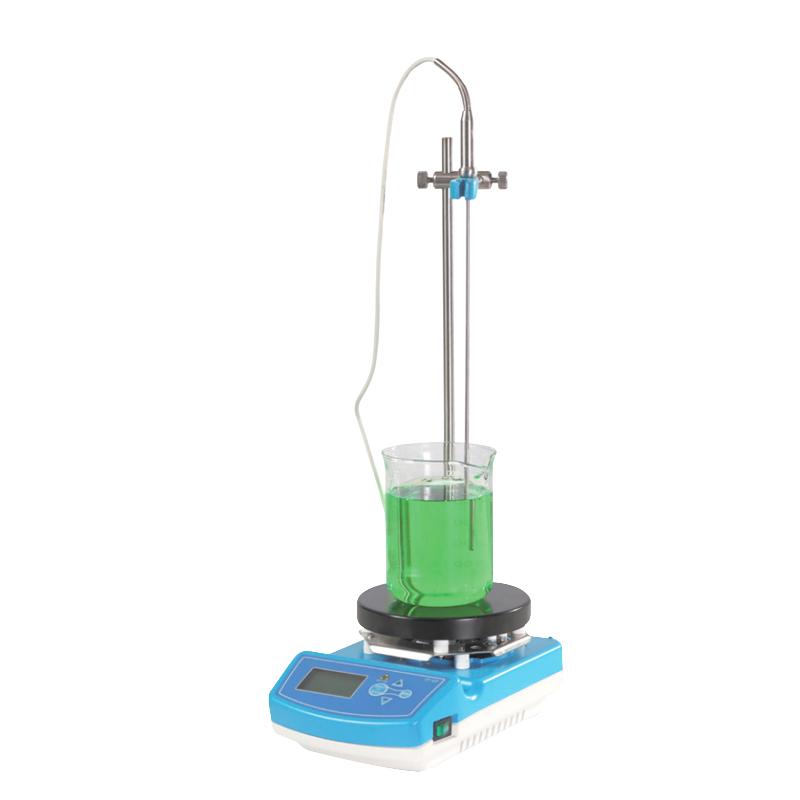

YIHENG IT-08A3 Magnetic Stirrer (disc type) generates a swirl/spin magnetic field through a micro-motor driving a high-temperature resistant strong magnet, drives the stirrer in the container to rotate, realizes liquid stirring, mixing or auxiliary heating, and makes the solution fully mixed at a set temperature. Widely used in biology, chemistry and other fields.
Features
1. LCD screen, Menu Operating interface, Temperature, Rotation speed and countdown parameters such as a screen display, easy to understand.
2. Microcomputer control technology to ensure that the Rotation speed is constant when the stirring viscosity changes.
3. Aluminum alloy die-casting shell, high temperature resistance, corrosion resistance, easy to clean.
4. The heating table substrate is aluminum alloy, and the external lame plating composite coating has good thermal conductivity and corrosion resistance. The smooth table is easy to clean and stay without pollutants.
5. The output torque is large, suitable for stirring low-viscosity large-capacity or high-viscosity small-capacity solutions.
6. Design anti-corrosion liquid conductive tank above the control panel to prevent liquid overflow and damage to electronic devices.
7. The heating table adopts the disc design, the heat is concentrated, and it is more suitable for the heating and stirring of round beakers and conicalflasks.
8. Adopt brushless DC motor for smooth operation, long lifespan and accurate speed control.
Principle
The Magnetic Stirrer uses a micro-motor to drive the high temperature resistant strong magnet swirl/spin to generate a swirl/spin magnetic field, which drives the stirrer in the container to rotate, so as to stir, mix or assist in heating the liquid to ensure that the solution is fully mixed at the set temperature.
Applications
Biology, chemistry
Notice
• Temperature deviation protection: stop heating when the measured temperature exceeds the set temperature of 10 ℃ -30 ℃.
• Anti-scalding warning light: When the working disc temperature exceeds 55 ° C, the indicator light flashes to remind the user not to touch it.
• Special protection: optional anti-scalding cover (optional accessories, price 600 yuan).
