Overview

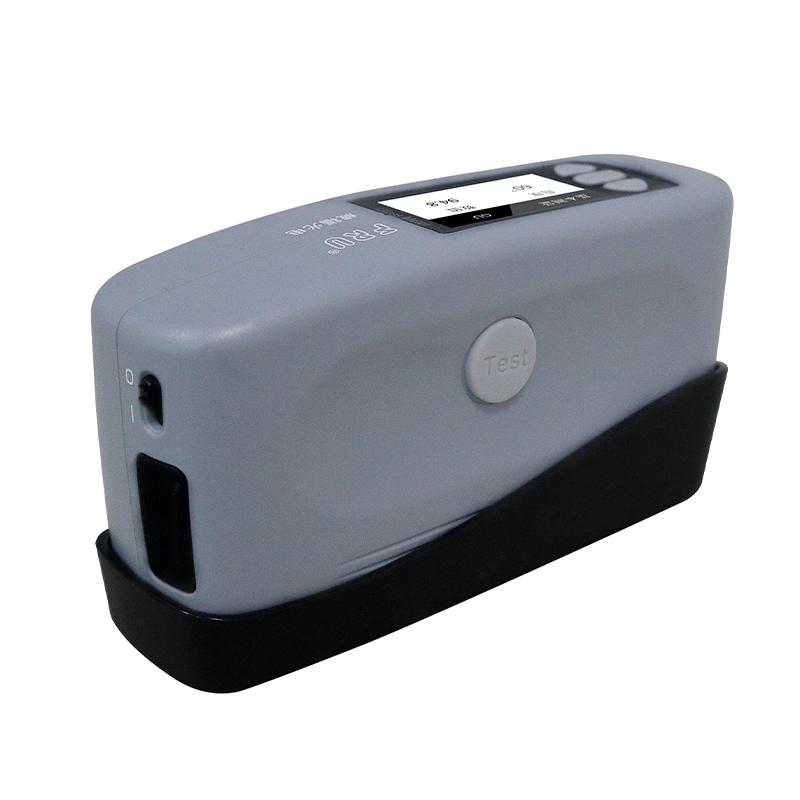

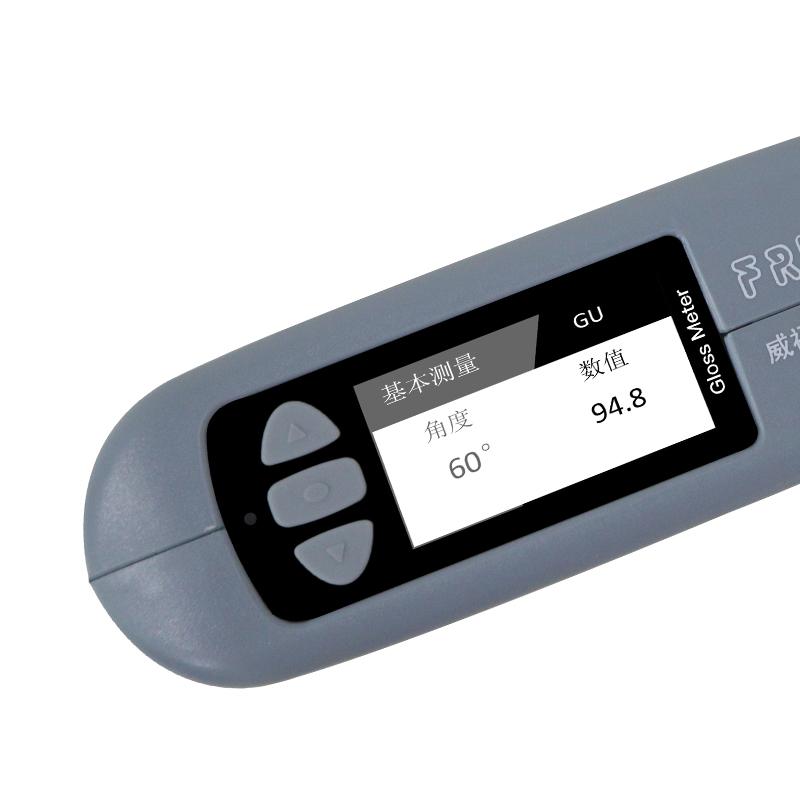

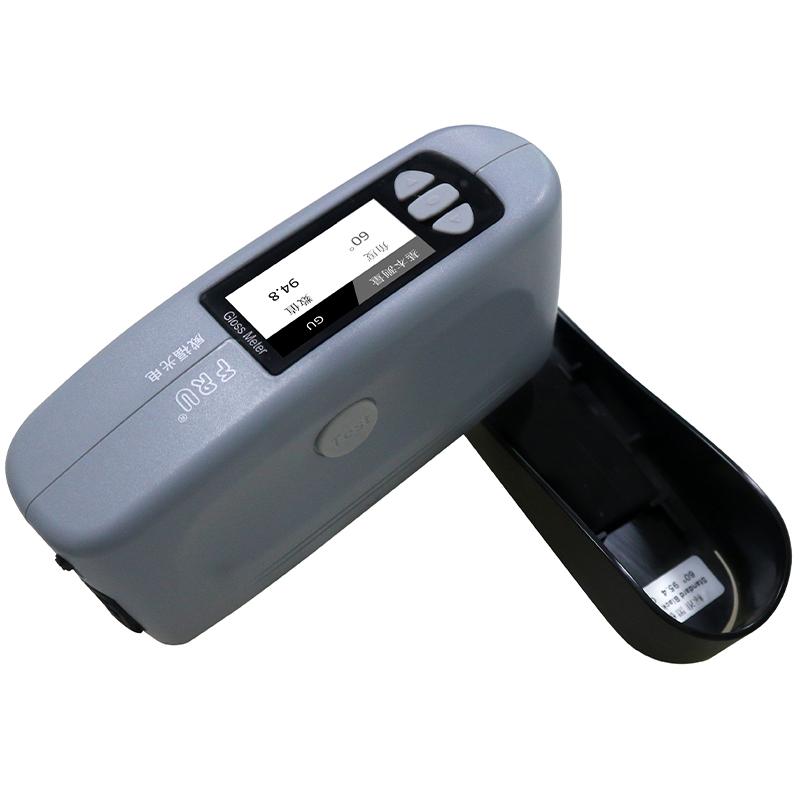

WG60C glossmeter is a new low-range glossmeter developed by IWAVE brand. It adopts LED Illuminant and has a Repeatability Delta GU of less than 1.5. It is mainly suitable for surface mirror gloss measurement of Non-metallic materials such as Coating, inks, baking paint, wood products, marble, granite, vitrified polished tiles, ceramic tiles, plastics, etc.
Features
1. Portable: Precision Appearance Design, Ergonomic, Moderate weight and comfortable feel, Operating interface is clear and simple, good human-machine interaction interface
2. Accuracy: repeability GU is less than 1.5, core technology ensures data accuracy and eliminates unstable factors of manual operation
3. More functions: factory reset, backlight time function, Manual calibration function, etc
Principle
The instrument uses LED Illuminant to illuminate the measured surface at a 60 ° projection angle, measure the intensity of the mirror reflection light, and calculate the Glossiness value. The Measuring Area is 9 * 15mm and the measured diameter is 13 * 41mm.
Applications
Coatings, inks, lacquers, wood products, marble, granite, vitrified polished tiles, ceramic tiles, plastics
Steps
1. Boot preparation: Install 2 AA alkaline batteries or connect Power Adapter

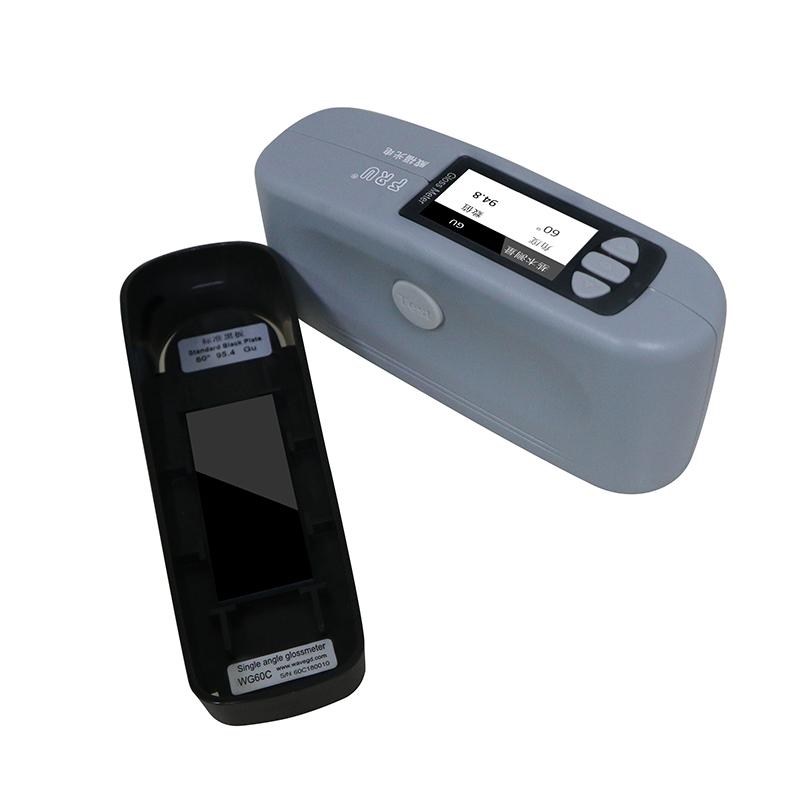

2. Calibrate: Manual calibration using standard plates
3. measurement: align the instrument with the measured surface for measurement
4. Data storage: can store 5000 sets of data, can set master standards and custom tolerance range
5. data output: can be connected to the micro printer real-time output measurement data
Notice
• Operating temperature range is 10~ 40 ℃
• Need to calibrate before use
• Measuring Area is 9 * 15mm, Measured Diameter is 13 * 41mm
• Repeatability index is 0-100:1.5, > 100:1.5%
• Indication Error is +/- 2.5GU
• Measurement range of reflectance 0-100%
