Overview

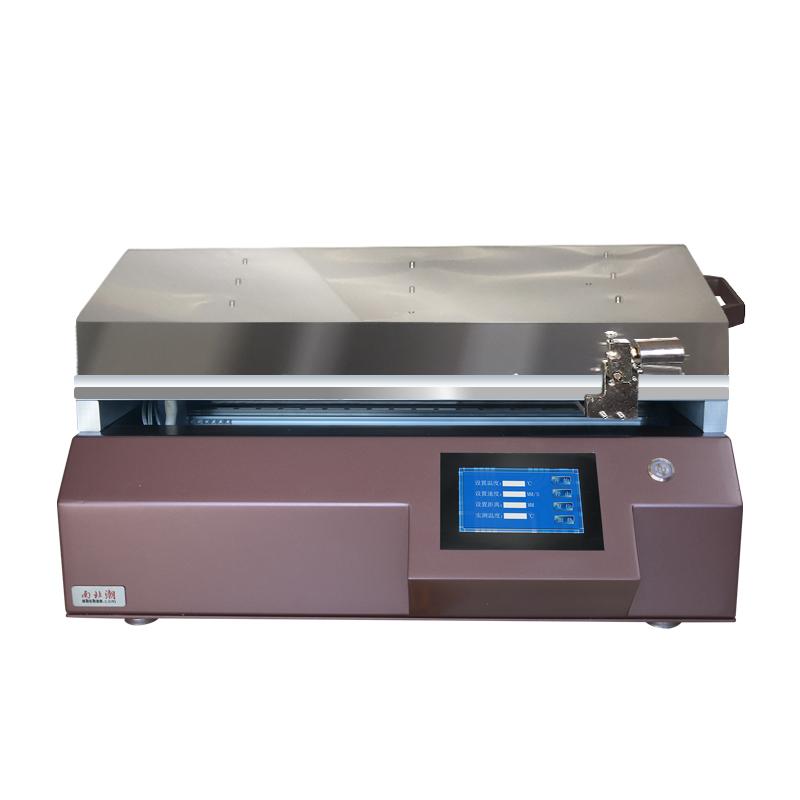

The TBJ-X5-DJ1 Automatic Film Applicator is a China multifunctional Spreader device that uses the bar coating method combined with UV curing and cryogenic cooling. The device provides precise Spreader thickness control, a wide range of adjustable coating speeds, and supports a variety of customization options to meet different application needs.
Features
1. meyer rod coating thickness range 1~ 571.5μm, accuracy +/- 0.001mm
2. coating speed 5~ 200mm/s, support stepless speed and low speed customization
3. Integrated UV light curing system, main peak wave 365nm, Power 400 * 2W
4. Equipped with low temperature refrigeration function, Temperature range -15 ℃~ RT, accuracy +/- 3 ℃
5. Vacuum chuck fixed substrate, adsorption size 400 * 300mm
6. Touchscreen control, easy to operate
7. Support a variety of optional Accessories and customization functions, such as automatic lame plating, air knife drying, etc
Principle
The device performs precise Spreader on the surface of the substrate through bar, and the thickness of the Spreader is determined by the bar model. After the Spreader is completed, UV light is used for curing in the 350~ 450nm Wavelength range, and the low temperature cooling function is optional to control the substrate temperature. The Vacuum chuck system ensures that the substrate is fixed and stable, and the Touchscreen controls the entire Spreader and curing process.
Applications
Scientific research experiments, material coatings, electronic components, Optical inspection films, medical apparatus
Steps
1. Prepare substrate and place on Vacuum chuck board
2. Select and install appropriate bar, set Spreader thickness and speed
3. Set Spreader Travel and Parameters via Touchscreen
4. Start the Spreader process, and the device will automatically complete the Spreader.
5. For curing, turn on the UV light curing system
6. Clean the equipment and turn off the power after use
Notice
• Power supply voltage 220V 50HZ before operation
• Spreader thickness should be strictly selected according to the bar model
• Avoid direct gaze at Illuminants during UV curing
• Vacuum chuck board kept clean to prevent clogging
• Customized functions need to confirm compatibility in advance
• Net weight 65KG, pay attention to safety when moving
