Overview

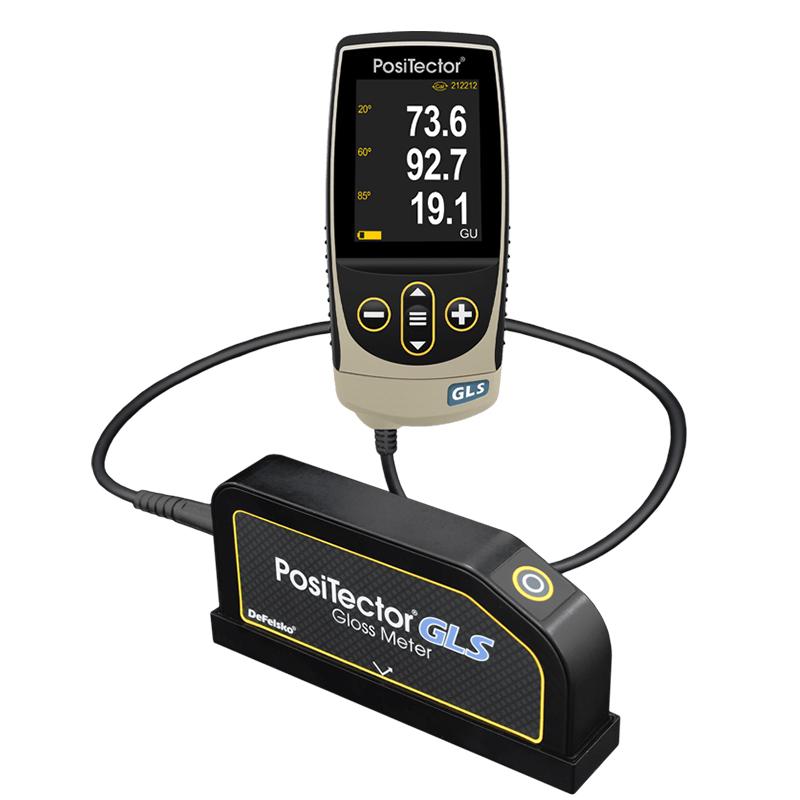

The PosiTector GLS glossmeter (model: GLS 2060-1) is a Handheld electronic instrument for the measurement of mirror reflectance and glossiness of surfaces. It consists of a body (standard or advanced) and a Probe and is suitable for field or workshop use.
Features
Simple: Measurement speed (60 + readings per minute), 2.8-inch Impact-resistant color Touchscreen and redesigned keyboard, meter help function and RESET factory reset.
2. Powerful: Statistical mode continuously displays average, Standard Deviation and other data, supports screenshots and HiLo alerts, Battery life is extended by 30%, USB port is connected to PC, with PosiSoft software and network updates.
3. Durable: All-metal Probe structure, IP65 grade weatherproof, dustproof, waterproof shell, ergonomic design, rubber leather case with shock absorption protection.
4. Accurate: provide calibrate certificate traceable to NRC, automatic diagnosis and calibrate, store multiple calibrate standards, comply with national and international standards.
5. Versatility: The main body accepts all PosiTector Probes, supports multiple unit selections, automatic swirl/spin displays, and optional display languages.
Principle
The PosiTector GLS glossmeter assesses Glossiness by measuring the specular reflectance of the surface, automatically diagnosing and calibrating using integrated calibrating criteria to ensure accuracy and traceability of measurement results.
Applications
Gloss applications, high-gloss to semi-gloss applications, matte applications
Standards
ASTM C584、ASTM D523、ASTM D4039、ISO 2813、ISO 7668、JIS Z 8741、AS/NZS 1580.602.2
Steps
1. Automatic diagnosis and automatic calibration.
2. Use the Touchscreen navigation menu for measurement.
3. Store measurement data and view statistical information.
4. Transfer data via USB or wireless.
Notice
• Operating temperature range is 0~ 45 ℃ to avoid condensation.
• Use integrated calibrated standards to ensure accuracy.
• Pay attention to batch and subbatch management when storing data.
• The advanced model supports WiFi and Bluetooth functions, and compatibility needs to be ensured.
