Overview

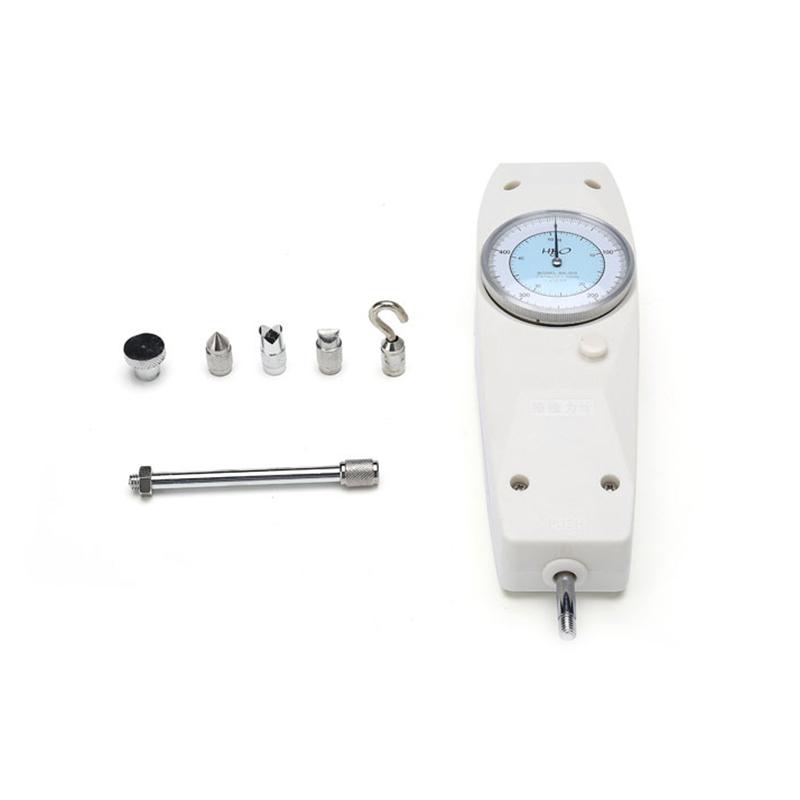

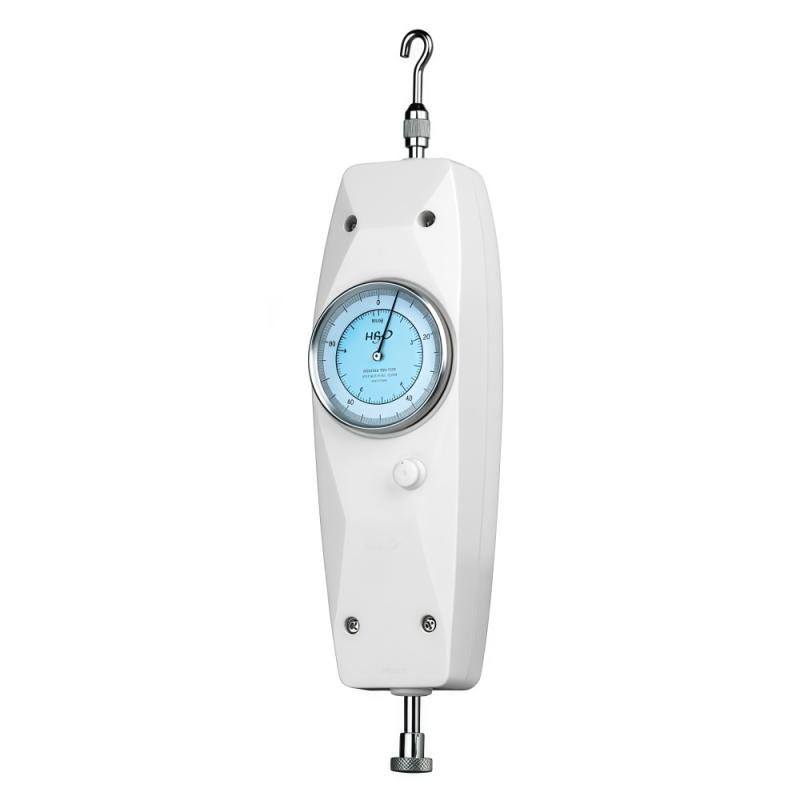

The HBO NK-50 Dial Force Gauge is a small Portable Force Gauge with high accuracy, simple operation, and easy portability. The product features a white housing design and a switch button for free switching between peak load measurement and continuous load value measurement. Measured value is up to 50kg.
Features
1. Handheld design of white hard plastic shell, small size, simple structure and easy operation
2. Dial indication, convenient, accurate and high accuracy
3. With dual display of Newton and kilogram units, no unit conversion is required
4. Peak hold and load real-time value indication can be switched freely, making it easy to use

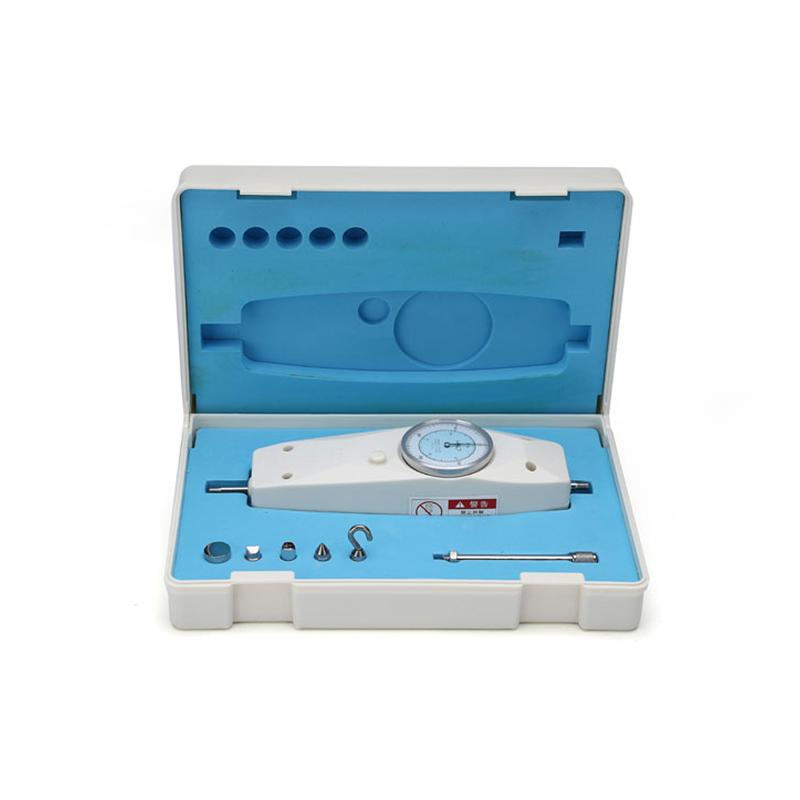

5. Reliable and beautiful Encasement, easy to transport, store and maintain
Principle
The HBO NK-50 Dial Force Gauge drives the pointer to indicate the Measured value on the dial after the push-pull rod is stressed. The user can select the Peak Hold or Continuous Load Value Measurement mode by switching the knob.
Applications
Push-pull force measurement, mass testing, industrial testing
Standards
Indication Error +/- 1%
Steps
1. Check the integrity of the equipment
2. Measurement mode (peak hold or continuous load value)
3. Apply force through the push-pull rod
4. Read the indicated value of the pointer on the dial
5. Switch the unit display as needed
Notice
• Working environment should be free of source and corrosion medium
• Operating temperature 20 ℃ +/- 10 ℃
• relative humidity should be within the range of 15%~ 80% RH
• Temperature range -27 ℃~ 70 ℃
Measured value is 5N/0.5kg, below this value may affect Measurement accuracy
