Overview

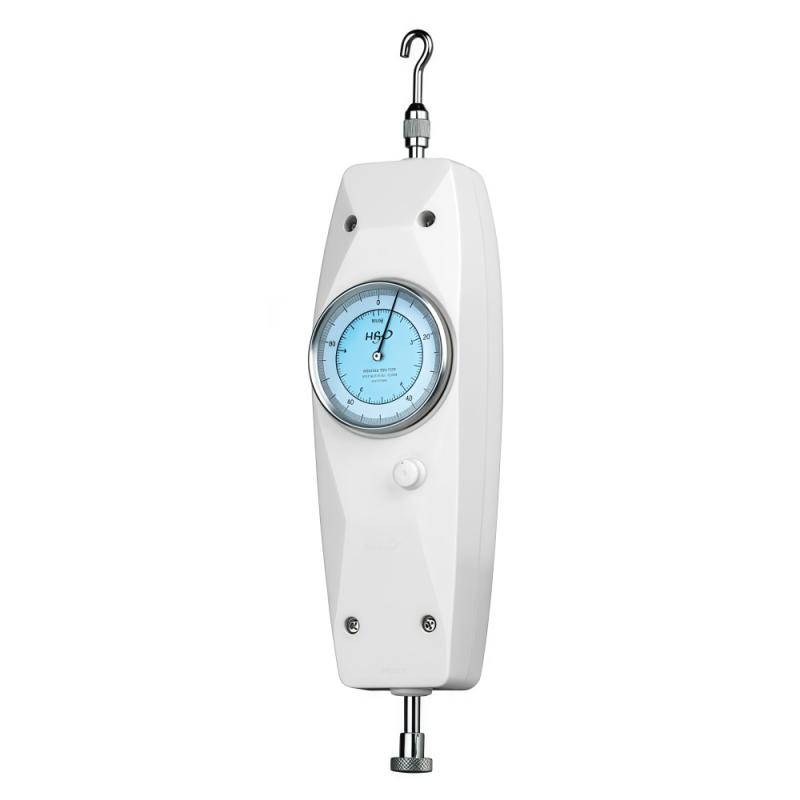

The HBO NK-30 Dial Force Gauge is a small Portable Force Gauge with high accuracy, simple operation, and easy portability. The product features a white housing design with a switch button for peak load measurement and continuous load value measurement switching, with a maximum Measured value of 30kg.
Features
1. Appearance design is white hard plastic shell, Handheld design, small size, simple structure and easy operation.
2, Dial indication, reading is convenient, accurate and high accuracy.
3. With dual display of two units (N, kgf), no unit conversion is required.
4. Peak hold and load real-time value indicating free switching, easy to use.

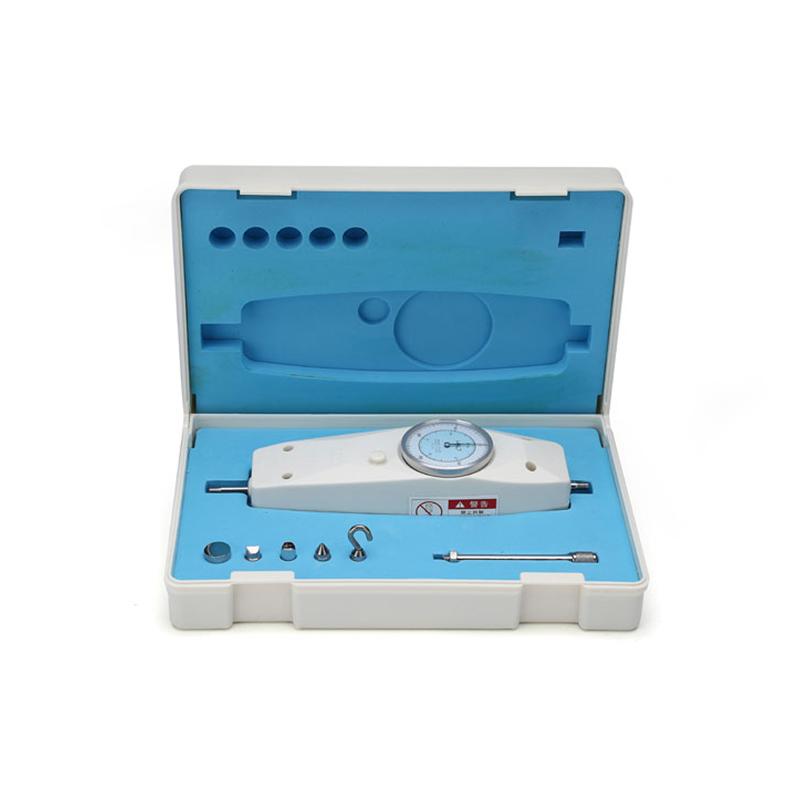

5. Reliable and beautiful Encasement, easy to transport, store and maintain.
Principle

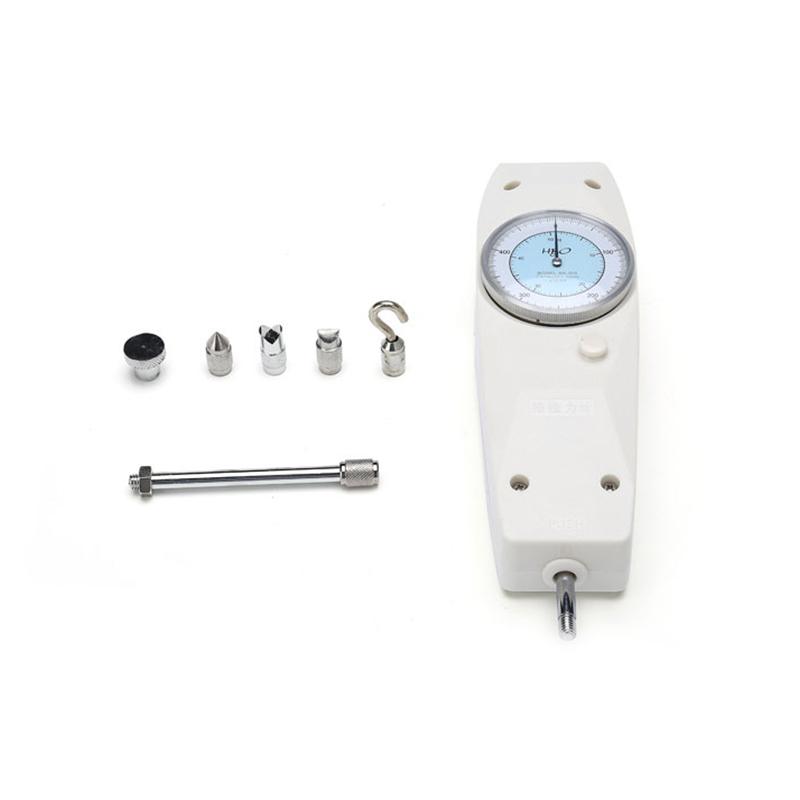

The HBO NK-30 Dial Force Gauge applies force through a push-pull rod, the pointer indicates the load value on the dial, and the user can select the peak hold or continuous load measurement mode by switching the knob.
Applications
Industrial testing, quality control, material testing
Steps
1. Ensure that the Force Gauge is in an allowable Operating temperature environment.
2. Use the toggle knob to select Peak Hold or Continuous Load Measurement mode.
3. Apply force through the push-pull rod and read the pointer indication value on the dial.
4. Record the measurement results and pay attention to the Unit switch (N or kgf).
Notice
• The working environment should be free of source and corrosion medium.
• Operating temperature is 20 ℃ +/- 10 ℃, relative humidity is 15%~ 80% RH.
• Temperature range is -27 ℃~ 70 ℃.
• Avoid use in an environment that exceeds the specifications to prevent damage to the equipment.
