Overview

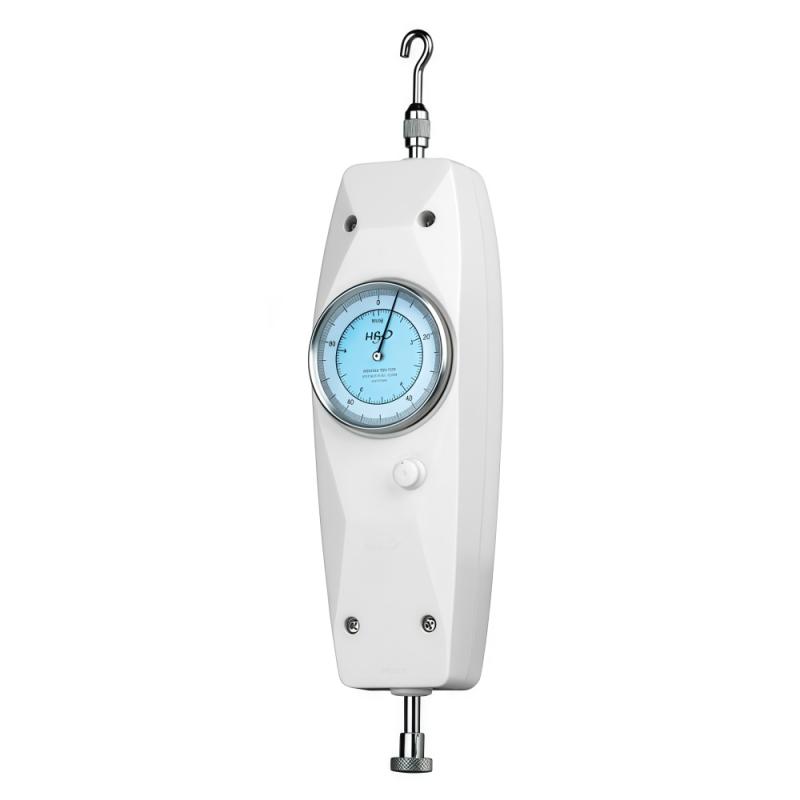

The HBO NK-20 Dial Force Gauge is a small Portable Force Gauge with high accuracy, easy operation and easy portability. The product features a white housing design and a switch button to switch between peak load measurement and continuous load value measurement. Measured value is up to 20kg.
Features
1. White hard plastic shell, Handheld design, compact size, simple structure and easy operation.
2, Dial indication, reading is convenient, accurate and high accuracy.
3. With dual display of Newton and kilogram units, no unit conversion is required.
4. Peak hold and load real-time value indicating free switching, easy to use.

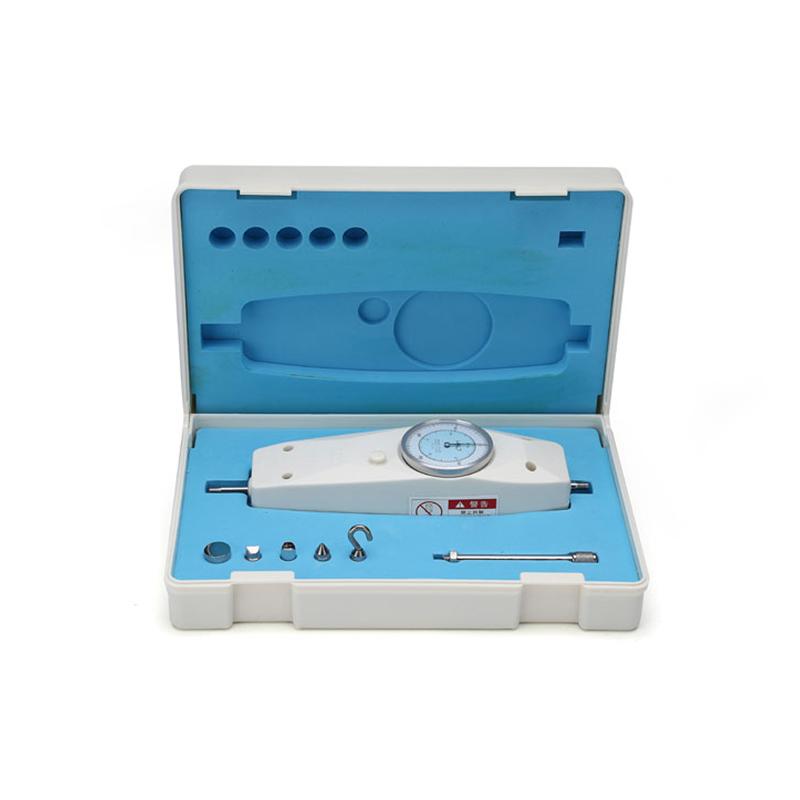

5. Reliable and beautiful Encasement, easy to transport, store and maintain.
Principle

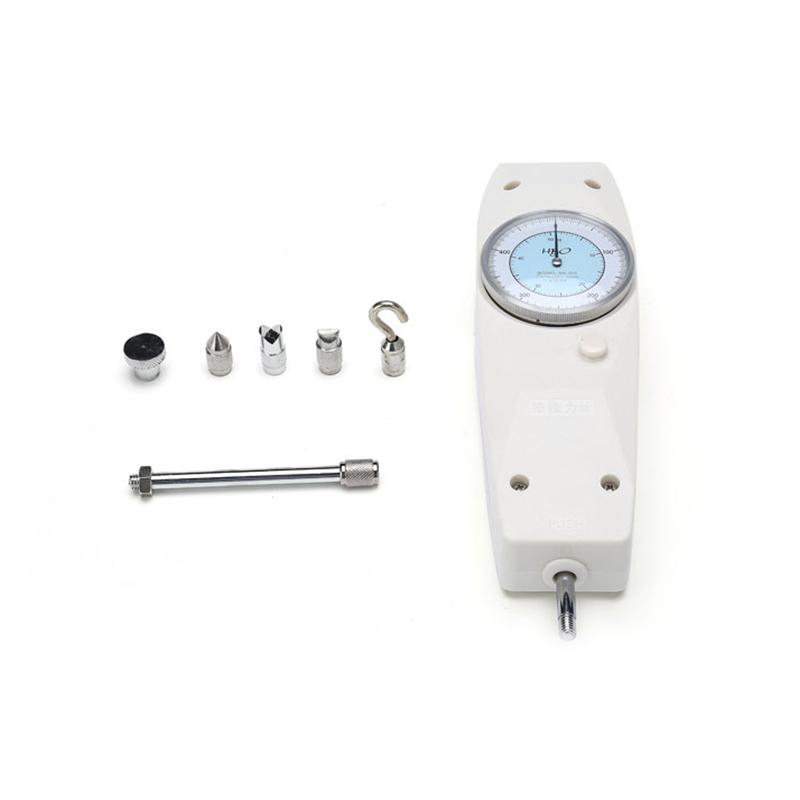

The HBO NK-20 Dial Force Gauge applies force through the push-pull rod, the pointer indicates the force value on the dial, and the switching knob can realize the switching of peak holding and continuous load measurement.
Steps
1. Select Peak Hold or Continuous Load Measurement mode by switching knob.
2. Apply force to the push-pull rod.
3. Read the force value indicated by the pointer on the dial.
Notice
• The working environment should be free of seismic source and corrosion medium
• Operating temperature 20 ℃ +/- 10 ℃
• relative humidity range of 15%~ 80% RH
• Temperature range -27 ℃~ 70 ℃
