Overview

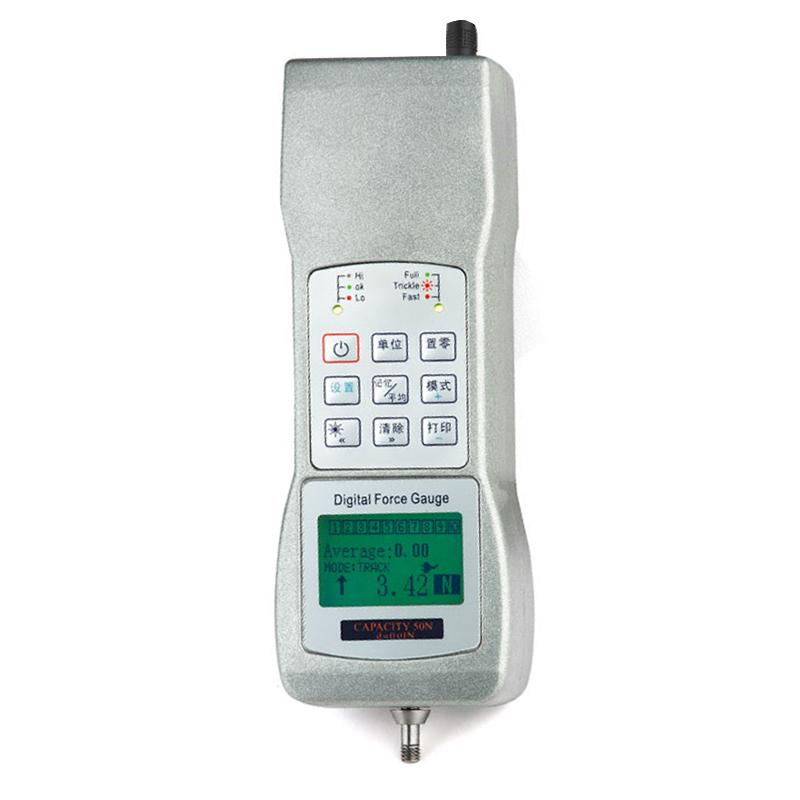

The HF-200 small Force Gauge is a built-in Sensor type Force Gauge with a maximum load value of 200N. It adopts LCD digital display and can view the test data in real time. It has a Communication interface, can connect to the printer to print data, supports the first peak hold mode, and can be freely switched in N, kgf, lbf and other units. The instrument adopts electronic Sensor technology, which is suitable for tensile pressure load test, insertion force test, failure test, etc. of various products. It has the advantages of high accuracy, easy operation, high Sensitivity, reliable data, etc. It is widely used in mass detection, physical experiment, engineering test and other fields.
Features
1. High Accuracy High resolution, Stability, sampling speed up to 960HZ
2. With button pressure and resilience test function
3. Operating interface Chinese and English display can be selected, and the display test content can be flipped 180 degrees
4. point array LCD, green backlight screen
5. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
6. Test direction display (pull, thrust)
7. Four test modes: real-time force tracking mode, peak hold mode, first peak mode, button pressure-rebound mode
8. Can set the upper and lower limit comparison value to make data qualified judgment, with sound alarm and level signal output
9. Store 200 sets of test data and automatically calculate the average, MAX Maximum and MIN Minimum of the stored data
10. Peak hold time can be set (0 to 99 seconds)
11. Gravity acceleration value can be set
12. Automatic shutdown without operation can be set (0~ 99 minutes)
13. Limit protection: with over-range sound alarm and mechanical two-level limit protection

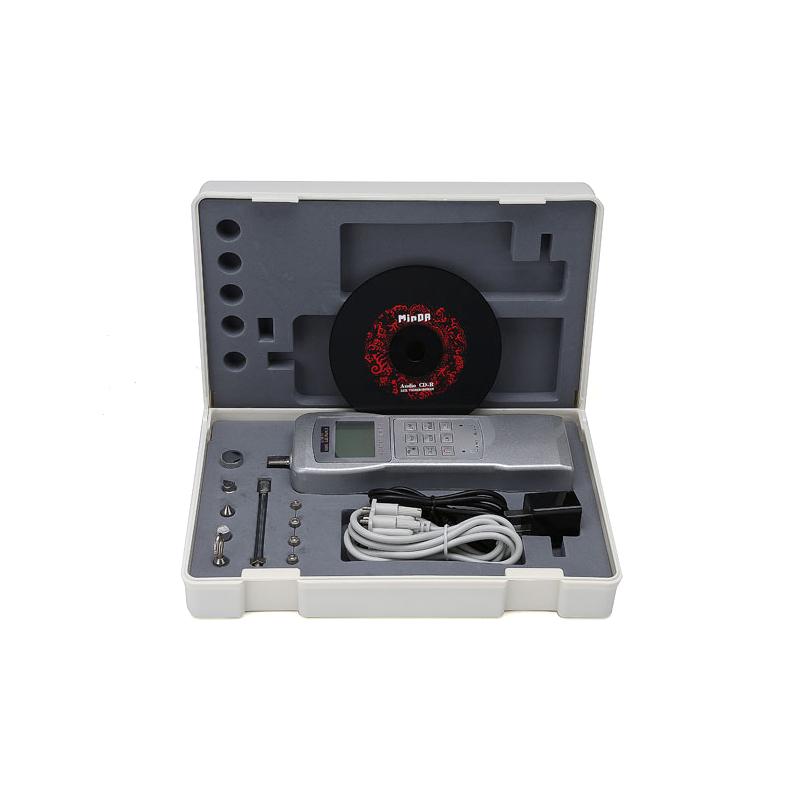

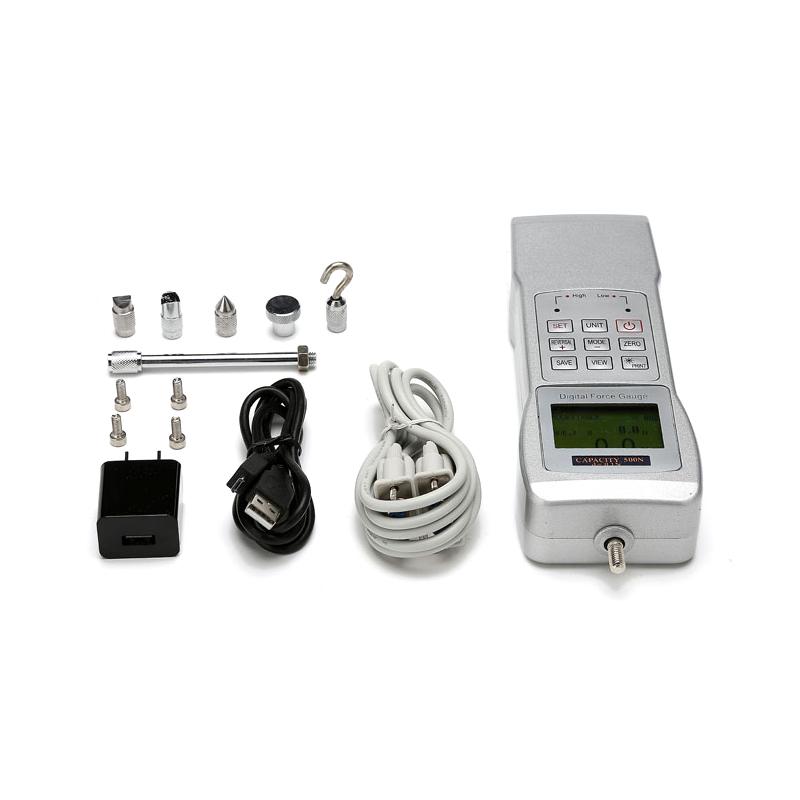

14. Special Instrument Toolbox with EVA Shockproof Encasement
15. Smart Charging, Safe Charging, Extend Battery life
16. With the electric testing device, the tested product can be stopped or reset when it is damaged, stop or reset when it reaches the preset force value, fatigue test and other functions
17. Host computer software: Chinese WINDOWS interface
18. The test results have a variety of coordinate Linear dispersion display: real-time force value - time, peak force value - number of times, first peak - number of times
19. Qualification judgment: According to the qualified range of the preset Standard value, make qualified judgment and batch inspection pass rate
20. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
21. Test data: The data obtained from the test can be queried and exported in excel format
22. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle
The HF-200 Force Gauge uses electronic Sensor technology to detect the push-pull force load through the built-in Sensor, convert the force value signal into an electrical signal, and display it in real time by the LCD after conversion by the ADC. The instrument supports a variety of test modes, such as real-time force tracking and peak holding, which can accurately measure and record test data. Combined with the host computer software, Data storage, analysis and export functions can be realized.
Applications
Mass inspection, physical experiment, engineering test
Standards
JJG work dynamometer National Measurement verification regulations
Steps
1. Measurement mode, force unit, etc
2. After setting the basic parameters, start the test, hold the Force Gauge firmly with both hands, and keep the direction of the push or pull force consistent with the axis of the test rod during the test process
3. After the test is completed, slowly unload the load, turn off the HF-200 small Force Gauge power supply, remove the test head, clean the Force Gauge and various components, and put them back in the toolbox for next use
Notice
• During the test, keep the direction of the push or pull force consistent with the axis of the test rod
• Slowly unload the load after the test is completed
• Remove the test head after turning off the power and clean it
• Put it back in the special toolbox when storing
• The working environment should be free of vibration and corrosion medium
• Operating temperature is 0~ 40 ℃, storage temperature is -20~ 70 ℃, relative humidity is 15%~ 80%
