Overview

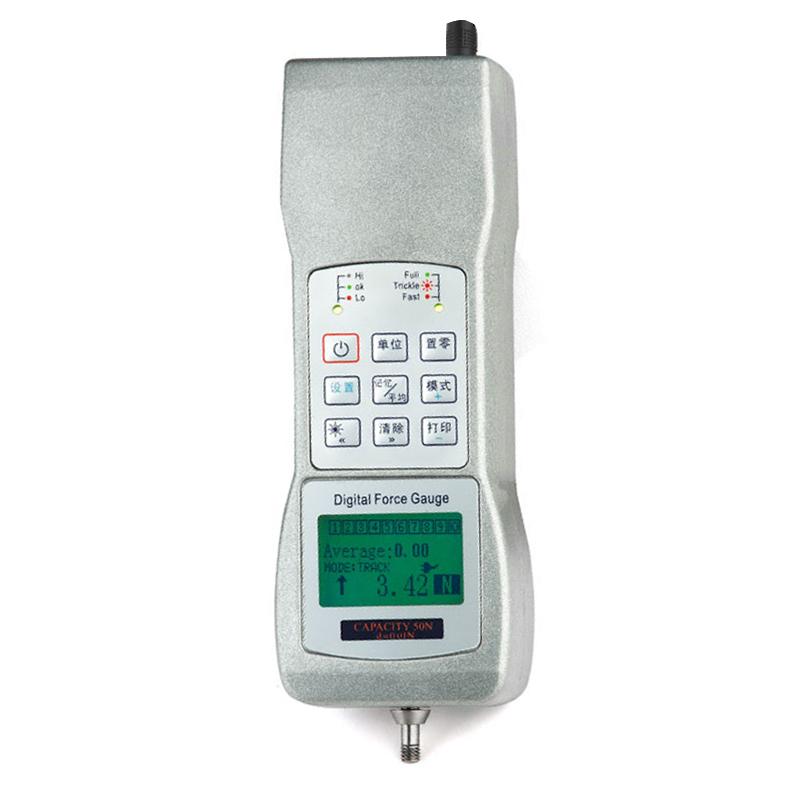

The HF-500 small Force Gauge is a built-in Sensor type Force Gauge with a maximum load value of 500N. It adopts a liquid crystal digital display design and can view the test data in real time. The product has a Communication interface, which can be connected to the printer print data, supports the first peak hold mode, and can be freely switched in three units: N, kgf, and lbf. The HF series digital display Force Gauge is a general-purpose Portable tensile pressure measuring instrument. It adopts electronic Sensor technology and is suitable for tensile pressure load testing, insertion force testing, failure testing, etc. of various products. It can be combined with various machines and fixtures to form a small testing machine for different purposes.
Features
1. High Accuracy High resolution, Stability, sampling speed up to 960HZ
2. With button pressure and resilience test function
3. Operating interface Chinese and English display can be selected, and the display test content can be flipped 180 degrees
4. point array LCD, green backlight screen
5. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
6. Test direction display (pull, thrust)
7. Four test modes: real-time force tracking mode, peak hold mode, first peak mode, button pressure-rebound mode
8. Can set the upper and lower limit comparison value to make data qualified judgment, with sound alarm and level signal output
9. Store 200 sets of test data and automatically calculate the average, MAX Maximum and MIN Minimum of the stored data
10. Peak hold time can be set (0 to 99 seconds)
11. Gravity acceleration value can be set
12. Automatic shutdown without operation can be set (0~ 99 minutes)
13. Limit protection: with over-range sound alarm and mechanical two-level limit protection

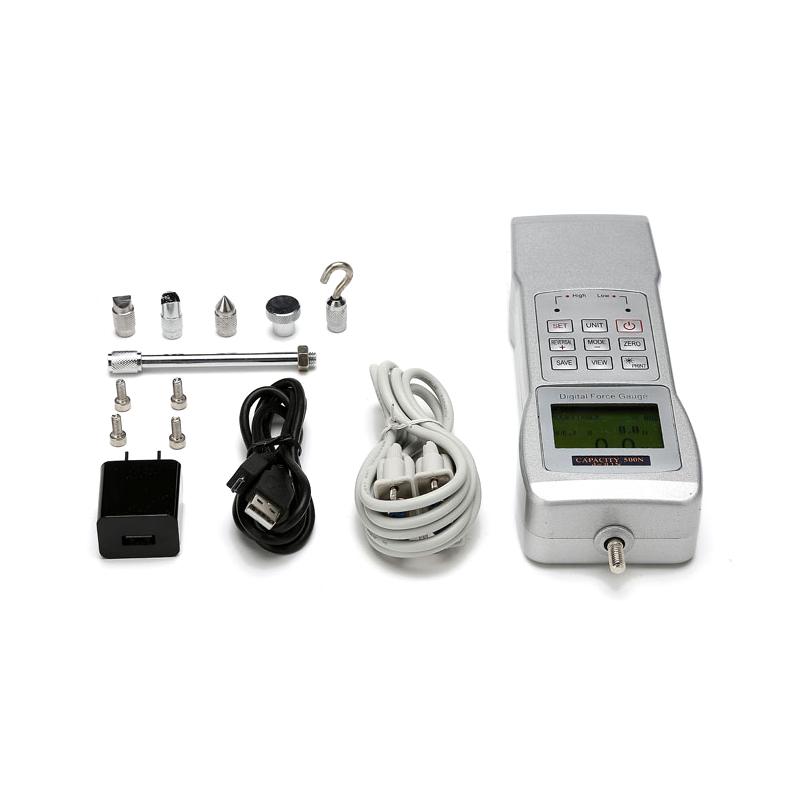

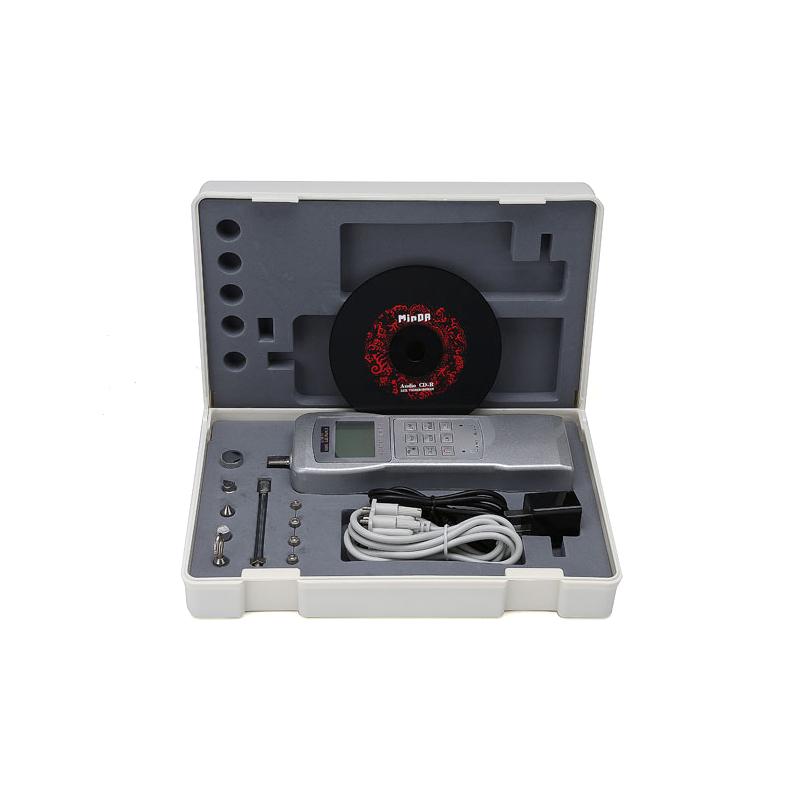

14. Special Instrument Toolbox with EVA Shockproof Encasement
15. Smart Charging, Safe Charging, Extend Battery life
16. With the electric testing device, the tested product can be stopped or reset when it is damaged, stop or reset when it reaches the preset force value, fatigue test and other functions
17. Host computer software: Chinese WINDOWS interface
18. The test results have a variety of coordinate Linear dispersion display: real-time force value - time, peak force value - number of times, first peak - number of times
19. Qualified judgment: Qualified judgment and batch inspection pass rate can be made according to the qualified range of the preset Standard value
20. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
21. Test data: The data obtained from the test can be queried and exported in excel format
22. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle
The HF-500 Small Force Gauge adopts electronic Sensor technology, converts the force value signal into an electrical signal through the built-in Sensor measurement of the pushing and pulling force load, and displays the measurement result on the LCD screen after the ADC conversion. The product supports a variety of test modes and unit conversions, and can be connected to a computer through the Communication interface for Data storage and analysis.
Applications
Mass inspection, physical experiment, engineering test
Standards
JJG work dynamometer National Measurement verification regulations
Steps
1. Measurement mode, force unit, etc
2. After setting the basic parameters, start the test, hold the Force Gauge firmly with both hands, and keep the direction of the push or pull force consistent with the axis of the test rod during the test process
3. After the test is completed, slowly unload the load, turn off the HF-500 small Force Gauge power supply, remove the test head, clean the Force Gauge and various components, and put them back in the toolbox for next use
Notice
• During the test, keep the direction of the push or pull force consistent with the axis of the test rod
• Slowly unload the load after the test is completed
• Turn off the power after use
• Remove the test head and clean it
• Put it back in the special toolbox and save it.
• Environmental requirements No vibration and corrosion around
• Operating temperature: 0~ 40 ℃
Storage temperature: -20~ 70 ℃
• relative humidity: 15%~ 80%
