Overview

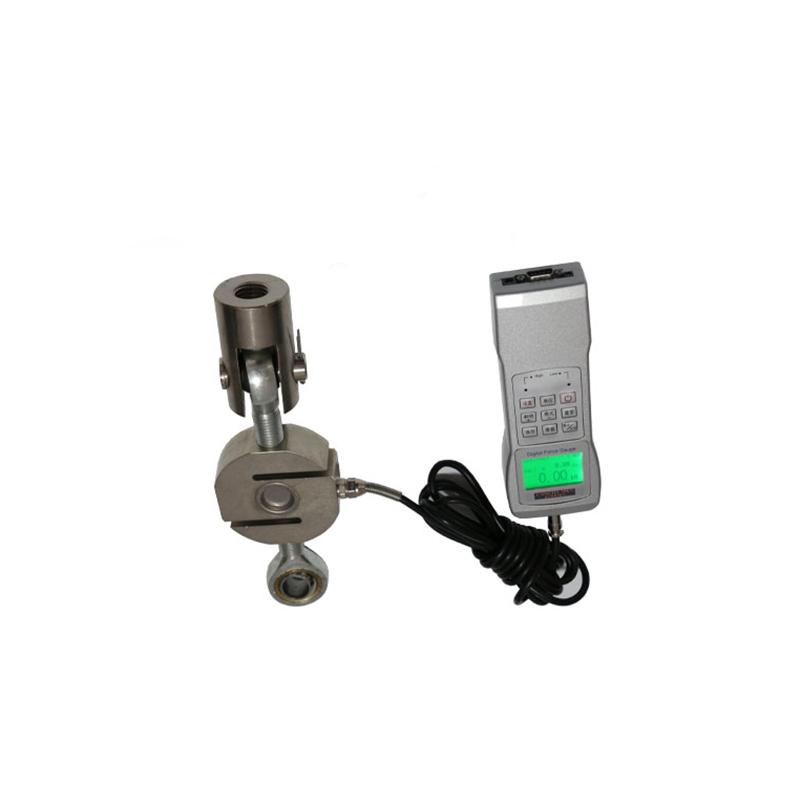

HBO HF-5k Force Gauge (Digital Display) is a small portable device with external Sensor, an upgrade to the HG series, with greater storage function and unique first peak hold function. The product provides peak hold mode, first peak hold mode, weight tracking mode, and button-specific mode. Four Operating Modes can be selected according to actual needs. The maximum load value is 5000N, and the load Graduation is 1N.
Features
1. High Accuracy High resolution, Stability, sampling speed up to 960HZ
2. With button pressure and resilience test function
3. Operating interface Chinese and English display optional, display content can be flipped 180 degrees
4. point array LCD, green backlight screen
5. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
6. Test direction display (pull, thrust)
7. Four test modes: real-time force tracking mode, peak hold mode, first peak mode, button pressure-rebound mode
8. Can set the upper and lower limit comparison value to make data qualified judgment, with sound alarm and level signal output
9. Store 200 sets of test data, automatically calculate the average, MAX Maximum and MIN Minimum
10. Peak hold time can be set (0 to 99 seconds)
11. Gravity acceleration value can be set
12. Automatic shutdown without operation can be set (0~ 99 minutes)
13. Limit protection: over-range sound alarm and mechanical two-level limit protection

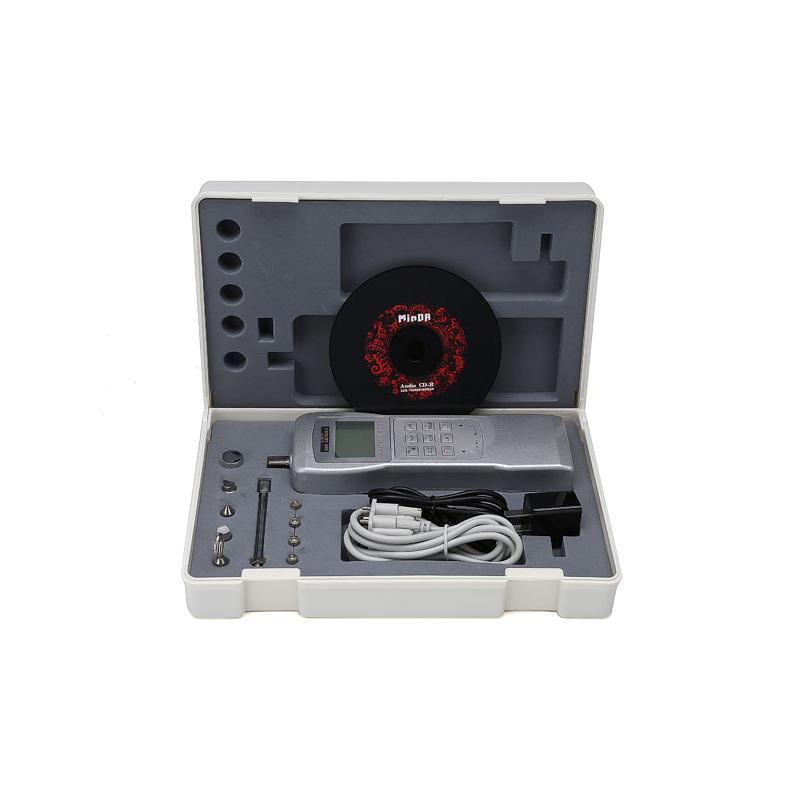

14. Special Instrument Toolbox with EVA Shockproof Encasement
15. Smart Charging for Safe Charging and Extended Battery life
16. With the electric testing device, it can realize the functions of stop after destruction, stop the preset force value, fatigue test and so on
17. Host computer software: Chinese WINDOWS interface
18. Linear dispersion of multiple coordinates
19. Qualification judgment function: judge the pass rate according to the preset Standard value
20. Automatic storage of test data and Linear dispersion to computer
21. Test data can be queried and exported in excel format
22. Test reports can be prepared and printed according to user requirements
Principle
The HF-5k Force Gauge collects force data through an external Sensor and uses digital display technology to display measurement results in real time. The device has four Operating Modes: Peak Hold Mode records the maximum force value, First Peak Hold Mode records the peak reached for the first time, Weight Tracking Mode displays the current force value in real time, and Key Special Mode is specially used to test key pressure and resilience. High Accuracy sampling (960HZ) ensures measurement accuracy, and cooperates with an intelligent data processing system to realize Data storage, analysis and report generation.
Steps
1. Select the appropriate Measurement mode according to the test requirements (peak hold, first peak, weight tracking or key dedicated mode)

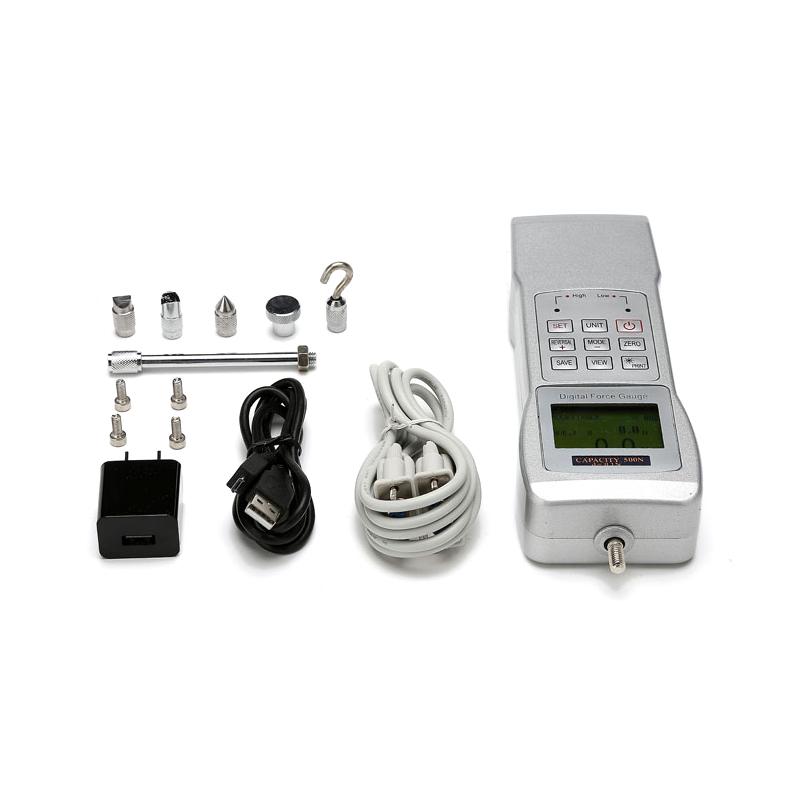

2. Connect the contact rod and the object under test
3. Turn on the power and select the display unit and language
4. Set the upper and lower limit comparison value, peak holding time, gravity acceleration and other parameters
5. Start the test and observe the real-time data on the LCD screen
6. View the stored data after the test is completed, and export to excel format
7. Turn off the power after use and store it properly
Notice
• Environmental requirements: no vibration and corrosion around
• Operating temperature range: 0~ 40 ℃
• Storage Temperature range: -20~ 70 ℃
• relative humidity range: 15%~ 80%
• Avoid over-range use and pay attention to the limit protection function
• Charge with a dedicated charger, AC input 220V/50HZ, DC output 5V/1A
• Regularly check the battery status and use smart charging to extend Battery life
• Special Instrument Toolbox and EVA Shockproof Encasement for Transportation and Storage
• Pay attention to the size of the instrument when installing: 40mm * 80mm, screw hole 4-M4
