Overview

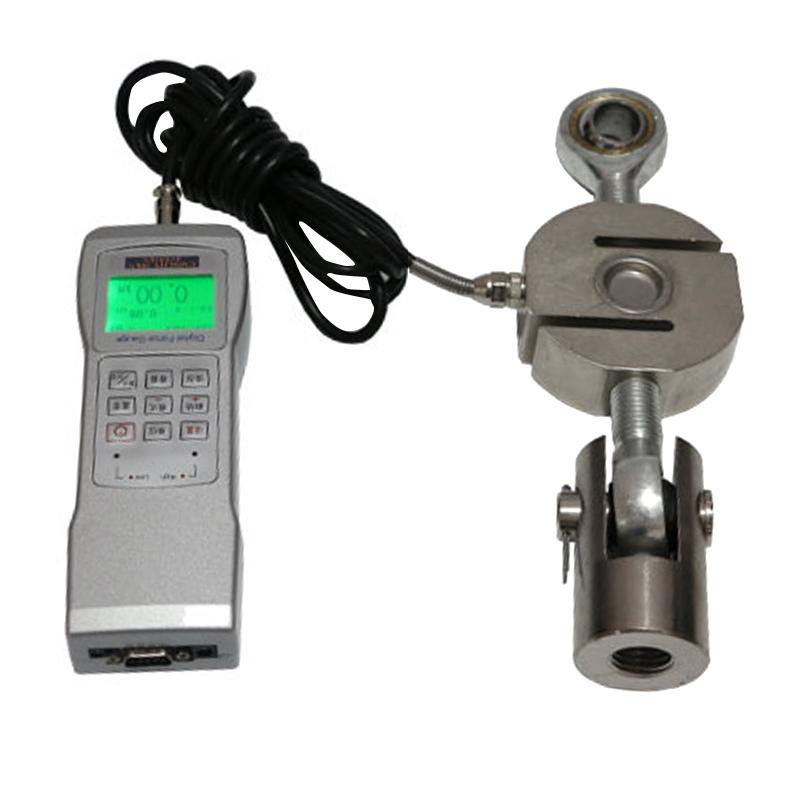

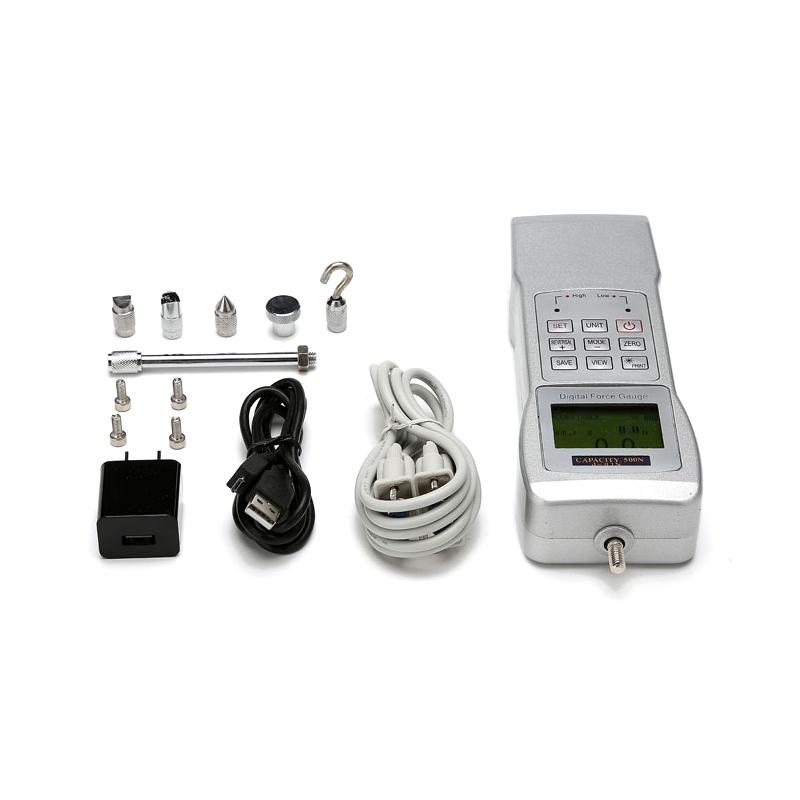

HBO HF-2k Force Gauge (Digital Display) is a small portable device with external Sensor, an upgrade to the HG series, with greater storage and unique first peak hold function. The product provides peak hold, first peak hold, weight tracking, and button-specific four Operating Modes, which users can choose according to their measurement needs. The maximum load value is 2000N, and the load Graduation is 1N.
Features
1. High Accuracy High resolution, High Stability, sampling speed up to 960HZ
2. With button pressure and resilience test function
3. Operating interface in Chinese and English is optional, and the display content can be flipped 180 degrees
4 point array LCD display with green backlight screen
5. Six units (N, KN, Kgf, gf, lbf, tf) are freely interchangeable
6. Test direction display (pull, thrust)
7. Four test modes: real-time force tracking, peak holding, first peak, button pressure-resilience
8. Can set the upper and lower limit comparison value for data qualification judgment, with sound alarm and level signal output
9. Store 200 sets of test data, automatically calculate the average, MAX Maximum and MIN Minimum
10. Peak hold time can be set (0 to 99 seconds)
11. Gravity acceleration value can be set
12. Automatic shutdown without operation can be set (0~ 99 minutes)
13. Limit protection: over-range sound alarm and mechanical two-level limit

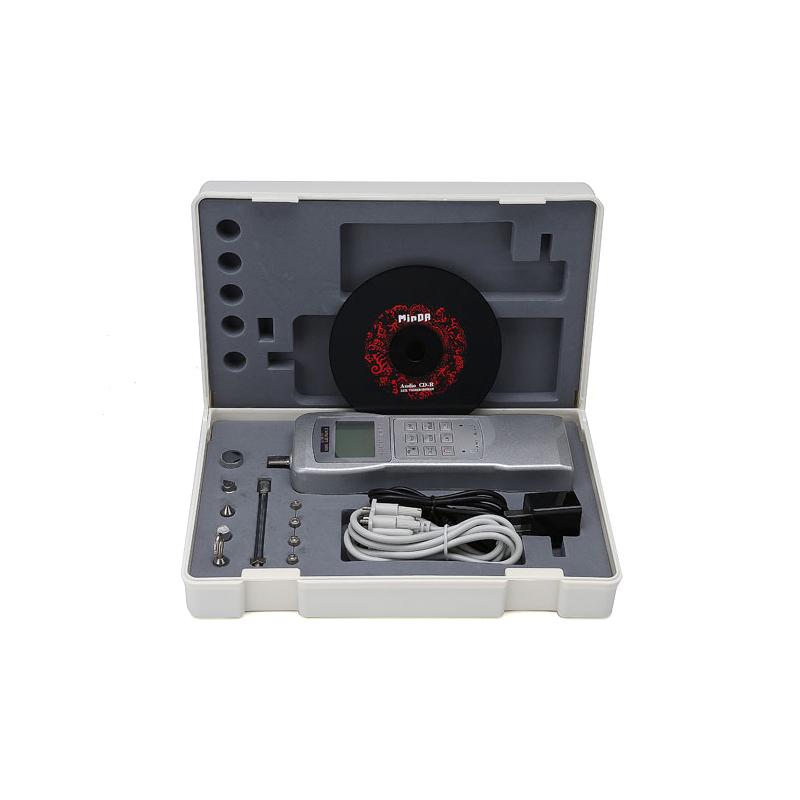

14. Special Instrument Toolbox with EVA Shockproof Encasement
15. Smart Charging System for Safe Charging and Extended Battery life
16. With the electric testing device, it can realize the functions of stop after destruction, stop the preset force value, fatigue test and so on
17. Chinese WINDOWS host computer software
18. Linear dispersion display of multiple coordinates: real-time force value - time, peak force value - times, first peak - times
19. Qualification judgment function, which can detect the pass rate in batches
20. Test data and Linear dispersion are automatically stored to the computer in unlimited quantities
21. Test data can be queried and exported in excel format
22. Test reports can be prepared and printed in user format
Principle
HF-2k Force Gauge collects force value signals through external Sensor, and converts and analyzes data at 960HZ sampling speed through High Accuracy Processing System. The device displays and stores measurement results in real time according to the selected test mode (such as peak hold, first peak, etc.), and realizes linkage control with the host computer and external devices through level signal output and Communication interface.
Applications
Key stress testing, resilience testing, product mass testing, mechanical properties testing, production line quality control, scientific research experiments
Standards
Precision 0.5, Indication Error ≤ +/- 0.5%
Steps
1. Select the appropriate Operating Mode (Peak Hold, First Peak Hold, weight tracking or key dedicated mode)
2. Connecting Contacts Lever and Sensor
3. Set the upper and lower limit comparison value, peak holding time and other parameters as needed
4. Perform force measurement operations
5. Observe real-time or peak data through the LCD screen
6. Communication interface for data export and analysis
7. Print the test report on demand
Notice
* Operating temperature range: 0~ 40 ℃
* Storage Temperature range: -20~ 70 ℃
* relative humidity: 15%~ 80%
* The working environment requires no vibration and corrosion medium
* Avoid excessive range use and pay attention to limit protection alarms
Charging with a dedicated charger (AC input 220V/50HZ, DC output 5V/1A)
* Regularly check battery status and use smart charging to extend Battery life
