$ 2463.00Ex works
Adopt non-light infrared NDIR Sensor, Response Time ≤ 15s, detection accuracy ≤ +/- 2%, support PPM,% VOL, mg/m ³ Unit switch, with overvoltage protection and automatic recovery function.
Category : Gas Detector
Brand : KORNO
SKU : NB038912
Service :The delivery and service By NBCLab.Com

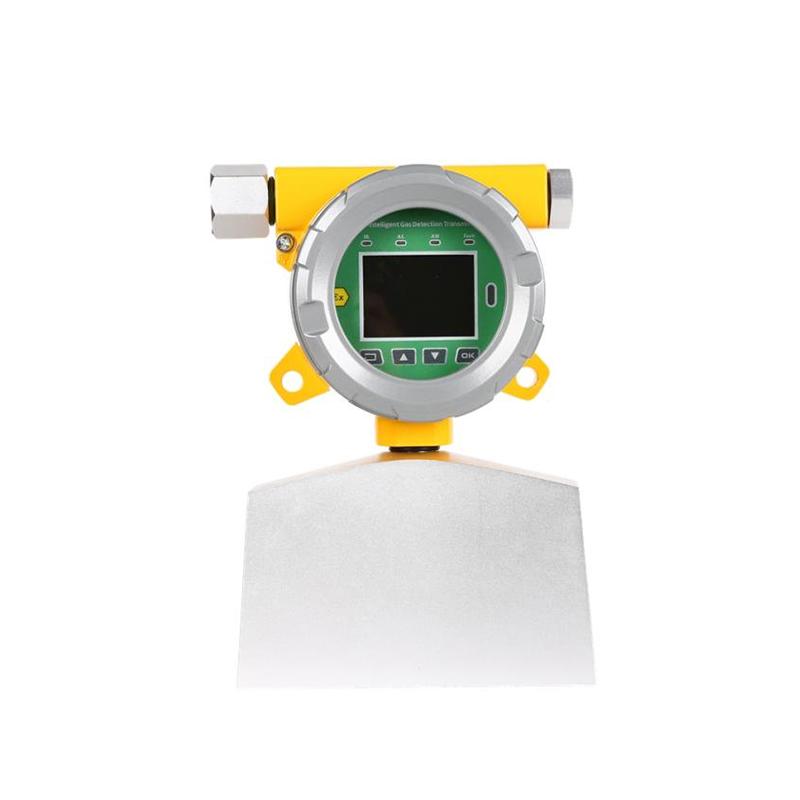

NBC-YH-CO-IR series infrared CO detector is a professional Gas detection equipment under the KORNO brand, which is suitable for detection and alarm of CO gas concentration in various environments. The instrument adopts non-light infrared NDIR gas Sensor and microcontroller technology, which has the characteristics of fast Response speed, high Measurement accuracy, Stability and Repeatability, etc. The whole machine performance ranks among the top in China. Equipped with 2.4 inch industrial grade color screen, it clearly displays technical indicators and gas concentration values, and has a variety of circuit protection functions to effectively prevent damage caused by human or uncontrollable factors. It supports a variety of transmission methods and remote monitoring functions, and can be connected to the Environmental Protection Agency, Enterprise Services or user equipment through cable, optical fiber, wireless, etc., to achieve real-time data query, historical data export, and other operations.
1. Ultra-low power 32-bit microprocessor with new semiconductor nano-process 2.Adopt 2.4 inch industrial grade color screen, resolution is 320x240 3. PPM,% VOL, mg/m3 three concentration units can be freely switched 4. Various signal output options: 4-20mA, RS485, 0-5V, 0-10V, Frequency signal, switching signal 5. A variety of transmission methods are available: 3-4 core cable, optical fiber, network cable, GPRS transmission, wireless transmission, video transmission 6. Various data receiving methods: user computer, control alarm, PLC, DCS, mobile phone, tablet computer, etc 7. With status indication function, comes with 4 sets of LED status indicators 8. With overvoltage protection, lightning protection, short circuit protection, reverse connection protection, anti-static interference, anti-magnetic field interference and other functions, and with automatic recovery function 9. With Temperature Humidity Detection function, it can detect the Temperature Humidity value of gas in the field or pipeline (optional) 10. Full software Automatic calibration, Sensor up to 6 target point Adjustment, ensure the accuracy and linearity of measurement, and have data recovery function 11. Full Chinese/English operation menu, simple and practical, with temperature compensation function 12. Optional infrared remote control, remote control operation of the instrument without opening the lid
This infrared CO detector uses a non-optical infrared NDIR gas Sensor technology to measure concentration by detecting the absorption characteristics of CO gas to specific wavelengths of infrared. The microcontroller processes the Sensor signal for Fast Response and High Accuracy measurement, as well as temperature compensation to ensure Stability and accuracy under different environment conditions.
Suitable for CO gas concentration detection and alarm in various environments, Enterprise Services monitoring, Environmental Protection Bureau monitoring, central control alarm system, user mobile phone or tablet device remote monitoring
GB3836.1-2010、GB3836.2-2010
•Install the instrument: Adopt wall-mounted installation and connect the electrical interface (3/4″ NPT internal thread or 1/2″ NPT internal thread). •Power supply: Connect to a 12–30 VDC operating voltage. •Select transmission method: Connect cables, optical fibers, network cables, or wireless transmission equipment according to requirements. •Set parameters: Configure concentration units, alarm levels, etc., through the fully Chinese/English operation menu. •Calibration: Use the fully software-automated calibration function, with the option for 6-level target point calibration. •Start monitoring: The instrument begins detecting CO concentration, and data can be displayed on the color screen and transmitted to receiving devices. •Remote operation: Optionally equipped with an infrared remote control for operation without opening the cover, or remotely controlled via mobile APP or computer software.
• Ambient Temperature should be kept within -30~ 50 ℃ • Environmental humidity not exceeding 95% RH and no condensation • Operating Pressure Range is 86~ 120Kpa • Pay attention to the ExdII CT6 requirements of explosion-proof signs during installation to ensure safe use • Avoid operating in a strong static or magnetic environment • Regular calibrating and maintenance to ensure measurement accuracy • Ensure a stable network or signal connection during remote transmission
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
