Overview

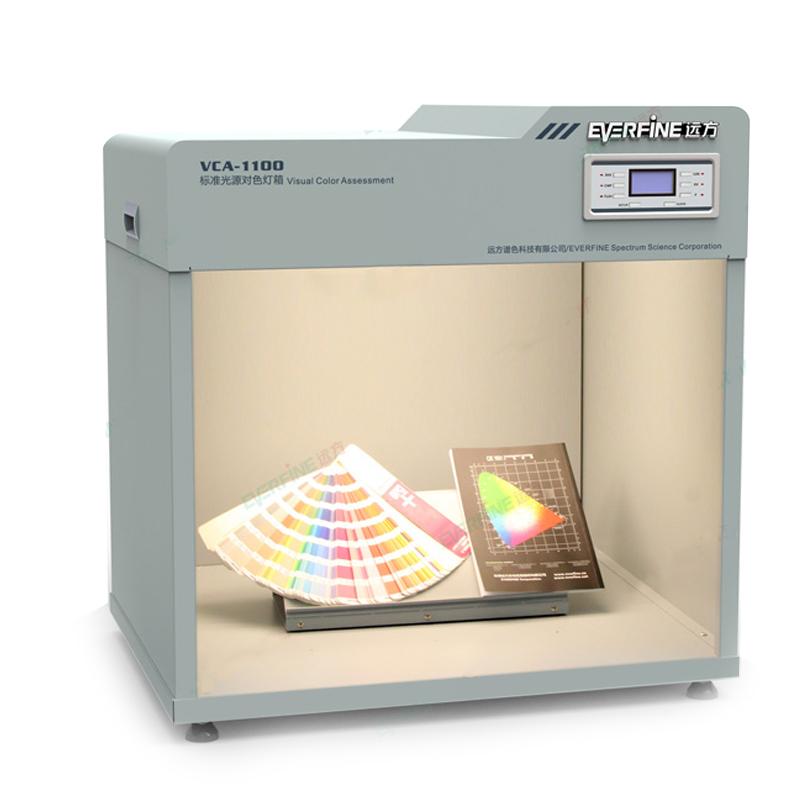

EVERFINE VCA-1100 Standard light source Color Assessment Cabinet adopts international brand Illuminant, with EVERFINE's special Shibelen coating uniform light device with good diffuse reflection characteristics, accurately matches and accurately simulates the light color performance required by multiple standards, referring to ASTM, CIE, ISO, GB and JJG and other domestic and foreign standards, to provide a solid technical guarantee for the conformity and Reliability of Color comparison.
Features
1. Standard light sources
2. Adopt EVERFINE technology to achieve good diffuse reflection and uniform lighting standard environment
3. No preheating, no flashing, no active heat dissipation, high luminous efficiency, fast and reliable evaluation of Color
4. UV light combined with white light Illuminant, used to detect and evaluate Fluorescent Whitening Agent, fluorescent dyestuff and pigment
Equipped with a 45-degree observation platform, 45/0 observation conditions can be achieved
Principle
Standard light source Color Assessment Cabinet through the international brand Illuminant and special Shibelen coating uniform light device, accurate matching and accurate simulation of multi-standard requirements of light color performance, to achieve good diffuse reflection and uniform lighting standard environment, for Color comparison to provide conformity and Reliability guarantee.
Applications
Printing, fabrics, Rubber & plastics, leather
Standards
ASTM、CIE、ISO、GB、JJG
Steps
1. Connect 220V/50Hz power supply
2. Select the desired Light source type (D65, CWF, TL84, U30, F, UV)
3. UV can be added to any White Illuminant
4. Color comparison using 45 degree observatory
5. Evaluate according to ISO105 observation conditions
