Overview

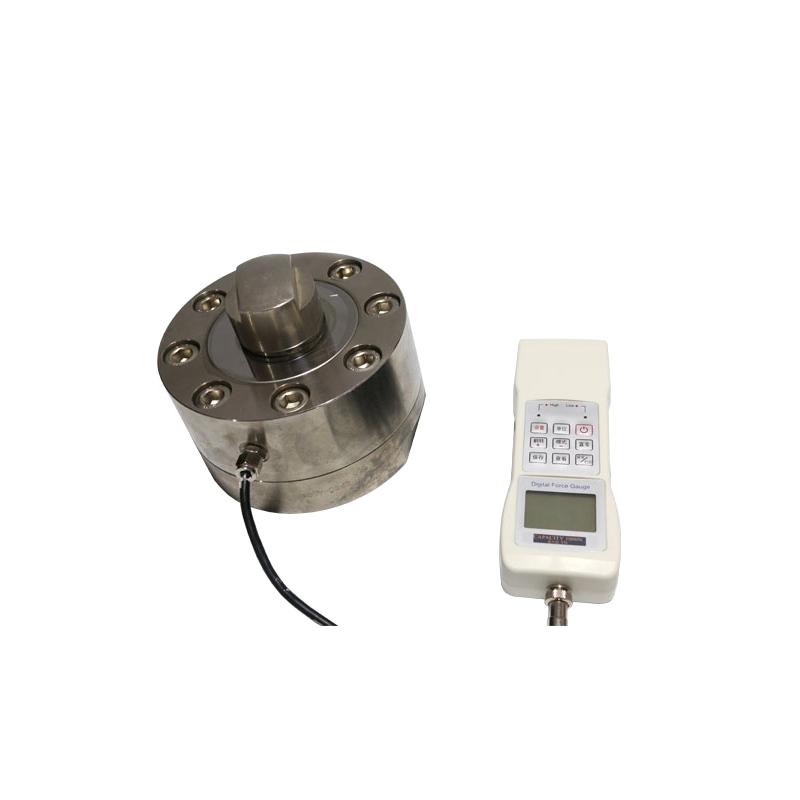

The HBO HF-1000K Force Gauge (digital display) is a wheel-mounted tensile tester with an external Sensor design. The Sensor is a wheel-shaped structure, which is specially used for the measurement of test sites with large load values. The maximum measurement load value of this model can reach 1000KN, and it is one of the high-load tensile testers in the Hypertherm HF series.
Features
1. High Accuracy High resolution, Stability, sampling speed up to 960HZ
2. With button pressure and resilience test function
3. Operating interface Chinese and English display optional, test content can be flipped 180 degrees for multi-angle observation
4. point array LCD, green backlight screen
5. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
6. Test direction display (pull, thrust)
7. Four test modes: real-time force tracking mode, peak hold mode, first peak mode, button pressure-rebound mode
8. Can set the upper and lower limit comparison value to make data qualified judgment, with sound alarm and level signal output
9. Store 200 sets of test data, automatically calculate the average, MAX Maximum and MIN Minimum
10. Peak hold time can be set (0 to 99 seconds)
11. Gravity acceleration value can be set
12. Automatic shutdown without operation can be set (0~ 99 minutes)
13. Limit protection: with over-range sound alarm and mechanical two-level limit protection
14. Special Instrument Toolbox with EVA Shockproof Encasement, Easy to Transport, Save and Carry
15. Smart Charging for Safe Charging and Extended Battery life
16. With the electric testing device, it can realize the functions of stop after destruction, stop the preset force value, fatigue test and so on
17. Host computer software: Chinese WINDOWS interface
18. The test results have a variety of coordinate Linear dispersion display: real-time force value - time, peak force value - number of times, first peak - number of times
19. Qualification judgment: Automatically judge the qualification rate according to the preset Standard value
20. Automatic storage: Test data and Linear dispersion are automatically stored to the computer, and the number of storage is unlimited
21. Test data can be queried and exported in excel format
22. Test reports can be prepared and printed according to user requirements
Principle
HBO HF-1000K Force Gauge adopts wheel-width Sensor structure. Through the external Sensor measurement of tension or thrust, the force value signal is converted into an electrical signal, which is processed and displayed on the digital display screen. With the host computer software, the data collection, storage and analysis functions can be realized.
Applications
High load tensile testing, key stress testing, resilience testing, product mass testing, material mechanical performance testing
Standards
Precision 0.5, Indication Error ≤ +/- 0.5%
Steps
1. Connect Sensors and testing devices
2. Power on and select the display language and unit
3. Set the test mode and related parameters
Step 4 Perform a pull or thrust test
5. View and store test data
6. Export data or generate reports
Notice
• The working environment should be free of vibration and corrosion medium
• Operating temperature range is 0~ 40 ℃
• Storage Temperature range -20~ 70 ℃
• The relative humidity should be kept at 15% to 80%
• Avoid over-range use and pay attention to limit protection
• Charge with a dedicated charger
• Use specialized toolboxes for transportation and storage
