Overview

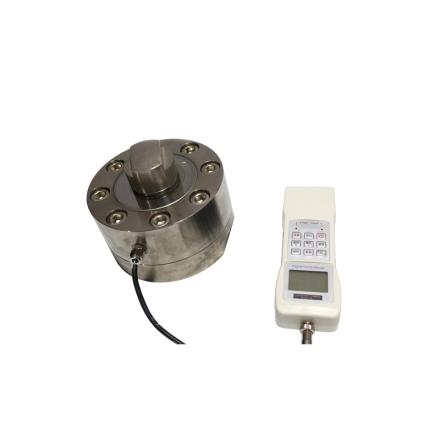

The HBO HF-500K Force Gauge is a wheel-mounted tensile tester designed with an external Sensor. The Sensor is a wheel-shaped structure, dedicated to the measurement of large load values in the test field. The maximum measurement load value of this model can reach 500KN, and it is a tension tester with high load values in the Hypertherm HF series.
Features
1. High Accuracy High resolution, Stability, sampling speed up to 960HZ
2. With button pressure and resilience test function
3. Operating interface Chinese and English display optional, display content can be flipped 180 degrees
4. point array LCD, green backlight screen
5. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
6. Test direction display (pull, thrust)
7. Four test modes: real-time force tracking mode, peak hold mode, first peak mode, button pressure-rebound mode
8. Can set the upper and lower limit comparison value to make data qualified judgment, with sound alarm and level signal output
9. Store 200 sets of test data, automatically calculate the average, MAX Maximum and MIN Minimum
10. Peak hold time can be set (0 to 99 seconds)
11. Gravity acceleration value can be set
12. Automatic shutdown without operation can be set (0~ 99 minutes)
13. Limit protection: over-range sound alarm and mechanical two-level limit protection

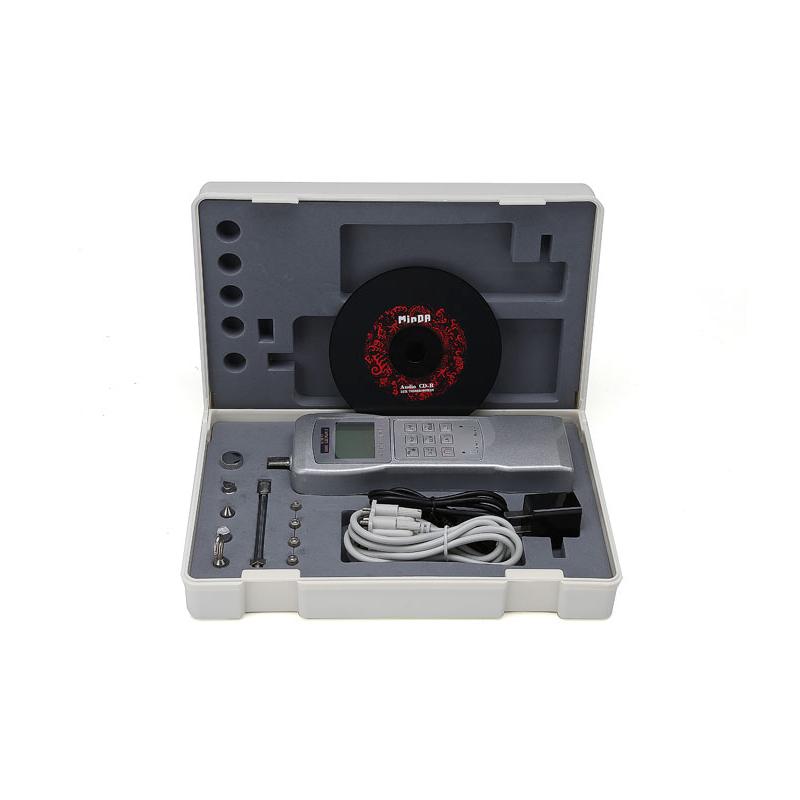

14. Special Instrument Toolbox with EVA Shockproof Encasement
15. Adopt Smart Charging to Extend Battery life
16. With the electric testing device, it can realize the functions of stop after destruction, stop the preset force value, fatigue test and so on
17. Host computer software: Chinese WINDOWS interface
18. Linear dispersion of multiple coordinates
19. Qualification judgment function, which can detect the pass rate in batches
20. Test data and Linear dispersion are automatically stored to the computer, and the number of storage is unlimited
21. Test data can be queried and exported in excel format
22. Test reports can be prepared and printed according to user requirements
Principle
HBO HF-500K Force Gauge adopts wheel-width Sensor structure, which converts mechanical signals into electrical signals for processing and display through external Sensor measurement of force value. The instrument is connected with external devices through level signal output interface and Communication interface to realize data collection and transmission.
Applications
High load tensile test, key stress testing, resilience test, material mechanical performance test, product mass testing
Standards
Precision grade 0.5
Steps
1. Connect Sensors and Test Equipment
2. Power on and select the display language and unit
3. Set the test mode and parameters (peak hold time, upper and lower limits, etc.)
4. Start the test and observe the real-time force display
5. Review peak data after the test is completed
6. Store or export test data
7. Prepare the test report and print it
Notice
• The working environment should be free of vibration and corrosion medium
• Operating temperature range: 0~ 40 ℃
• Storage Temperature range: -20~ 70 ℃
• relative humidity range: 15%~ 80%
• Avoid over-range use and pay attention to limit protection
• Charge with a dedicated charger
• Use specialized toolboxes for transportation and storage
• Measurement accuracy calibrated regularly
