Overview

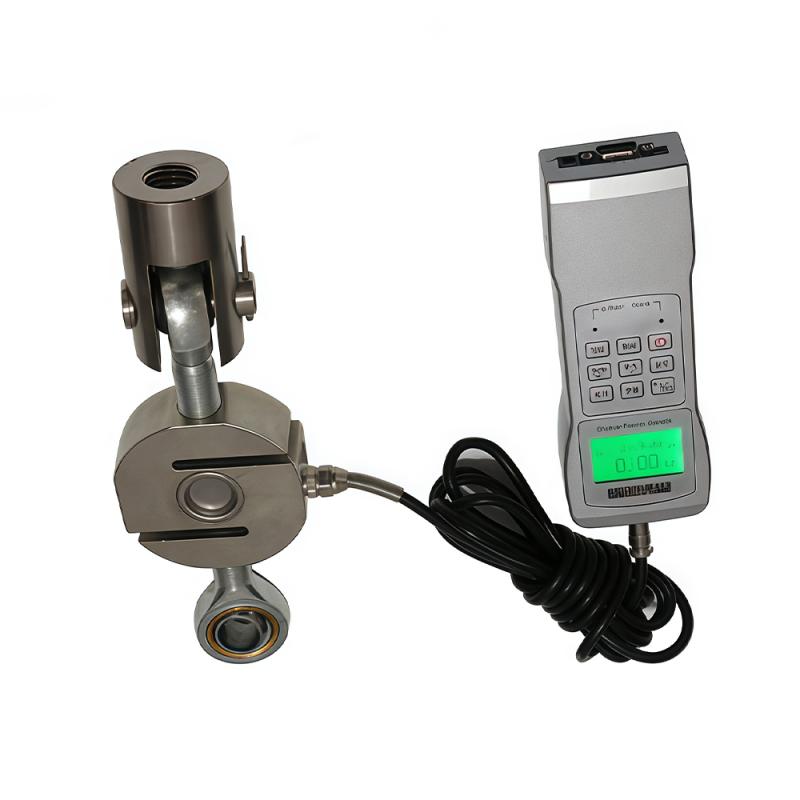

The HBO HF-300K Force Gauge is a wheel-mounted tensile tester designed with an external Sensor. The Sensor is a wheel-shaped structure dedicated to the measurement of large load values in the test field. The maximum measurement load value of this model can reach 300KN, which is one of the high load value tensile testers in the Hypertherm HF series.
Features
1. Key action force and rebound test function
2. First peak hold mode function
3. Neutral Acceleration can be set
4. Display the test direction (pull +, thrust -)
5. High accuracy and resolution, sampling speed up to 960Hz
6. Free to set up and down deviation value, automatic sound alarm and level signal output
7. Use point array LCD, green backlight screen
8. Operating interface in Chinese and English can be selected, and the display content can be flipped 180 degrees
9. Peak hold and peak release functions (can be set from 0 to 99 seconds)
10. Mass storage function, can store 200 sets of test data, automatically calculate the average, MIN Minimum, MAX Maximum
11. Automatic shutdown without operation (free setting time 0~ 99 minutes)
12. Serial communication, computer display Linear dispersion, force table and other Display modes, support statistical analysis
13. Serial output, can print stored tensile test data and MAX Maximum, Average, MIN Minimum
Principle
The HBO HF-300K Force Gauge uses a wheel-width Sensor structure to measure pull or thrust through an external Sensor. When force is applied, the Sensor converts the force value into an electrical signal, which is converted by the ADC and displayed in digital form. It supports functions such as peak hold, Data storage and communication output.
Applications
Tensile test, thrust test, key action test, rebound test
Standards
Indication Error +/- 0.5%
Steps
1. Connect the Power Adapter or use the built-in battery
2. Connecting Contacts Lever and Sensor
3. Power on and select test mode and parameters
Step 4 Perform a pull or thrust test
5. View and store test data
6. Output data to a computer or printer through a serial port
Notice
• Operating temperature range 0~ 40 ℃
• Storage Temperature range -20~ 70 ℃
• relative humidity range of 15%~ 80% RH
• The working environment needs no vibration and corrosion medium around
• Make sure the battery is fully charged or connect the Power Adapter before use
• Avoid overloading. Measured value is 300KN
