Overview
The HBO HF-200K Force Gauge (Digital Display) is a wheel-mounted tensile tester designed with an external Sensor, which is wheel-shaped and dedicated to the measurement of large load values in the test field. The maximum measurement load value of this model can reach 200KN, which is one of the high load value tensile testers in the Hypertherm HF series.
Features
1. High Accuracy High resolution, Stability, sampling speed up to 960HZ
2. With button pressure and resilience test function
3. Operating interface Chinese and English display is optional, and the display content can be flipped 180 degrees, which is convenient for multi-angle observation
4. point array LCD, green backlight screen
5. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
6. Test direction display (pull, thrust)
7. Four test modes: real-time force tracking mode, peak hold mode, first peak mode, button pressure-rebound mode
8. Can set the upper and lower limit comparison value to make data qualified judgment, with sound alarm and level signal output
9. Store 200 sets of test data and automatically calculate the average, MAX Maximum and MIN Minimum of the stored data
10. Peak hold time can be set (0 to 99 seconds)
11. Gravity acceleration value can be set
12. Automatic shutdown without operation can be set (time can be set freely from 0 to 99 minutes)
13. Limit protection: with over-range sound alarm and mechanical two-level limit protection

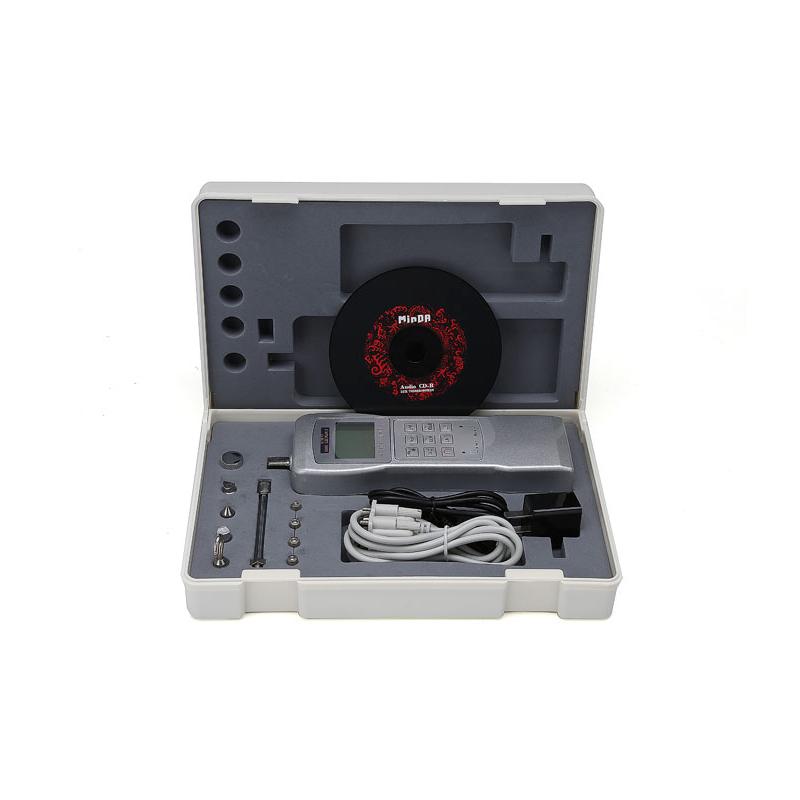

14. Special Instrument Toolbox with EVA Shockproof Encasement, Easy to Transport, Save and Carry
15. Smart Charging, Safe Charging, Extend Battery life
16. With the electric testing device, the tested product can be stopped or reset when it is damaged, stop or reset when it reaches the preset force value, fatigue test and other functions
17. Host computer software: Chinese WINDOWS interface
18. The test results have a variety of coordinate Linear dispersion display: real-time force value - time, peak force value - number of times, first peak - number of times
19. Qualification judgment: In addition to automatically obtaining the test results, qualified judgment and batch testing pass rate can be made according to the qualified range of the preset Standard value
20. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
21. Test data: The data obtained from the test can be queried and exported in excel format
22. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle

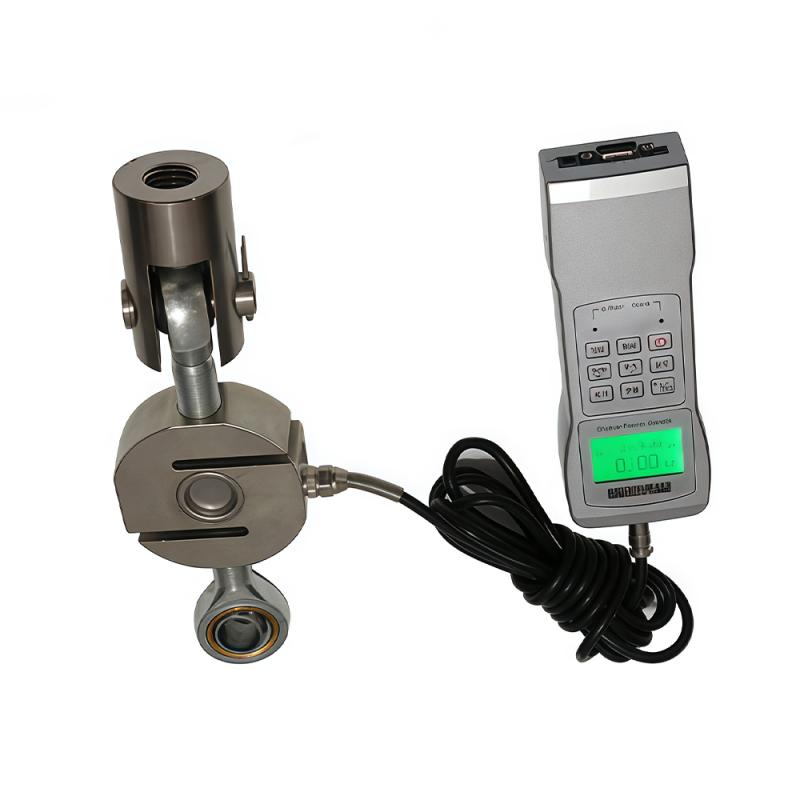

The HBO HF-200K Force Gauge is designed with a wheel-shaped Sensor that measures pull or thrust externally. During the test, the instrument collects force data in real time, displays test results through High Accuracy sampling and processing, and supports multiple test modes and Data analysis functions.
Steps
1. Connect Sensors and testing devices
2. Turn on the power and select the display language and unit
3. Set up test modes (e.g. peak hold, real-time tracking, etc.)
4. Set the upper and lower limit comparison value, peak holding time and other parameters as needed
5. Start the test and observe the change of the force value of the display window
6. After the test is completed, the data is automatically stored and can be exported and analyzed through the host computer software
7. Turn off the power after use and store it properly in a special toolbox
Notice
• The working environment should be free of vibration and corrosion medium
• Operating temperature range is 0~ 40 ℃, storage temperature is -20~ 70 ℃
• The relative humidity should be kept at 15% to 80%
• Avoid over-range use to prevent damage to the Sensor
• Regularly check the battery level and charge it with the original charger.
• Use a special shockproof toolbox for transportation and storage
• Pay attention to the screw hole size of 4-M4 when installing to ensure a firm connection
