Overview

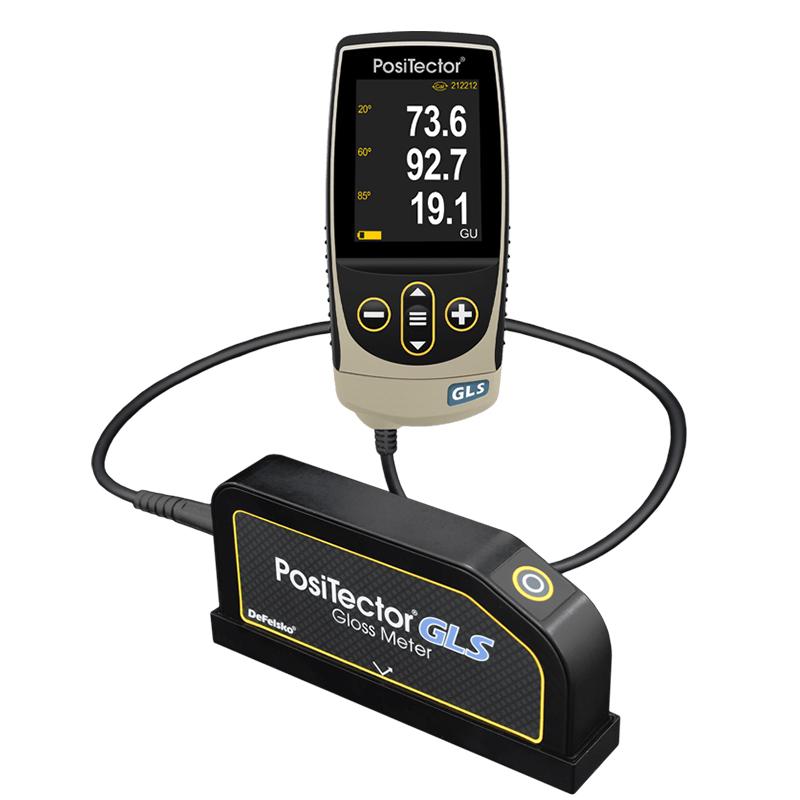

The PosiTector GLS60-3 glossmeter is a Handheld electronic instrument for the measurement of mirror reflectance and Glossiness of surfaces. It consists of a body (standard or advanced) and a Probe and is suitable for field or shop use.
Features
1. Simple: Measurement speed is fast (60 + readings per minute), with 2.8-inch Impact-resistant color Touchscreen and redesigned keyboard to support fast menu navigation; meter help function explains menu items with one click; RESET function can restore factory settings immediately.
2. Powerful: Statistics mode real-time display of average, Standard Deviation, MIN Minimum/MAX Maximum and number of readings; Screenshot function to save 100 images; HiLo alarm sound and visible alarm when the measured value exceeds the limit; Battery life is extended by 30%; USB port supports PC connection and power supply; PosiSoft USB drive can view reports and .csv data without software; Measured value with date and timestamp; includes PosiSoft software; supports network software updates.
3. Durable: All-metal Probe structure ensures long-term Stability; IP65 grade weatherproof, dustproof and waterproof housing; ergonomic design with durable rubber handle; shock absorption protection rubber leather case enhances impact resistance.
4. Accurate: calibrate certificate can be traced back to NRC; use integrated calibrate standard protection substrate, support boot automatic diagnosis and Automatic calibration; store multiple calibrate standards for quick adjustment; comply with national and international standards.
5. Versatility: The PosiTector body is compatible with all PosiTector Probes, and can be converted into Coating thickness gauge, dew point meter, etc.; Glossiness and reflectance percentage units are optional; automatic swirl/spin display with flip lock; display language can be selected.
Principle
The glossmeter evaluates Glossiness by measuring the specular reflectance of the surface, using Illuminants and detectors at specific angles such as 60 ° for accurate readings. Diagnostics and calibrating are performed automatically when powered on to ensure measurement accuracy.
Applications
Gloss measurement, mirror reflectance assessment, surface mass inspection, industrial manufacturing, quality control, field inspection, store application
Standards
ASTM C584、ASTM D523、ASTM D4039、ISO 2813、ISO 7668、JIS Z 8741、AS/NZS 1580.602.2
Steps
1. Boot: The instrument automatically performs diagnosis and calibration.
2. Select Measurement mode: such as Normal mode or Statistical mode.
3. Probe placed on the surface to be measured for measurement.
4. View readings: Glossiness values, statistics, etc. are displayed on the screen.
5. Store data: Measured values are automatically saved with date and timestamp.
6. Use HiLo alerts for pass/fail checks.
7. Transfer data via USB or wireless.
Notice
• Operating temperature in the range of 0~ 45 ℃ to avoid condensation.
• Check the calibrated condition before use to ensure accuracy.
• Avoid Severe Impacts and Use a Protective Holster to Enhance Durability.
• Keep Probe in stable contact with the surface during measurement.
• Regularly update the software to maintain instrument performance.
• Pay attention to batch management when storing data to avoid data loss.
