Overview

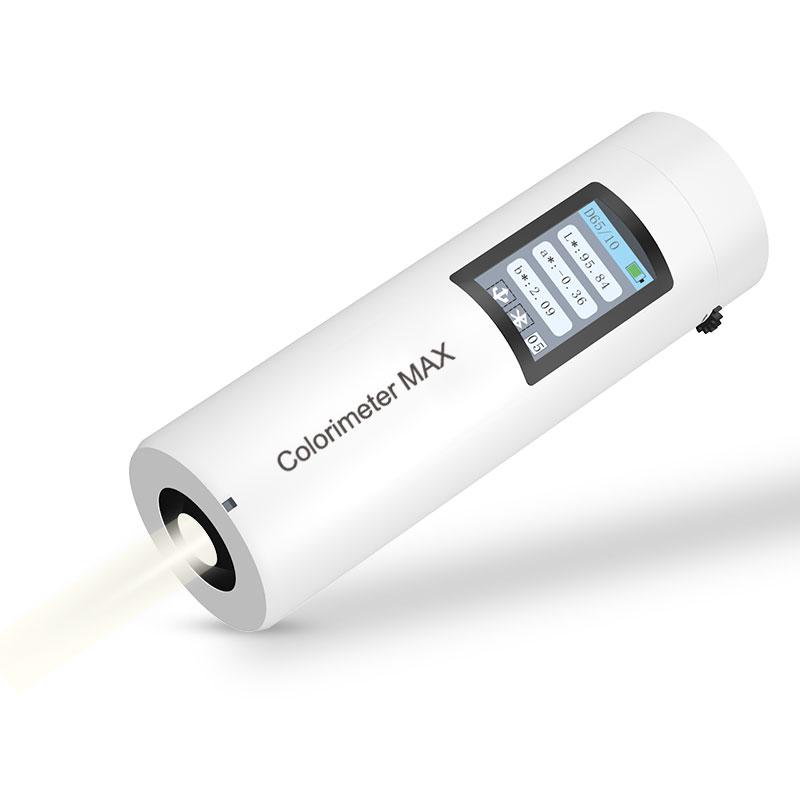

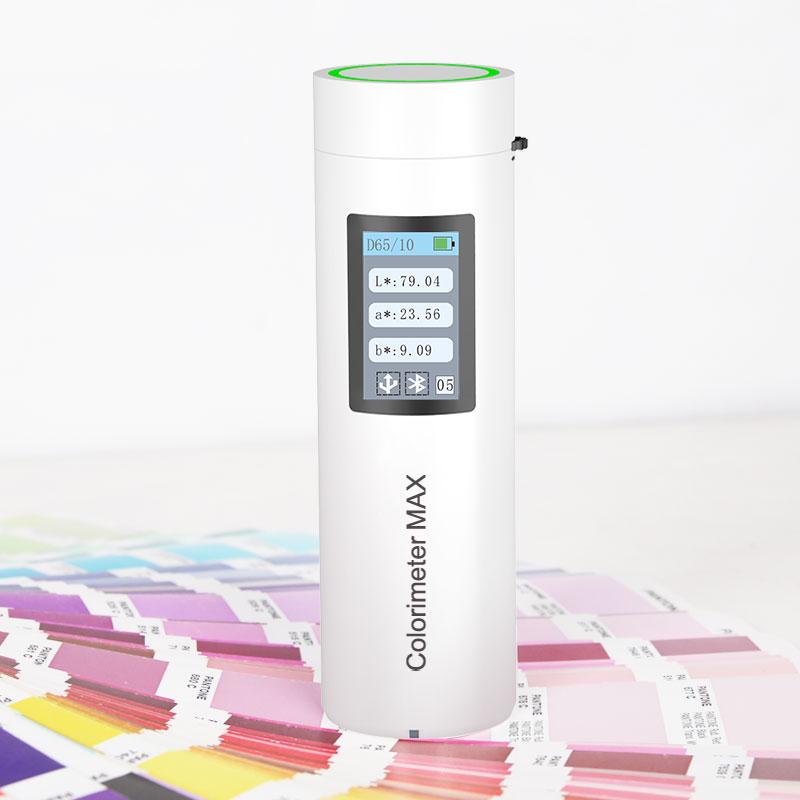

Color difference treasure Colorimeter MAX is a Portable color measurement device of 3nh brand. It is developed by combining an excellent color Sensor with a rich performance APP, WeChat Mini Program, etc. It is not only a spectroscopic color difference meter, but also a mobile phone color difference treasure. It is often used in color difference quality control in plastic electronics, paints Coating, Spinning & weaving clothing printing and dyeing, ceramics and other industries. Compact and easy to carry, after wireless connection with mobile phone devices, it can carry out Color measurement, Color Chart recognition and search and a variety of function expansion to capture color inspiration anytime and anywhere.
Features
1. Provide 30 + Color Indicators and 28 + Evaluation Illuminants, including CIE LAB, XYZ, Yxy and other Color Spaces and D65, A, C and other Observational Illuminants.

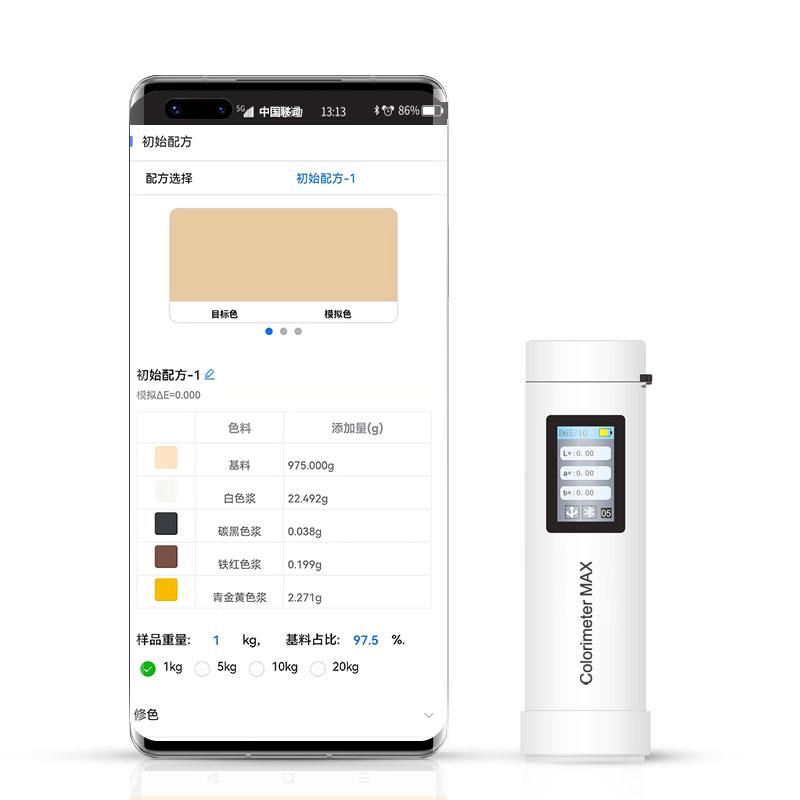

2. It is both Colorimeter and mobile phone color difference treasure. The single machine realizes all the functions of Colorimeter. Connect the mobile app or computer software to take into account the color difference treasure and Color management functions.

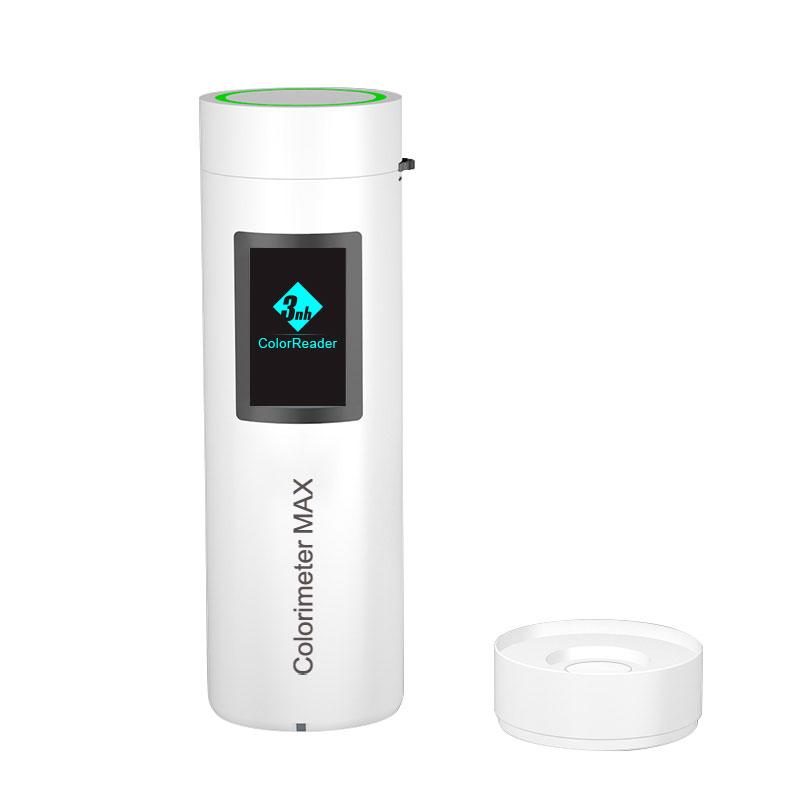

3. Non-contact automatic whiteboard calibration (limited to TOP special edition) to avoid dirt transfer during the measurement process and ensure the long-term accuracy of the whiteboard.
4. Each instrument has passed the National Measurement verification, and the measurement data Traceability is sent to the National Measurement Institute to ensure the credibility of the test data.
Principle
Color difference treasure adopts D/8 lighting mode (diffuse lighting, 8 ° direction reception, including specular reflected light SCI), using full light spectrum LED Illuminant and filter spectroscopy technology, through CMOS dual-path sensor in 400~ 700nm Wavelength range at 10nm intervals for measurement. The integrating sphere size is φ 20mm, the measurement diameter is φ 8mm, and the light-containing mode is SCI, which realizes the accurate calculation of Color space and Color difference formula.
Applications
Plastic electronics, paints Coatings, Spinning & weaving garment printing and dyeing, ceramics, beautiful seam color scheme
Standards
CIE No.15、GB/T 3978
Steps
1. Connect mobile app or computer software.
2. Perform automatic whiteboard verification (contactless or contactless, depending on the version).
3. Align the sample for measurement. Measurement time is about 1 second.
4. Check the measurement results, including chromatic value, color difference value, pass/fail, etc.
5. Data storage or Color simulation through APP extension function.
Notice
• Operating ambient temperature range is 0~ 40 ℃, relative humidity 0~ 85% (no condensation).
Storage ambient temperature range is -20~ 50 ℃, relative humidity 0~ 85% (no condensation).
• Altitude usage limit is less than 2000m.
• Non-contact automatic whiteboard calibration TOP special edition only.
• Ensure that the surface of the sample is clean during measurement to avoid affecting the accuracy.
