Overview
Color difference treasure Colorimeter series is a Portable color measurement device developed by 3nh using an excellent color Sensor combined with a performance-rich APP, WeChat Mini Program, etc. It integrates multi-functional "smart buttons" and professional non-contact automatic whiteboard verification technology. It is not only a spectral color difference meter, but also a mobile phone color difference treasure. It is often used in plastic electronics, paints Coating, Spinning & weaving clothing printing and dyeing, ceramics and other industries for color difference quality control. Color difference treasure is small and easy to carry. After wirelessly connecting with mobile devices, it can perform Color measurement, Color Chart recognition and search and a variety of function expansion to capture color inspiration anytime and anywhere. In addition, color difference treasure + color scheme cloud can also realize the function of Colorschemer studio, which is often used in industries such as beautiful seam color scheme.
Features
1. Multi-function smart buttons, which can independently complete measurement function settings or test data review, without connecting mobile phones and computers, taking into account various functions of color difference treasure and Color management.
2. Provide 30 + Color Indicators and 28 + Evaluation Illuminants, including CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, Hunter Lab, Bxy, DIN Lab99 and other Color Spaces, as well as D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30), U 35, NBF, ID50, ID65 and other observation Illuminants.

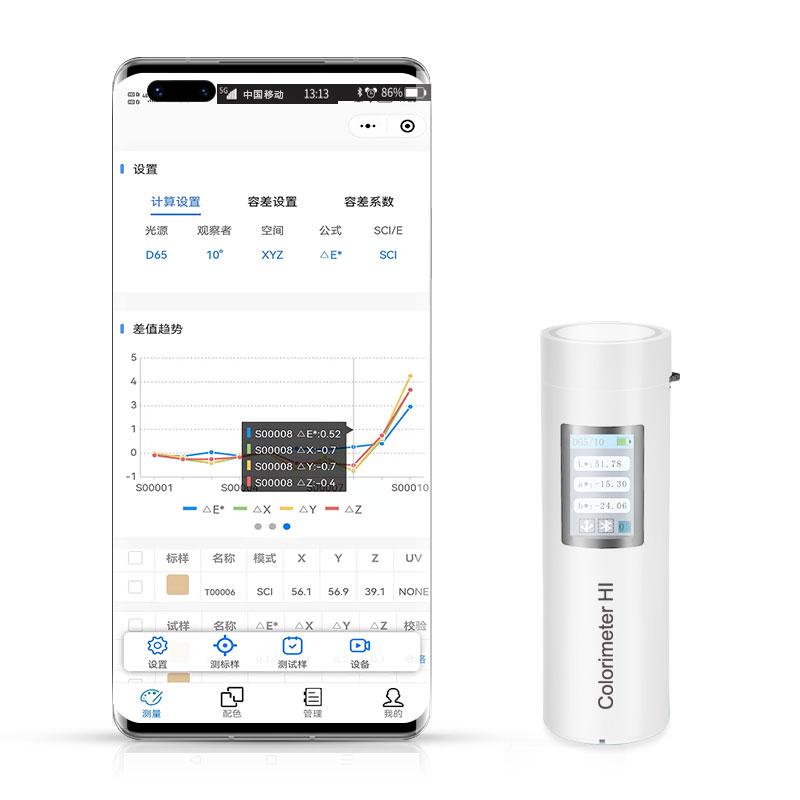

3. It is both a Colorimeter and a mobile phone color difference treasure. A single machine can realize all the functions of Colorimeter. Connecting to a mobile app or computer software can expand the color difference treasure and Color management functions.
4. Non-contact automatic whiteboard calibration (limited to TOP special edition), using professional non-contact automatic black and white board calibration technology to avoid the direct transfer of dirt to the whiteboard during the measurement process and ensure the long-term accuracy of the whiteboard.
5. National Measurement, each instrument is verified according to the measurement standards of the trusted verification department after leaving the factory, and the measurement data Traceability to the National Measurement Institute to ensure the credibility of the test data.
Principle
Color difference treasure adopts D/8 lighting mode (diffuse lighting, 8 ° direction reception, including specular reflected light SCI), uses full light spectrum LED Illuminant and filter spectroscopy technology, and conducts measurement at 10nm intervals in the 400~ 700nm Wavelength range through CMOS dual-path sensors. It supports a variety of Color spaces and Color difference formulas, and combines mobile apps or computer software to realize Color measurement, Data analysis and function expansion.
Applications
Plastic electronics, paints Coatings, Spinning & weaving garment printing and dyeing, ceramics, beautiful seam color scheme
Standards
CIE No.15、GB/T 3978
Steps
1. Use smart buttons to independently set the measurement function or check the test data without connecting external devices.
2. Connect mobile apps or computer software for Color measurement, Color Chart recognition and Data analysis.
3. Ensure measurement accuracy through non-contact automatic whiteboard calibration (limited to TOP special edition).
4. Use the color scheme cloud function to realize the Colorschemer studio operation.
Notice
• The contactless automatic whiteboard verification function is limited to TOP Special Edition.
• The operating environment needs to be within the range of 0~ 40 ° C, 0~ 85% RH (no condensation), and the altitude is less than 2000m.
Storage environment should be kept at -20~ 50 ℃, 0~ 85% RH (no condensation).
• Make sure that the instrument has passed the national Measurement verification before use to ensure the credibility of the data.
• Some functions such as Color simulation, reflectance, etc. need to be realized through the mobile app.
